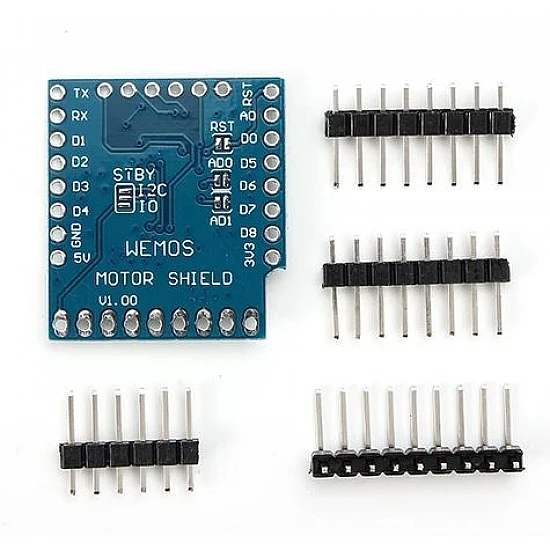

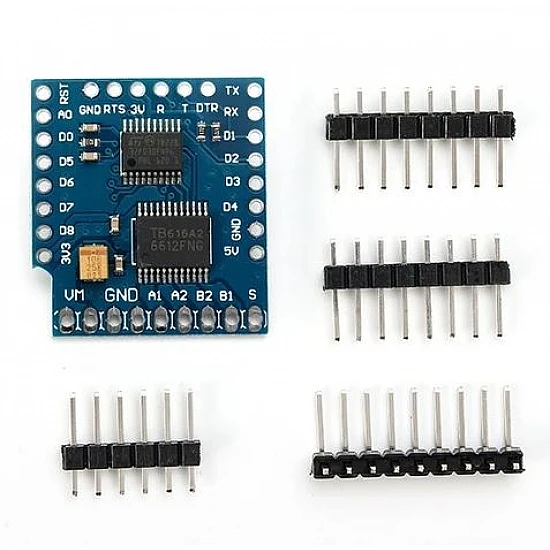

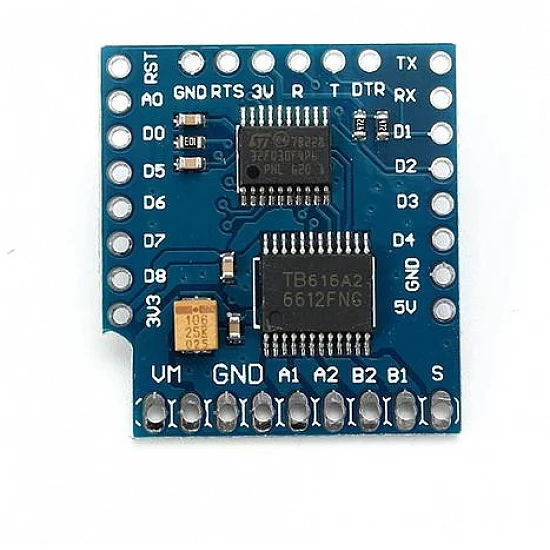

TB6612FNG Wemos D1 Mini I2C Dual Motor Driver Shield

TB6612FNG Wemos D1 Mini I2C Dual Motor Driver Shield
TB6612FNG Wemos D1 Mini I2C Dual Motor Driver Shield
TB6612FNG Wemos D1 Mini I2C Dual Motor Driver Shield
TB6612FNG Wemos D1 Mini I2C Dual Motor Driver Shield
TB6612FNG Wemos D1 Mini I2C Dual Motor Driver Shield
TB6612FNG Wemos D1 Mini I2C Dual Motor Driver Shield
TB6612FNG Wemos D1 Mini I2C Dual Motor Driver Shield
₹299

(inc GST)

  • Stock: In Stock
  • SKU: FR-04-519
7 Day Return
Get 7 Day Replacement/Refund on this product
Free shipping
Get free shipping on this product. Buy above ₹ 999 and get free shipping.
COD Available
Get this product with Cash at the time of Delivery
Support
Get best after-sale support From our Technical team with different Tutorials

Features:

1. Interface: I2C

2. Power supply voltage: VM = 15V max

3. Output current: Iout = 1.2A ( average ) / 3.2A ( peak )

4. Standby control to save power CW / CCW / short brake / stop motor control modes

5. VM: motor power supply+

6. GND: motor power supply-

7. A1: Motor A A2: Motor A B2: Motor B B1: Motor B

8. S: stand by control port ( In io mode )

9. Standby control mode-I2C mode: control TB6612's STBY with I2C protocol

10. IO mode: control TB6612's STBY with Spin

11. Shield reset mode: short: reset with d1 mini ( reset at power on or press d1 mini's reset button ); open: reset by DTR pin


Package Includes:

1 x TB6612FNG Wemos D1 Mini I2C Dual Motor Driver Shield.
