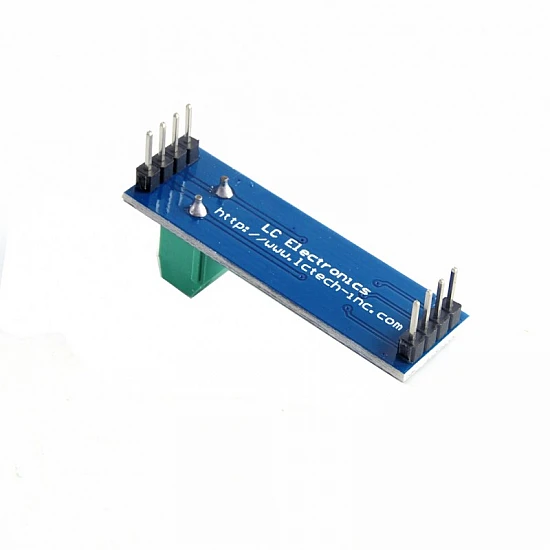

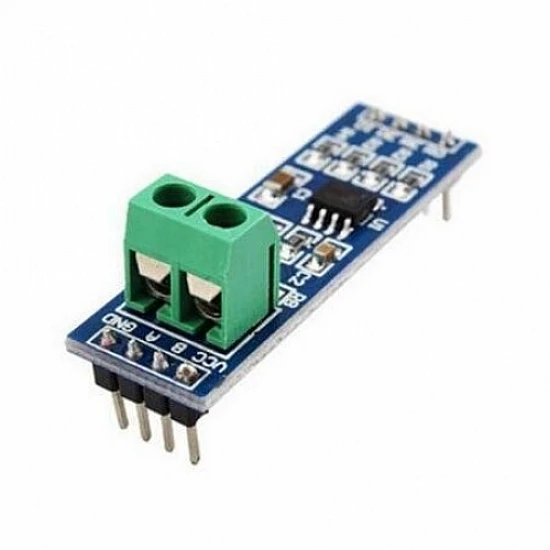

MAX485 TTL To RS485 Converter Module

The MAX485 TTL To RS485 Module converts the TTL signal to RS485 for long-range, high data rate error-prone differential communication. Digital communications networks implementing the EIA-485 standard can be used effectively over long distances and in electrically noisy environments.

Multiple receivers may be connected to such a network in a linear, multi-drop configuration. These characteristics make such networks useful in industrial environments and similar applications.

This converter lets you send and receive data using the RS485 network from the Arduino/microcontroller. Similar to Serial TTL and RS232 interfaces, the RS485 lets you transfer data between microcontrollers and devices but with extra features! RS485 is an industry-standard protocol for data transfer and provides numerous advantages.

It lets you transfer data between up to 32 devices, through the same data line over a cable length of up to 1.2km (4000ft) with a maximum data rate of 10Mbit/s. This converter is designed for office and industrial applications (non-isolated) and provides superior characteristics/features normally found only on more expensive units.

Features :

  • On-board MAX485 chip, low power consumption for RS-485 communication, slow-rate-limited transceiver.
  • Onboard then 5.08 (mm) pitch 2P terminal to facilitate RS-485 communication wiring.
  • Slow-rate limited transceiver.
  • All pins of the chip have been lead to can be controlled through the microcontroller.
  • Convenient RS-485 communication wiring.
  • Multiple Units can be connected to the same RS-485 bus wiring.
  • All Chip pins are brought out for proper controls.

Package Includes :

1 x MAX485 TTL To RS485 Converter Module
