TB6560 Stepper Motor Driver Controller

TB6560 Stepper Motor Driver Controller
TB6560 Stepper Motor Driver Controller
-28 %
TB6560 Stepper Motor Driver Controller
TB6560 Stepper Motor Driver Controller
TB6560 Stepper Motor Driver Controller

(inc GST)

  • Stock: In Stock
  • ₹4 FlyRobo Cashback.
  • SKU: FR-04-525
    7 or more ₹450
    30 or more ₹438

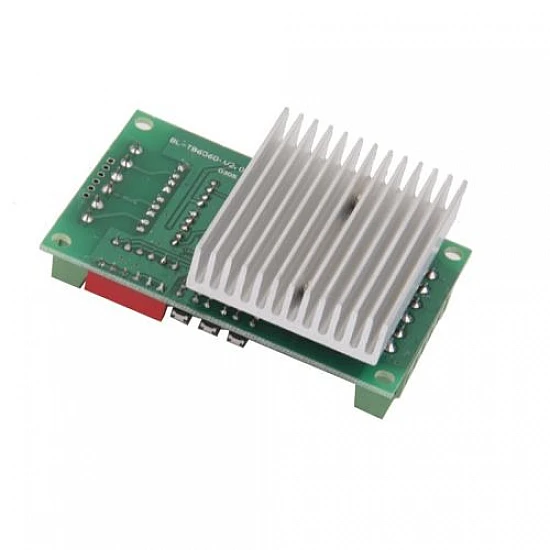

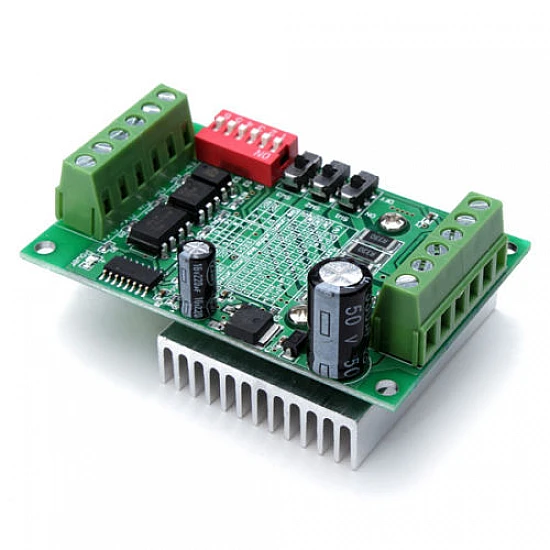

The TB6560 Driver Board 3A CNC Router Single 1 Axis Controller Stepper Motor driver board is for axis control with Input signal high-speed optocoupler isolation, the large heat sink to ensure good heat dissipation. Stepper motor driver is Semi-flow mode adjustable, semi-flow current adjustable, with a variety of semi-flow model and semi-flow current setting functions.

It is very easy to use requires no special instructions. The TB6560AHQ has a low voltage shutdown, overheating stop, and overcurrent protection circuit to ensure optimal performance. The TB6560 stepper motor control circuit is the most commonly used current circuit, which can control a 2 phase motor (10 – 35VDC) with a maximum output of 3A. The TB6560 stepper motor control circuit is used for stepper motor control, CNC machine applications, or precision mechanical systems.


Features :

  • Current level by adjustable to meet your various application requirements.
  • Automatic semi-flow adjustable.
  • Using 6N137 high-speed optical coupling to ensure high speed without losing a step.
  • Board printed setup instructions.
  • Using a thick fine-toothed radiator, good heat dissipation.
  • For 42,57,86 Stepper within 3A  2/4 -phase / 4 wire / 6 wire stepper motor, not fit for more than 3A stepper motor.
  • Excitation Mode: synchronizing, half step, 1/8 step, 1/16 step, a maximum of 16 segments.
  • Automatic half-decay.

Package Content:

1 x TB6560 Stepper Motor Driver Controller
