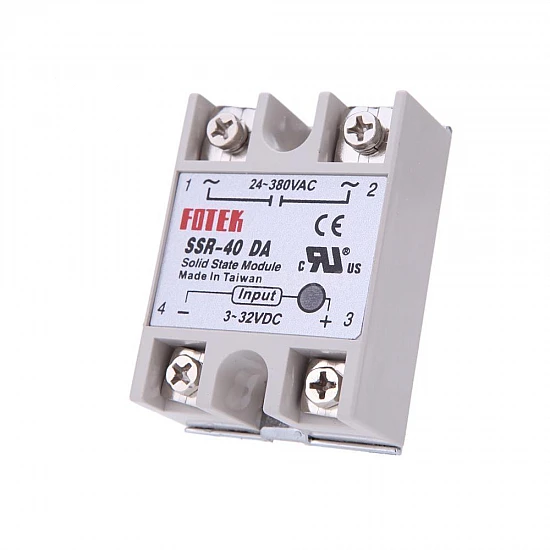

SSR-40DA Solid State Relay Module 3-32VDC/24-380VAC

SSR-40DA Solid State Relay Module 3-32VDC/24-380VAC

SSR-40DA Solid State Relay Module 3-32VDC/24-380VAC
₹448

(inc GST)

  • Stock: In Stock
  • With this product you will receive ₹4 FlyRobo Cashback.
  • SKU: FR-07-526

SSR-40DA Solid State Relay Module 3-32VDC/24-380VAC is a solid-state relay (SSR) that allows you to control high-current AC loads from lower voltage DC control circuitry. Solid-state relays have several advantages over mechanical relays.

The plastic protective cover makes it be a safer relay module.

One such advantage is that they can be switched by a much lower voltage and at a much lower current than most mechanical relays. Also, because there are no moving contacts, solid-state relays can be switched much faster and for much longer periods without wearing out.

This particular SSR can switch current loads of up to 40A with a 3-32V DC input and a zero cross trigger control method. Each one of these relays is equipped with four screw terminals (for use with ring or fork connectors) and a plastic cover that slides over the top of the relay to protect the terminals.

Features:

  • High Reliability
  • Long Service Life
  • Reduced electromagnetic interference
  • Compact size designed to offer users maximum simplicity.

Package Includes:

1 x SSR-40DA Solid State Relay Module

Technical
Model

SSR-40DA

Input Voltage

3-32VDC

Operating Temperature Range

-20°C to +85°C

Output Voltage

24-380VAC

Rated Current

40A

Length

62.5MM

Height

24MM

Width

45MM
