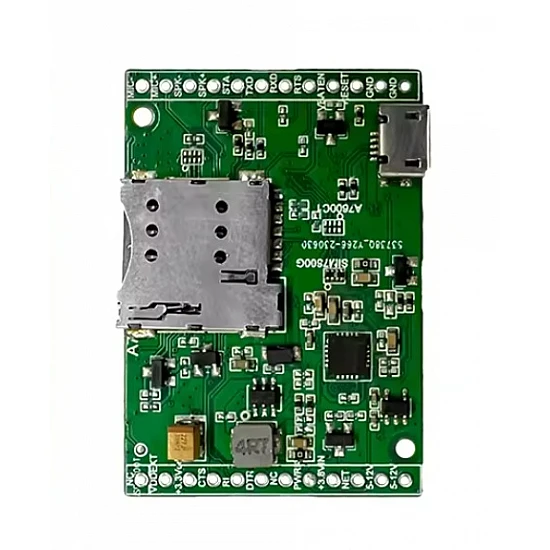

SIM7600CE-T 4G LTE Development Board - Full Network Support with GNSS

The SIM7600CE-T Development Board is a high-performance, full-network compatible 4G LTE solution designed to be a direct and superior replacement for the EC20 module. Built on the powerful SIM7600CE-T platform, this board supports a wide range of frequency bands including TDD-LTE, FDD-LTE, WCDMA, and GSM, ensuring reliable connectivity across all major carriers. A key highlight of this positioning version is the integrated multi-constellation GNSS receiver, which provides high-precision location tracking through GPS and BeiDou satellite systems. The board is engineered for rapid prototyping, featuring a plug-and-play USB interface, onboard SIM card slot, and standard headers for UART, GPIO, and ADC. Whether used for industrial IoT gateways, vehicle telematics, or remote monitoring systems, the SIM7600CE-T provides the stability and high-speed data rates (up to 150Mbps DL) required for professional-grade wireless applications.

Features:

• Full Network Compatibility: Supports major 4G, 3G, and 2G bands for seamless carrier switching and global reliability.
• High-Precision Positioning: Integrated GNSS supports both GPS and BeiDou for accurate location services.
• High-Speed Data: LTE Category 4 performance delivering up to 150Mbps downlink and 50Mbps uplink.
• EC20 Compatible: Designed as a drop-in replacement for EC20 series modules with enhanced performance.
• Rich Hardware Interfaces: Includes USB 2.0, UART, I2C, and GPIO headers for versatile sensor and MCU integration.
• Onboard Peripherals: Equipped with a standard SIM card slot, power indicator, and network status LEDs.
• Industrial Grade Design: Robust PCB layout optimized for heat dissipation and signal integrity in harsh environments.

Package Includes:

1 x SIM7600CE-T 4G Development Board
