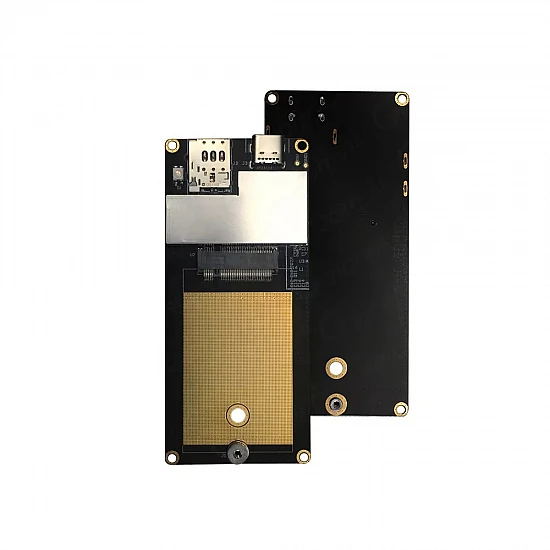

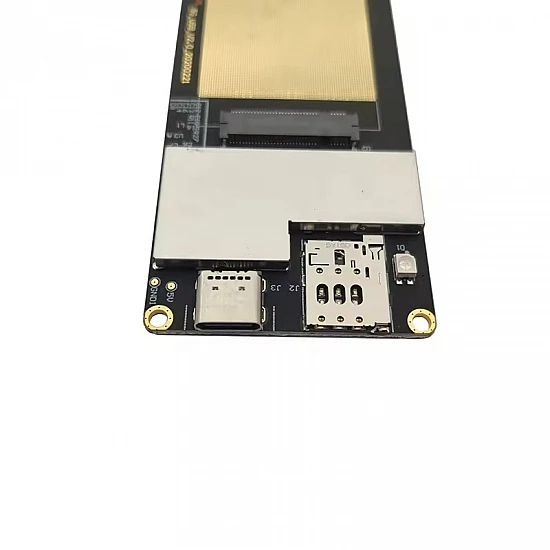

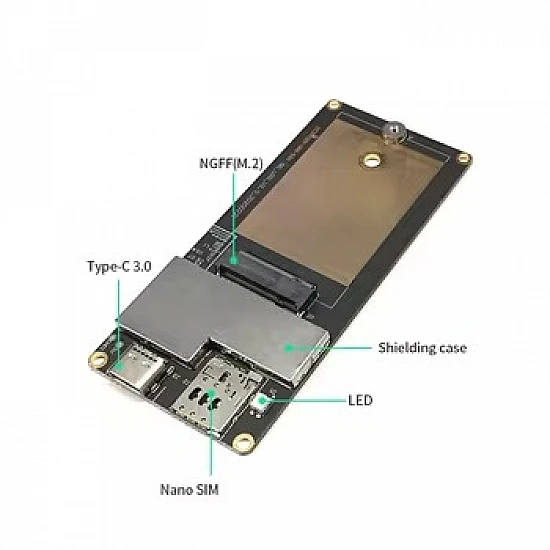

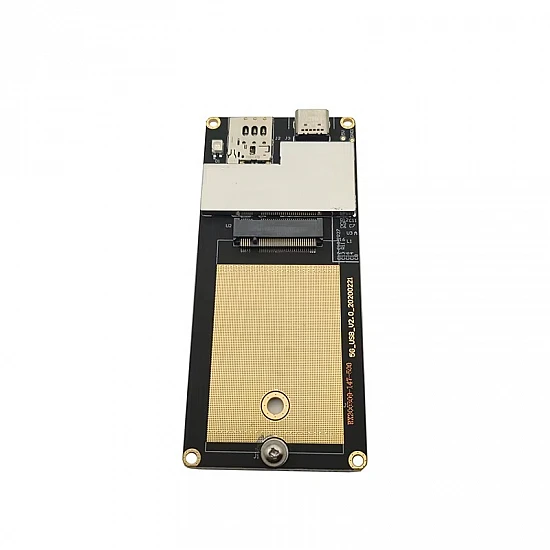

M.2 B-Key 4G/5G High-Speed Development Board for Quectel/Fibocom

The M.2 B-Key High-Speed Development Board is an industrial-grade communication platform designed for evaluating and deploying high-speed 4G LTE and 5G NR modules. This board is specifically engineered to support M.2 (NGFF) B-Key modules from leading manufacturers such as Quectel, Fibocom, MAG, and CTCI. By providing a stable electrical environment and high-speed data paths, it enables developers to harness the full potential of Gigabit LTE and 5G connectivity for IoT and networking projects.

Built with high-frequency PCB materials, the development board ensures minimal signal loss and maximum data integrity across cellular bands. It features integrated power management to handle the high current surges typical of 5G modules during active data transmission. This board is an essential tool for engineers developing industrial routers, smart gateways, and high-bandwidth mobile broadband solutions.

Features:

• Universal M.2 B-Key Interface: Optimized for 4G and 5G NR modules from Quectel, Fibocom, MAG, and CTCI.
• High-Speed Data Throughput: Supports high-bandwidth communication protocols for seamless 5G performance.
• Industrial Grade Power Circuit: Equipped with a high-current DC-DC converter to provide stable voltage to modules.
• Multi-Constellation Support: Designed to interface with module-based GNSS/GPS for precise positioning applications.
• Enhanced Signal Integrity: Professional PCB layout designed to reduce EMI and signal degradation in high-frequency bands.
• Comprehensive Interface Access: Provides easy access to essential signals for rapid prototyping and debugging.

Package Includes:

1 x M.2 B-Key High-Speed 4G/5G Development Board
