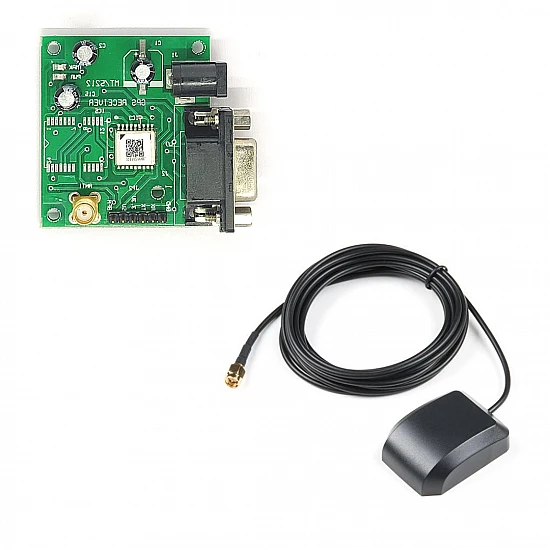

SIM28ML GPS Receiver Module with GPS antenna

SIM28ML GPS Receiver Module with GPS antenna
SIM28ML GPS Receiver Module with GPS antenna
SIM28ML GPS Receiver Module with GPS antenna
-17 % Out Of Stock
SIM28ML GPS Receiver Module with GPS antenna
SIM28ML GPS Receiver Module with GPS antenna
SIM28ML GPS Receiver Module with GPS antenna

SIM28ML GPS Receiver Module with GPS antenna
₹999
₹1,200

(inc GST)

  • Stock: Out Of Stock
  • With this product you will receive ₹10 FlyRobo Cashback.
  • SKU: FR-01-721
This GPS Receiver Modem is based on SIMCOM's Sim28M/Sim28ML GPS Module. SIM28ML is a stand-alone or A-GPS receiver with build-in LNA. it is designed with a high sensitivity navigation engine, which allows you to achieve the industry’s highest levels of sensitivity, accuracy, and Time-to-First-Fix (TTFF) with the lowest power consumption. Sim 28ML can track as low as -165 dBi signal even without network assistance.
SIM 28ML has excellent low power consumption characteristics. Sim 28ML supports various location and navigation applications including autonomous GPS, QZSS, SBAS ranging(WASS, EGNOS, GAGAN, MSAS), DGPS, and A-GPS.

Features:

  • Compact size
  • easy to use
  • Low Power consumption
  • High accuracy

Package Includes:

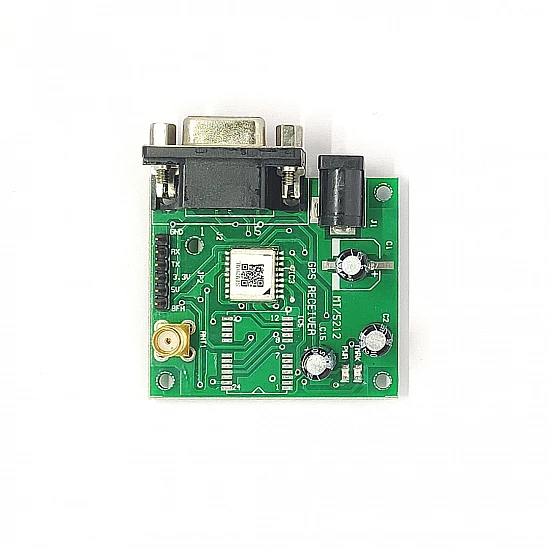

1 x SIM28ML GPS Receiver Module

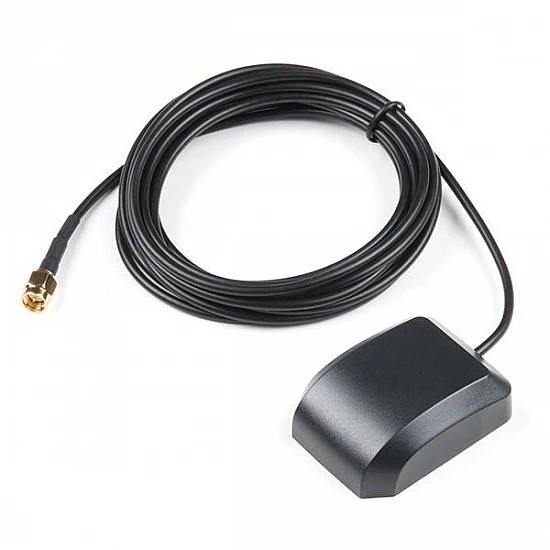

1 x GPS antenna with SMA male connector

Technical
Accuracy

Automatic Position 2.5m

Antenna Type

Active and Passive

Operating Temperature Range

-40ºC to 85ºC

PCB Size ( L x W )

5 x 5 cm

Power Consumption

Acquisition 17mA, Tracking 16mA, Back up 8uA

Receiver Type

22 tracking/66 acquisition channel GPS receiver GPS L1, C/A Code

Sensitivity

-165 dBm, Reacquisition -160 dBm, Cold Starts - 148 dBm
