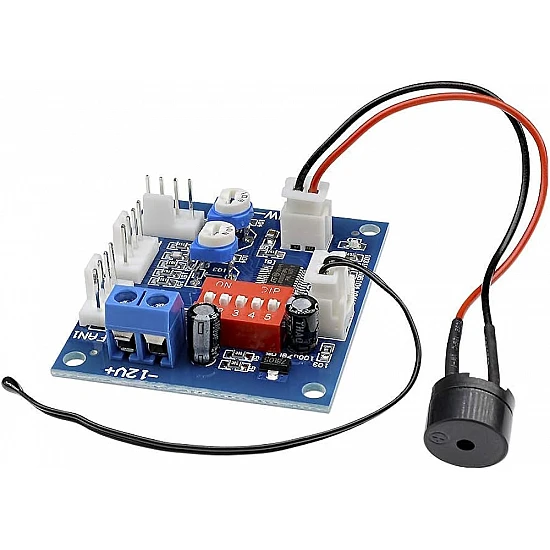

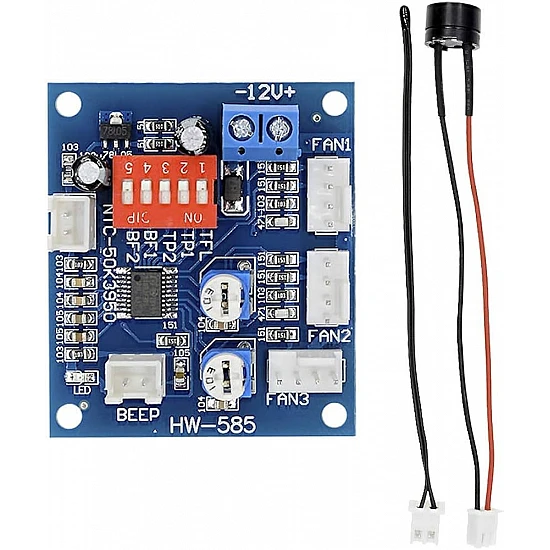

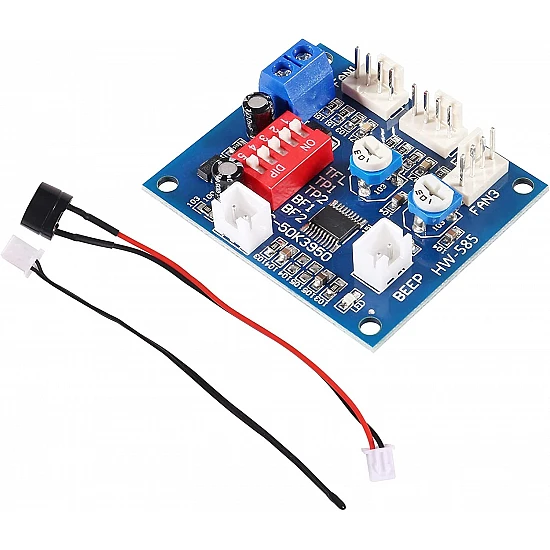

PWM 4 DC Fan Temperature Speed Controller Board

PWM 4 DC Fan Temperature Speed Controller Board
PWM 4 DC Fan Temperature Speed Controller Board
PWM 4 DC Fan Temperature Speed Controller Board
PWM 4 DC Fan Temperature Speed Controller Board
PWM 4 DC Fan Temperature Speed Controller Board
PWM 4 DC Fan Temperature Speed Controller Board
PWM 4 DC Fan Temperature Speed Controller Board
PWM 4 DC Fan Temperature Speed Controller Board
PWM 4 DC Fan Temperature Speed Controller Board
₹299

(inc GST)

  • Stock: In Stock
  • SKU: FR-05-980
    7 or more ₹287
    30 or more ₹280

The DC12V PWM DC Fan Speed Controller is a versatile device designed for controlling the speed of DC fans. Operating on a 12V power supply, this controller utilizes Pulse Width Modulation (PWM) to regulate fan speed. It includes a temperature probe for monitoring, and it can trigger a high-temperature alarm. This controller provides precise fan speed adjustments based on temperature changes, making it suitable for applications requiring temperature-sensitive cooling.

Features:

  • DC12V PWM DC Fan Speed Controller
  • Variable speed control using PWM
  • Monitors temperature with an included probe
  • High-temperature alarm functionality
  • Suitable for DC fans
  • Circuit load capacity: maximum current per output 5A, the bus currents up 9A
  • Output Range: The first channel 20% -100%, or 40% -100% (TFL = ON)
  • The second channel and the third channel are 10% -100%
  • Temperature probe parameters: 50KB = 3950
  • Stall alarm minimum speed: 700-800 rpm
  • Ideal for temperature-sensitive cooling applications.

Package Includes:

1x Temperature Speed Controller Board

1 x Temperature Probe

1 x Buzzer

Technical
Output capacity

40% -100% (TFL = ON)

Working Voltage

DC12V

Length

50mm

Height

14mm

Width

44mm
