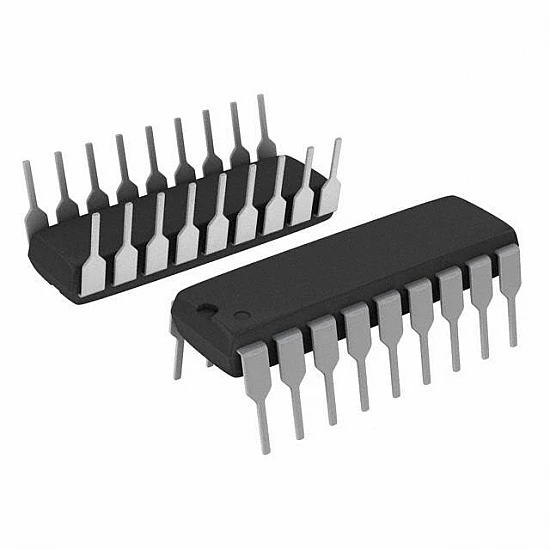

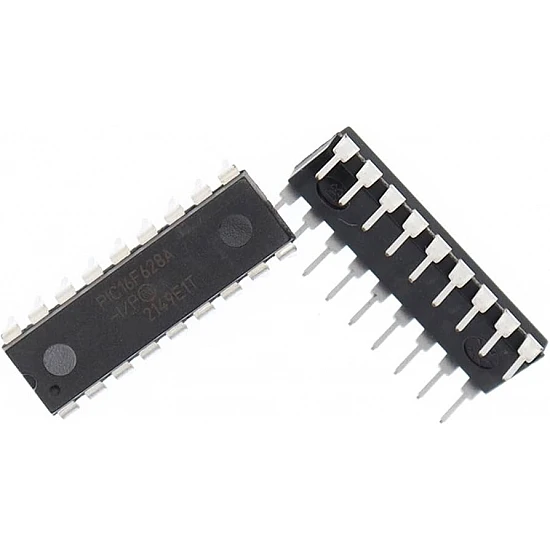

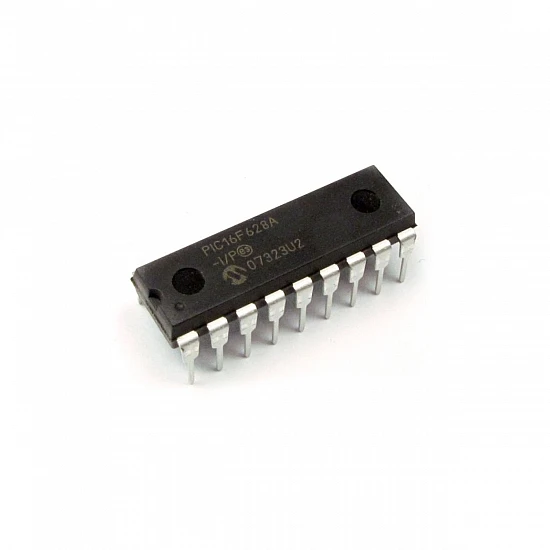

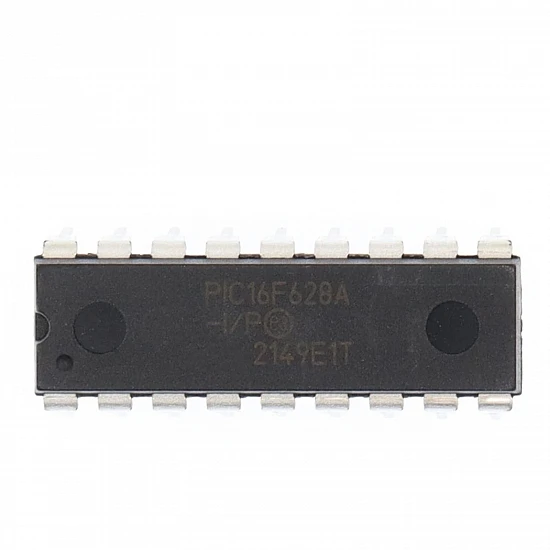

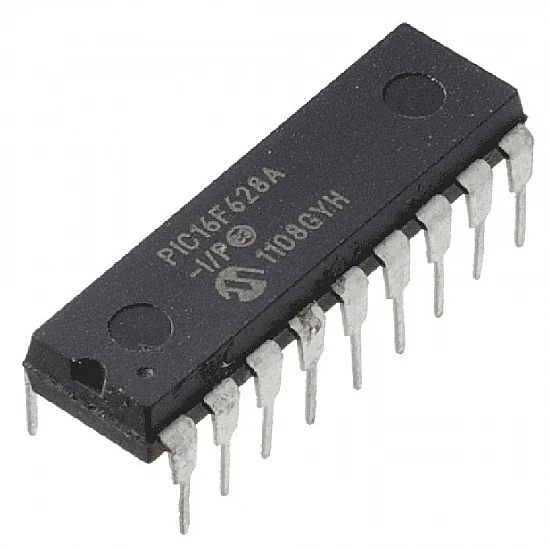

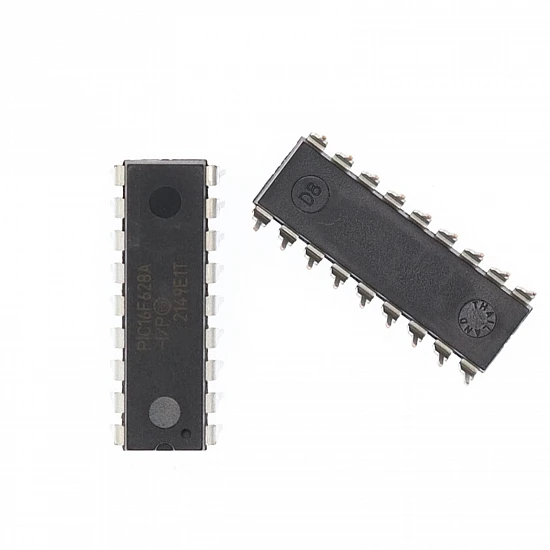

PIC16F628A-I/P 8-Bit CMOS Microcontroller Flash-Based DIP-18

The PIC16F628A-I/P is a high-performance, mid-range 8-bit RISC microcontroller from Microchip, designed for versatility and cost-effectiveness. Housed in a beginner-friendly 18-pin DIP package, it features 3.5 KB of Flash memory and 128 bytes of EEPROM, making it ideal for everything from remote controls to industrial sensors. This MCU stands out with its internal 4 MHz oscillator, allowing for simpler circuit designs by eliminating external timing components. With integrated peripherals like a USART for serial communication, two analog comparators, and a Capture/Compare/PWM (CCP) module, the PIC16F628A is a robust solution for embedded control, sensors integration, and low-cost consumer electronics projects.

Features:

• High-Performance RISC CPU: Efficient 35-instruction set with up to 20 MHz operating speed.
• Integrated Internal Oscillator: Factory-calibrated 4 MHz RC oscillator for reduced BOM cost.
• Robust Memory: 3.5 KB Flash, 224B RAM, and 128B EEPROM for persistent data storage.
• Versatile Peripherals: Includes USART, 3 timers, 2 comparators, and a PWM module.
• Low Power Consumption: Advanced CMOS technology with ultra-low standby current (100nA).
• DIP-18 Package: Convenient through-hole package for easy breadboarding and soldering.

Package Includes:

1 x PIC16F628A-I/P 16F628A DIP-18 8-bit microcontroller-MCU
