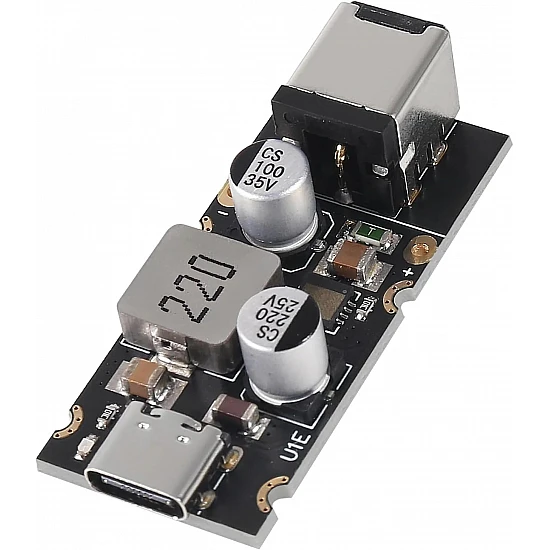

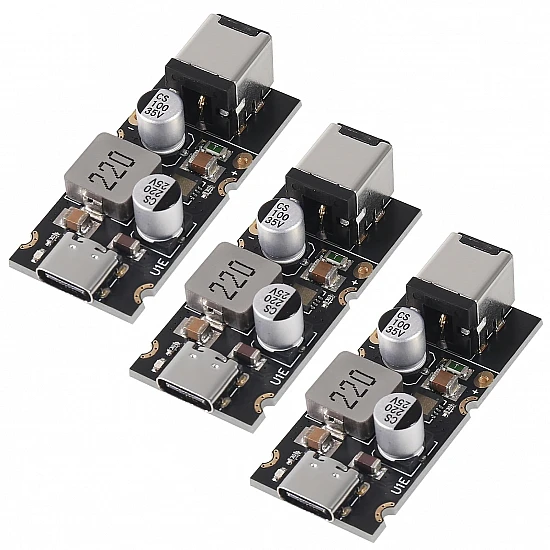

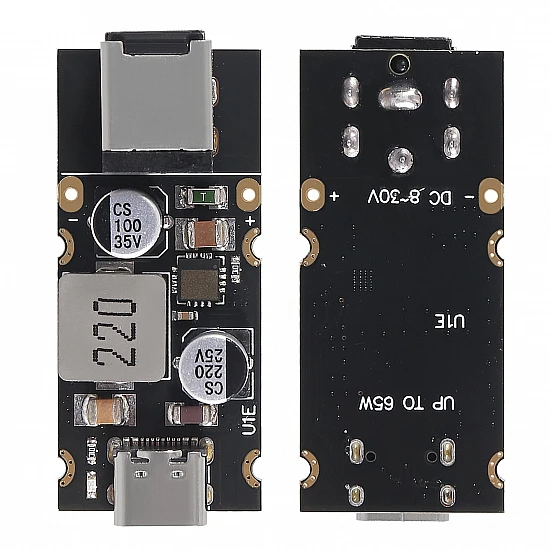

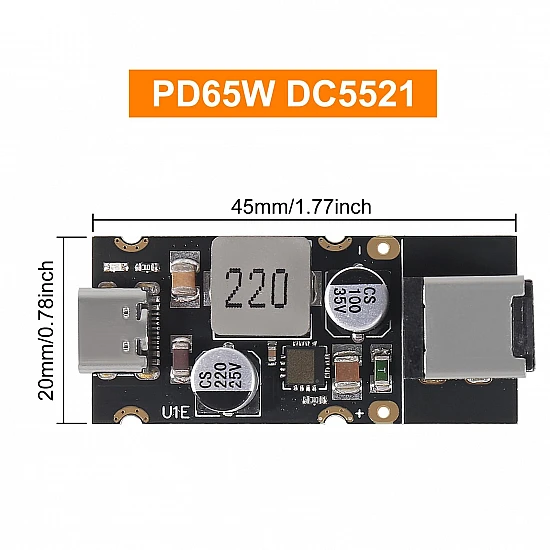

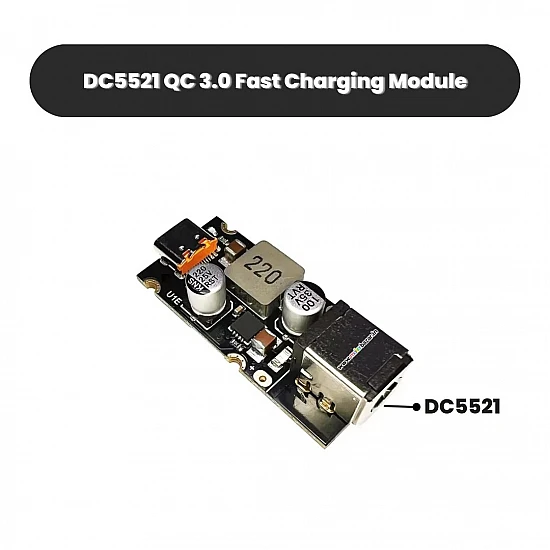

PD65W Fast Charging Module DC5521 Input Type-C PD3.1 PPS QC3.0 Huawei SCP

The PD65W Fast Charging Module is a compact and powerful DC-DC step-down converter designed for high-speed charging in DIY electronics and automotive applications. This module features a convenient DC5521 (5.5mm x 2.1mm) input jack, allowing it to be powered by standard 12V/24V power adapters, lead-acid batteries, or solar arrays. It supports a comprehensive range of fast-charging protocols, including the latest PD3.1 PPS for Apple devices, QC3.0, and Huawei SCP/FCP. With a maximum output of 65W and a high efficiency of up to 97%, it provides reliable power for laptops and smartphones with minimal thermal buildup. Built-in protection against over-voltage, short-circuits, and overheating ensures a safe charging experience for all your high-end devices.

Key Features:

• Standard DC5521 Input: Easily compatible with common 5.5x2.1mm DC power adapters and battery systems.
• 65W Power Delivery: Provides sufficient power to charge PD-enabled laptops, tablets, and smartphones.
• Advanced Multi-Protocol Support: Compatible with Apple PD3.1 PPS, QC3.0, Huawei SCP/FCP, and Samsung AFC.
• High-Efficiency Conversion: 92%~97% efficiency ensures maximum energy transfer and low heat generation.
• Programmable Power Supply (PPS): Supports intelligent voltage adjustment from 3.3V to 21V.
• Comprehensive Safety Suite: Features input over-voltage/under-voltage protection and output short-circuit safeguards.

Package Includes:

1 x PD65W Fast Charging Module DC5521 Input Type-C PD3.1 PPS QC3.0 Huawei SCP
