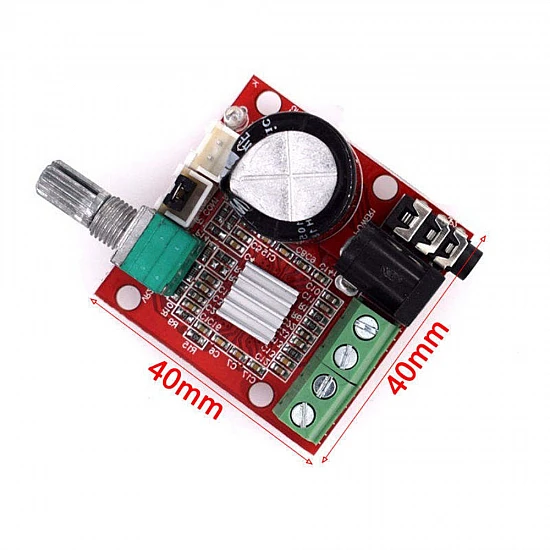

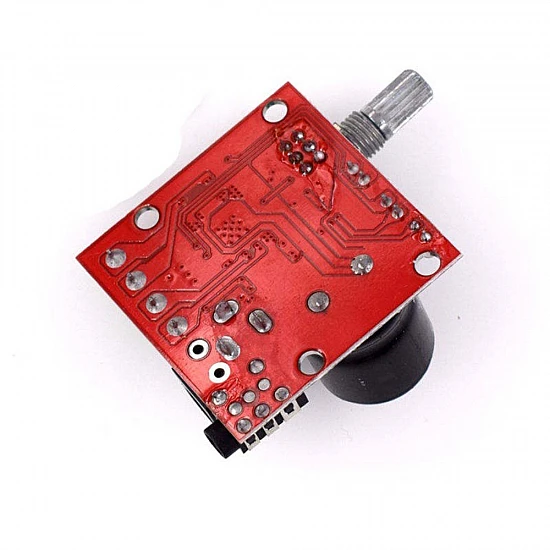

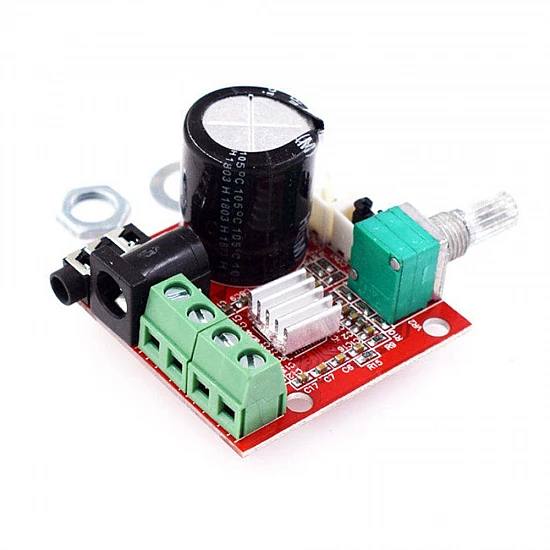

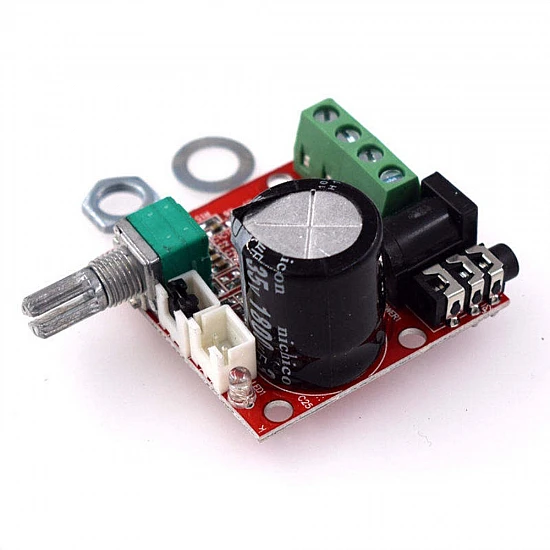

PAM8610 Stereo Class D Audio Amplifier Board 10W+10W

The PAM8610 Stereo Class D Audio Amplifier Board is a highly efficient, compact audio power amplifier capable of delivering 10W + 10W of high-fidelity stereo sound. Operating on a 12V DC input, this board utilizes advanced Class D architecture to achieve over 90% efficiency, significantly reducing heat generation and eliminating the need for bulky heatsinks. It serves as an excellent, modern, energy-efficient alternative to older TDA2030-based amplifier designs.

This mini amplifier module comes fully equipped with an onboard rotary potentiometer for smooth volume control, a standard 3.5mm stereo audio input jack, and a robust 2200µF power filter capacitor to ensure clean, noise-free audio reproduction. It is highly compatible with DIY Bluetooth speakers, portable media players, arcade machines, and custom home audio projects, interfacing seamlessly with MP3 decoders, smartphones, and PC audio outputs.

Features:

• High Efficiency Class D: Delivers over 90% efficiency, keeping the board cool during continuous operation.
• Dual Channel Stereo: Provides 10W + 10W output into 8 Ohm loads, or up to 15W + 15W into 4 Ohm loads.
• Onboard Volume Control: Features a high-quality rotary potentiometer for precise audio level adjustments.
• Clean Power Filtering: Equipped with a large 2200µF electrolytic capacitor to suppress power supply ripple and noise.
• Convenient Connectivity: Includes a standard 3.5mm audio jack for input, a DC barrel jack for power, and screw terminals for secure speaker connections.
• Built-in Protection: Integrated over-current, thermal, and short-circuit protection mechanisms ensure long-term reliability.

Package Includes:

1 x PAM8610 Stereo Class D Audio Amplifier Board 10W+10W
