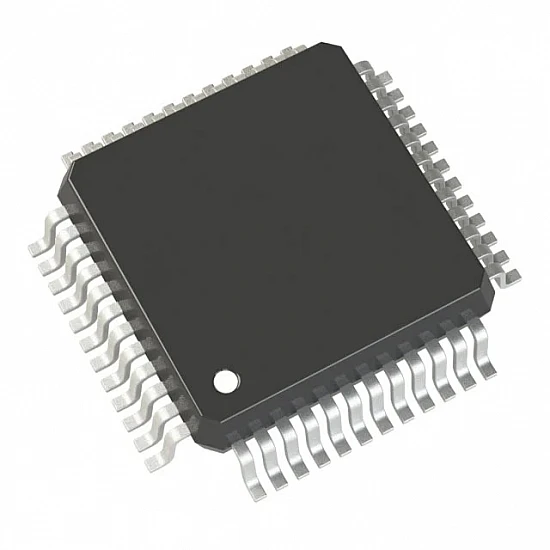

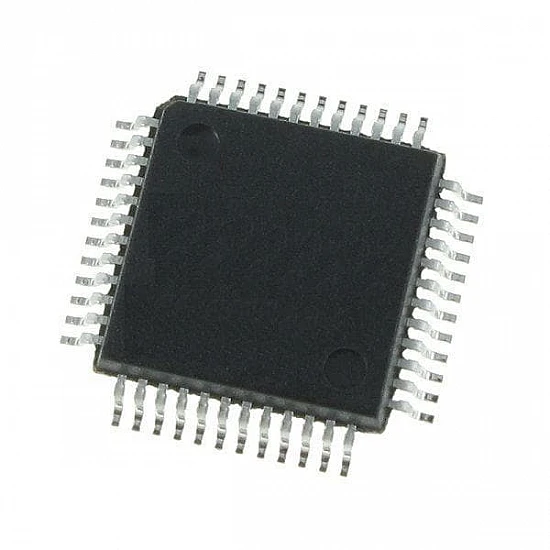

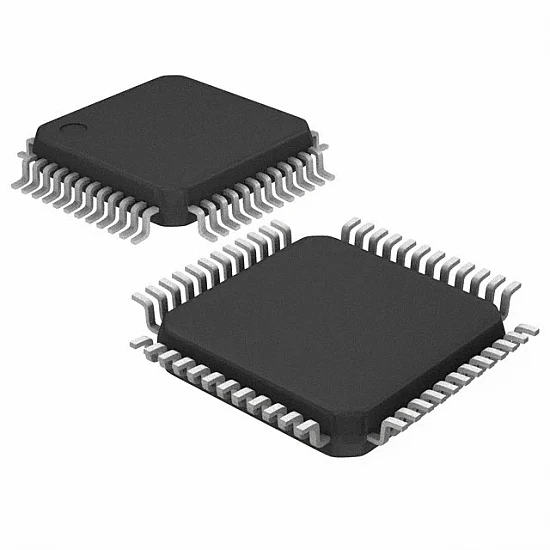

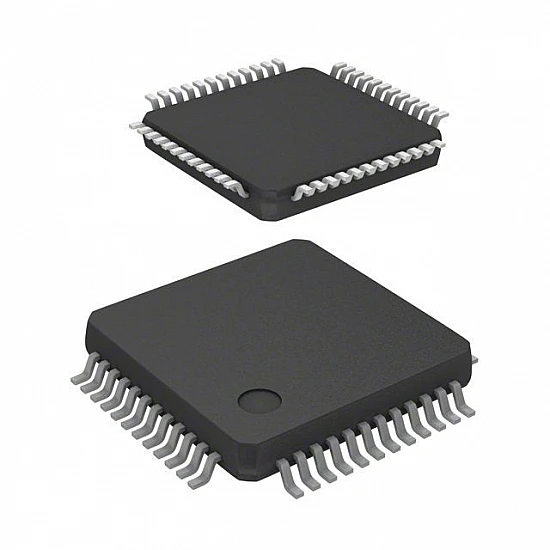

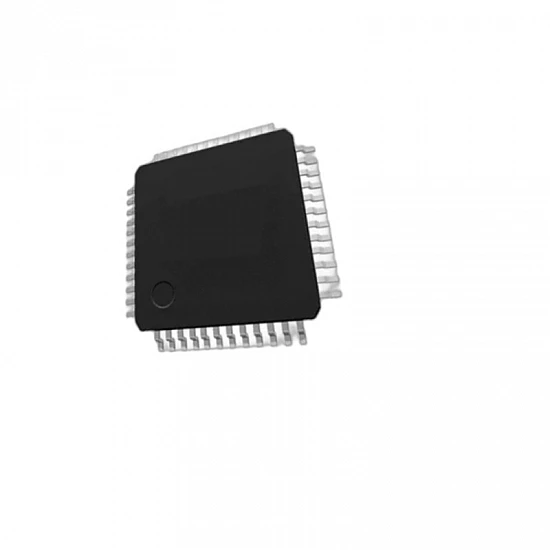

NUC029LAN NuMicro 32-Bit Arm Cortex-M0 MCU LQFP-48

The NUC029LAN is a powerful 32-bit microcontroller from Nuvoton's NuMicro series, featuring an Arm Cortex-M0 core designed for high-performance industrial control and cost-sensitive applications. Running at up to 50 MHz, it offers the processing efficiency of a 32-bit CPU at a price point comparable to traditional 8-bit microcontrollers. The chip is equipped with 64 KB of Flash memory, 4 KB of SRAM, and a rich set of peripherals including a 12-bit ADC, 8-channel PWM, and multiple communication interfaces (UART, SPI, I2C). Its wide operating voltage range of 2.5V to 5.5V and industrial-grade temperature rating make it a reliable choice for motor control, smart home devices, and LED lighting systems. The LQFP-48 package ensures a compact footprint while providing up to 40 flexible I/O pins for complex system integration.

Features:

• High-Speed Cortex-M0 Core: Delivers 50 MHz performance for efficient real-time control.
• Advanced Analog Integration: Features an 8-channel 12-bit ADC for precise sensor data acquisition.
• Robust Communication: Dual UART, SPI, and I2C interfaces for seamless multi-device connectivity.
• Flexible PWM Control: 8-channel 16-bit PWM outputs ideal for motor and LED intensity modulation.
• Wide Voltage Support: Operates reliably from 2.5V up to 5.5V, supporting both 3.3V and 5V logic.
• Industrial Durability: Rated for operation in harsh environments from -40°C to +85°C.

Package Includes:

1 x NUC029LAN NuMicro 32-Bit Arm Cortex-M0 MCU LQFP-48
