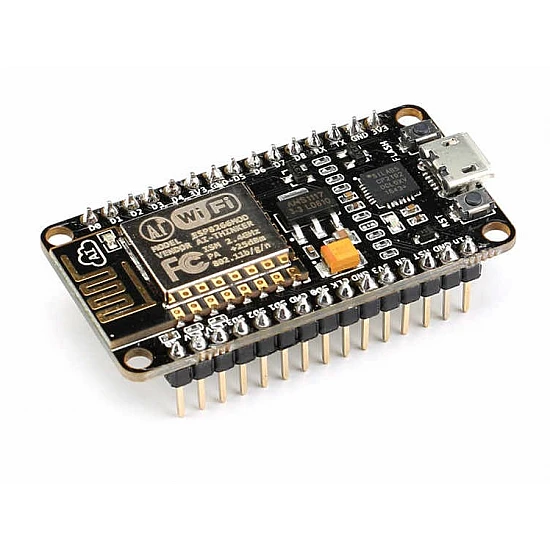

NodeMCU ESP-8266 WIFI Board CP2102. The Development Kit based on ESP8266 integrates GPIO, PWM, IIC, 1-Wire, and ADC all in one board. Power your development in the fastest way combines with NodeMCU Firmware! R2 version had CP2102 USB-TTL instead, larger current support, the slim board can put on a breadboard.
Specifications and Features:
- CP2102 Serial / USB Chip
- 11 b/g/n Wi-Fi Direct (P2P), soft-AP
- Integrated TCP/IP protocol stack
- 4MB Flash Memory
- +19.5dBm output power in 802.11b mode
- ESP-12E Processor
- Easy access to the GPIO pins for easy prototyping
- Integrated low power 32-bit CPU
- SDIO 1.1 / 2.0, SPI, UART
- Integrated TR switch, balun, LNA, power amplifier, and matching network
- Integrated PLLs, regulators, DCXO, and power management units
- Embeds logic level converter circuits
- Easy to use breadboard friendly form factor
- Voltage Regulator / Converter, excellent DC to DC conversion, super-efficient
- USB: Micro USB port for power, programming, and debugging
- Power: 5V via micro USB port
- Misc: Reset and Flash buttons
- Headers: 2x 2.54mm 15-pin header with access to GPIOs, SPI, UART, ADC, and power pins
- Dimensions – 49 x 24.5 x 13mm
1 x NodeMcu ESP8266 CP2102 WIFI Development Board.
19.5 dBm in 802.11b mode
SDIO 1.1/2.0, SPI, UART
