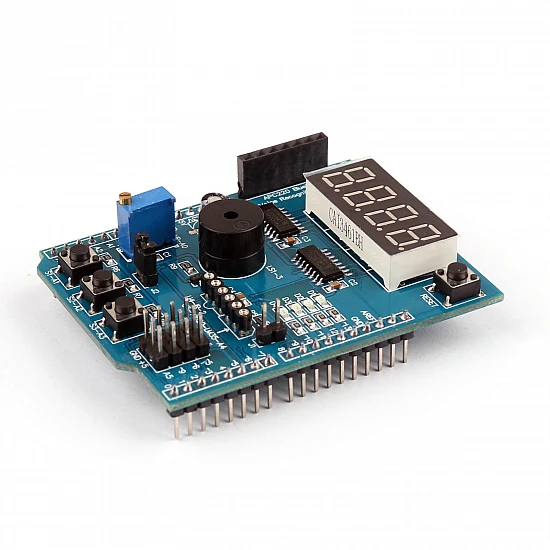

Multifunction Shield For Arduino Uno/Leonardo

Multifunction Shield For Arduino Uno/Leonardo

Multifunction Shield For Arduino Uno/Leonardo
₹289

(inc GST)

  • Stock: In Stock
  • With this product you will receive ₹2 FlyRobo Cashback.
  • SKU: FR-01-460

This Multifunction Shield For Arduino Uno / Leonardo is all in one shield for beginner users of the Arduino Development Board.This Arduino Uno and Leonardo compatible multifunction experimenter shield (HCARDU0085) has a large range of features which makes it ideal for beginners who just want to experiment and learn, or just as a general-purpose shield for more advanced uses.

Besides the feature-rich range of components fitted to the shield, there is also a range of expansion headers for the convenient interfacing of external modules and components. The shield includes R3 type headers for easy connection to your Arduino board. If you have a pre R3 design Arduino, please check for compatibility before purchase.


Features:

  • 10K adjustable precision potentiometer
  • 3 x Independent push buttons.
  • 4 digit 7-segment LED display module driven by two serial 74HC595’s.
  • 4 x surface mount LED’s in a parallel configuration.
  • LM35 temperature sensor interface.
  • Piezo buzzer.
  • DS18B20 temperature sensor interface.
  • Serial interface header for convenient connection to serial modules such as Bluetooth, a wireless interface, voice module, a voice recognition module, etc.
  • Infrared receiver interface.

Package Includes:

1 x Multifunction Shield.

Technical
Input Voltage

5V

Length

6.6 cm

Height

2.1 cm

Width

5.35 cm
