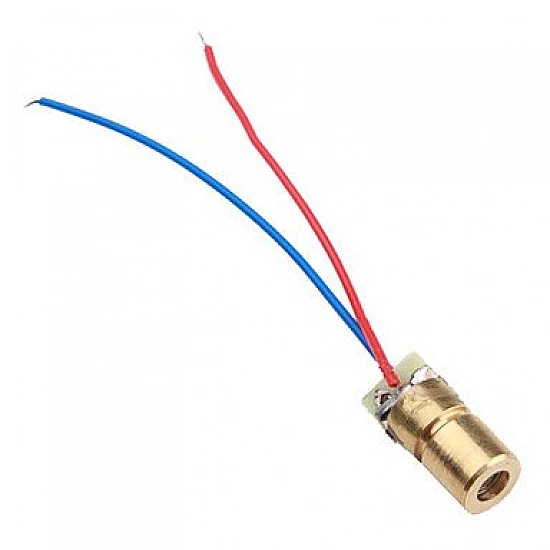

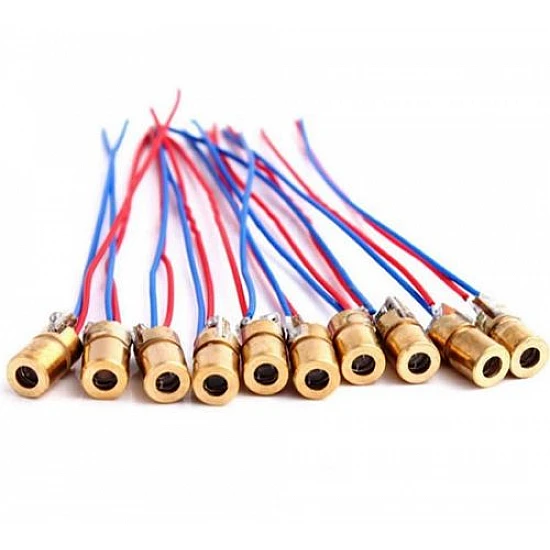

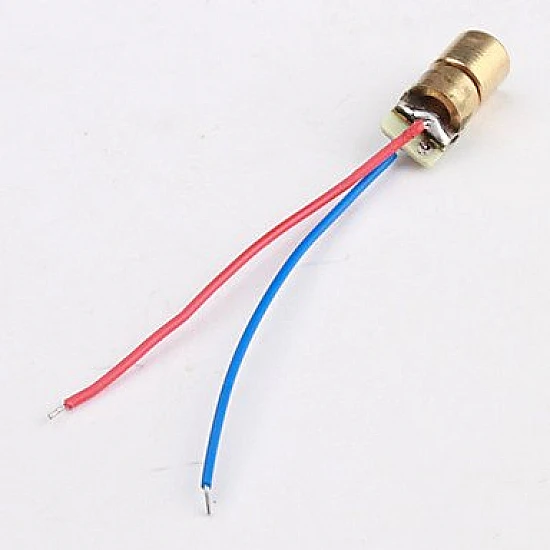

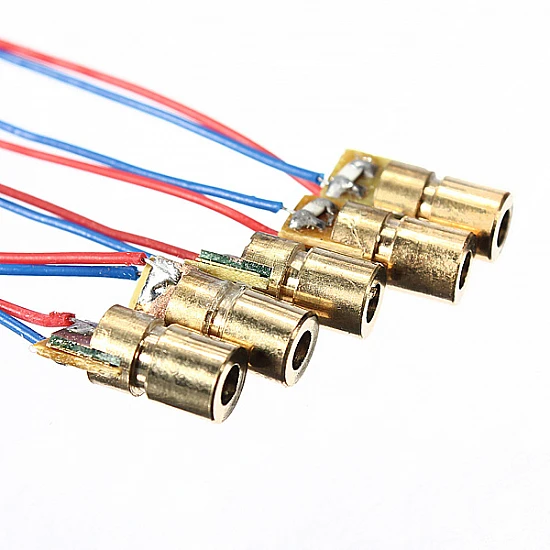

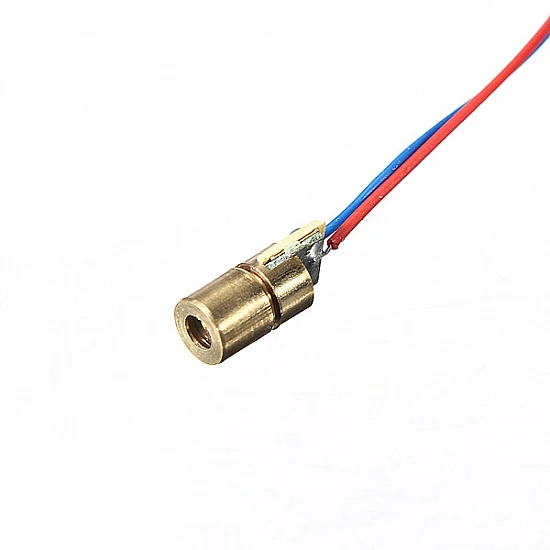

Mini 650nm 6mm 5mW Laser Dot Diode Module

Mini 650nm 6mm 5mW Laser Dot Diode Module
Mini 650nm 6mm 5mW Laser Dot Diode Module
Mini 650nm 6mm 5mW Laser Dot Diode Module
Mini 650nm 6mm 5mW Laser Dot Diode Module
Mini 650nm 6mm 5mW Laser Dot Diode Module
Mini 650nm 6mm 5mW Laser Dot Diode Module
Mini 650nm 6mm 5mW Laser Dot Diode Module
Mini 650nm 6mm 5mW Laser Dot Diode Module
Mini 650nm 6mm 5mW Laser Dot Diode Module
Mini 650nm 6mm 5mW Laser Dot Diode Module

Mini 650nm 6mm 5mW Laser Dot Diode Module
0
Based on 0 reviews. - Write a review
 / Ask a Question
₹59

(inc GST)

  • Stock: In Stock
  • SKU: FR-01-713
    10 or more ₹51
    50 or more ₹47
FlyRobo FlyRobo
Add to Cart
Buy Now
Add to Wish List Found Batter Price?
7 Day Return
Replacement/Refund on this product
Free shipping
Get free shipping above ₹ 499
COD Available
Pay Cash at the time of Delivery
Support
Get After-sale Technical Support

Mini 650nm 6mm 5mW Laser Dot Diode Module which is made of copper plastic. Can be driven from 3V to 5V DC so they’re great for your embedded electronics project, robot, or other application.

You require a 3 to 5VDC power supply which you'd get from two standard AAA or AA batteries. These diodes are 5mW output and have a safety label marked on them. It is suitable for 3V 5mW standard, with 6mm outside diameter, can be used to connect diode tubes for multiple uses.

Features:

  • Small size
  • Cost-effective
  • Standard 5V operating voltage

Package included:

1x Mini 650nm 6mm 5mW Laser Dot Diode Module

Technical
Diameter

0.6 cm
Laser Output Type

Dot Facula (continuous output)
Operating Temperature Range

-10 to 50 °C
Operating Voltage

3-5 V
Output Power

5mW
Working Current

<40mA
Working Life

More than 1000 hours
Material

copper plastic
Length

1 cm
