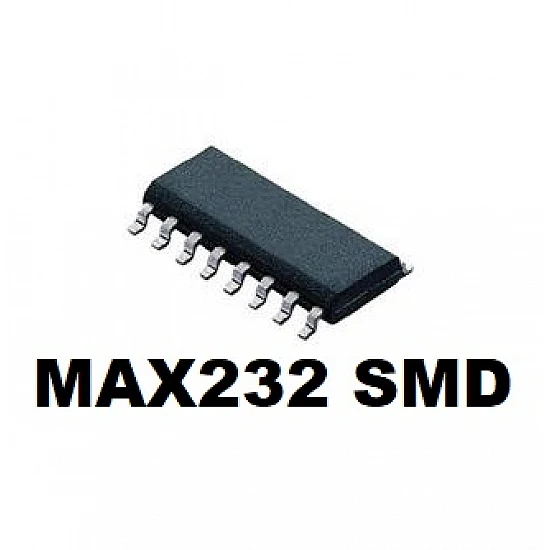

MAX232CSE SOIC-Narrow-16 RS-232 Interface IC

The MAX232 device is a dual driver/receiver that includes a capacitive voltage generator to supply EIA-232 voltage levels from a single 5-V supply. Each receiver converts EIA-232 inputs to 5-V TTL/CMOS levels. These receivers have a typical threshold of 1.3 V and a typical hysteresis of 0.5 V and can accept ±30-V inputs. Each driver converts TTL/CMOS input levels into EIA-232 levels. The driver, receiver, and voltage-generator functions are available as cells in the Texas Instruments Lin ASIC library. The MAX232 is characterized for operation from 0°C to 70°C. The MAX232I is characterized for operation from –40°.

Features:

• Operates With Single 5-V Power Supply
• LinBiCMOS Process Technology
• Two Drivers and Two Receivers
• ±30-V Input Levels
• Low Supply Current . . . 8 mA Typical
• Meets or Exceeds TIA/EIA-232-F and ITURecommendation V.28
• Designed to be Interchangeable WithMaxim MAX232
• ESD Protection Exceeds JESD 22– 2000-V Human-Body Model (A114-A)
• Applications: TIA/EIA-232-F, Battery-Powered Systems Terminals, Modems.

Datasheet: Download

Package Content:

1 x MAX232CSE IC
