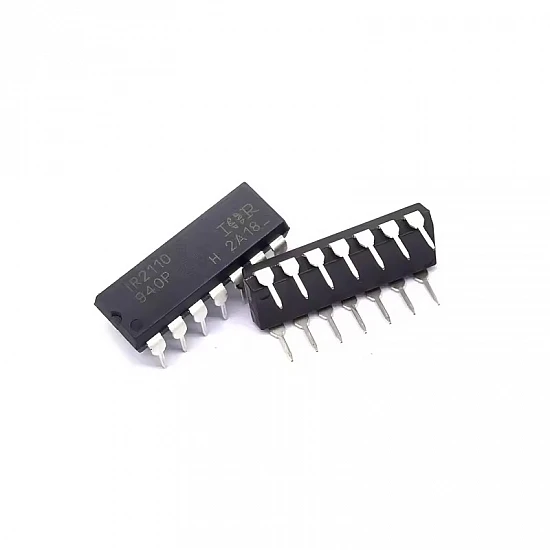

IR2110PBF IR2110 500V High and Low Side MOSFET Driver IC DIP-14

The IR2110PBF is a high-voltage, high-speed power MOSFET and IGBT driver IC designed for full-bridge and half-bridge applications. It features independent high and low side referenced output channels, making it ideal for controlling power transistors in high-voltage circuits. With a maximum voltage of 500V and output current up to 2A, the IR2110 ensures efficient switching and high noise immunity, suitable for motor control, SMPS, UPS, and inverter circuits.

Features:

• High-voltage (500V) high-side and low-side driver
• Floating channel designed for bootstrap operation
• Outputs can source and sink up to 2A peak current
• Under-voltage lockout protection for both high and low side
• Logic input compatible with standard CMOS or LSTTL outputs
• High noise immunity with dV/dt immunity of over 50V/ns
• Separate logic and power ground connections
• Available in DIP-14 package for easy prototyping and integration

Package Includes:

1 x IR2110PBF IR2110 500V Full-Bridge Driver IC (DIP-14)
