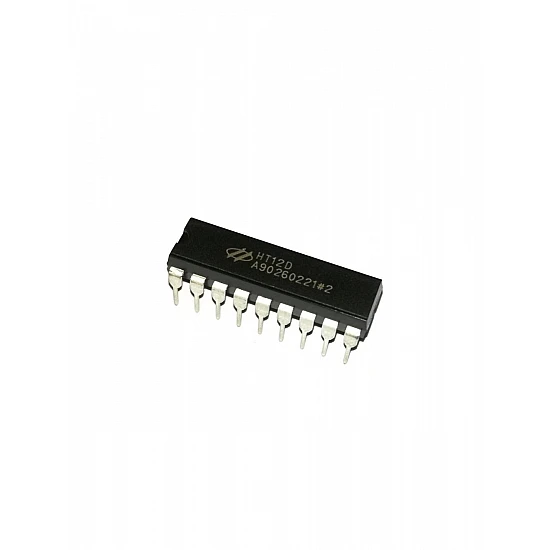

HT12D RF Decoder IC

HT12D RF Decoder IC
HT12D RF Decoder IC
₹49

(inc GST)

  • Stock: In Stock
  • SKU: FR-05-614
7 Day Return
Get 7 Day Replacement/Refund on this product
Free shipping
Get free shipping on this product. Buy above ₹ 999 and get free shipping.
COD Available
Get this product with Cash at the time of Delivery
Support
Get best after-sale support From our Technical team with different Tutorials

HT12D is a decoder IC for remote control applications, commonly in Radiofrequency (RF) wireless applications, and it is 2 series decoders. We can transmit 12 bits of parallel data serially by using HT12E and HT12D. HT12D is a simple Decoder IC that converts serial data to its input through RF to 12 bits parallel data in which there are 4 data bits and 8 address bits. These 8 bits addresses are security code for 4 bits data, which means we can provide 8 bits security code for 4 bits data and can use multiple receivers by using the same transmitter.

Features:

  • Operating voltage: 2.4V~12V
  • Low power and high noise immunity CMOS technology
  • Low standby current
  • Capable of decoding 12 bits of information
  • Binary address setting
  • Received codes are checked 3 times
  • Address/Data number combination
  • HT12D: 8 address bits and 4 data bits
  • The built-in oscillator needs only a 5% resistor
  • Valid transmission indicator
  • Easy interface with an RF or an infrared transmission medium
  • Minimal external components
  • Pair with Holteks212 series of encoders
  • 18-pin DIP

Applications:

  • Burglar alarm system
  • Smoke and fire alarm system
  • Garage door controllers
  • Car door controllers
  • Car alarm system
  • Security system
  • Cordless telephones
  • Other remote control systems

Package Includes:

1 x HT12D RF Decoder IC

Write a review

Note: HTML is not translated!
Bad Good
Technical
IC Chip

HT12D

Number of Pins

18

Operating Voltage

2.4V~12V

Pin Type

DIP

Length

23mm

Height

3mm

Width

6mm
