Flex Sensor 2.2″ Bend Sensor for Hand Gesture Recognition

Flex Sensor 2.2″ Bend Sensor for Hand Gesture Recognition
-38 %
Flex Sensor 2.2″ Bend Sensor for Hand Gesture Recognition
₹276
₹448

(inc GST)

  • Stock: In Stock
  • ₹2 FlyRobo Cashback.
  • SKU: FR-01-814
    7 or more ₹257
    30 or more ₹247

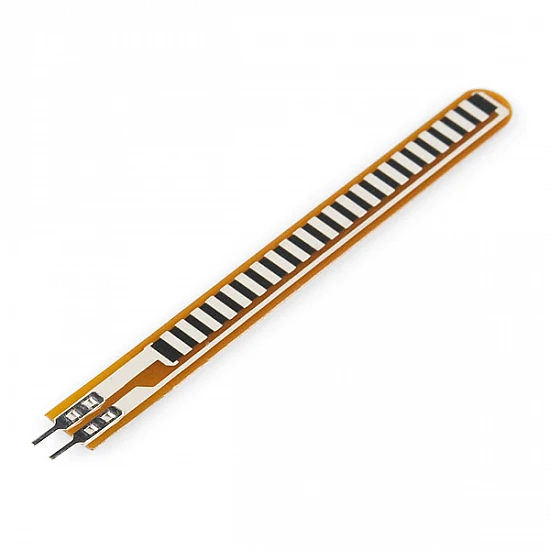

A simple Flex Sensor 2.2″ – Bend Sensor with a length of 2.2″ which bends and flexes with a physical device. As the sensor is flex, the resistance across the sensor increases. A connector is 0.1″ spaced and breadboard friendly.  The flex sensor is a bend detecting sensor that has got numerous applications in Robotics, Gaming (Virtual Motion), Medical Devices, Computer Peripherals, Musical Instruments, Physical Therapy... The resistance of these sensors changes in accordance with the bend, which can be measured using any microcontroller.

Note: The base of the sensor is sensitive to bending and may get damaged. Make sure that you bend only the sensing area.

Features:

  • Bends and Flexes physically with the motion device.
  • Simple Construction.

Applications:

  • Angle Displacement Measurement.
  • Robotics Applications.
  • Gaming (Virtual Motion).
  • Medical Devices.
  • Computer Peripherals.
  • Musical Instruments.
  • Physical Therapy.
  • Bends and Flexes physically with the motion device.

Package Includes:

1 x Flex Sensor 2.2″ Bend Sensor.

Technical
Bend Resistance

minimum 20K Ohms ±30% (@ 180° pinch bend)

Flat Resistance

10K Ohms ±30%

Flex length

2.2 inch (5.6 cm)

Power

0.5 Watts continuous; 1 Watt Peak.

Length

7 cm
