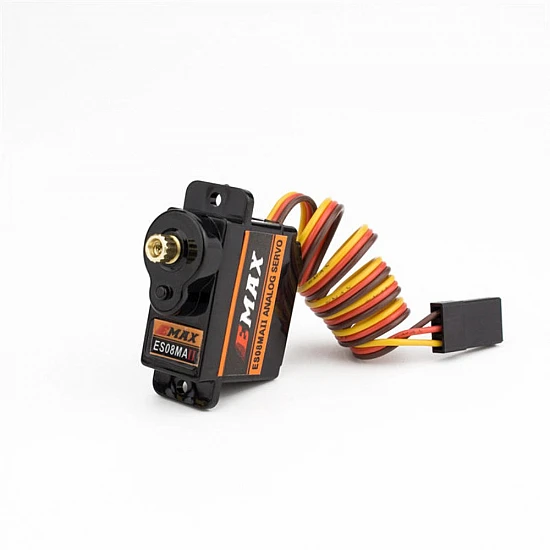

Emax ES08MA II Metal Gear Miniature Servo Motor 1.8kg

The Emax ES08MA II Metal Gear Miniature Servo Motor is a high-performance, ultra-reliable 12g analog servo designed for applications demanding high precision, durability, and compact sizing. Featuring robust, wear-resistant metal gears, this miniature servo solves the common issue of gear stripping under sudden loads, making it a massive upgrade over standard plastic-geared servos. It delivers an impressive stall torque of up to 1.8 kg.cm at 6V, providing strong holding power and smooth movement for demanding mechanical setups.

This miniature servo is highly popular among RC hobbyists and robotics engineers in India. It is perfectly suited for RC airplanes, gliders, small helicopters, multirotors, and micro-robotic arms. Fully compatible with Arduino, ESP32, Raspberry Pi, and standard RC receivers, it interfaces seamlessly using standard PWM signals. Whether you are building a custom drone, a robotic gripper, or an automated steering mechanism, the ES08MA II ensures precise angular control with minimal backlash.

Features:

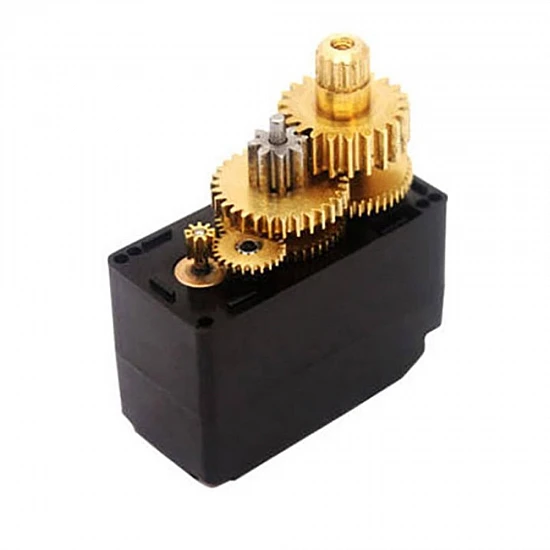

• High-Durability Metal Gears: Equipped with precision-cut metal gears that offer superior wear resistance and prevent gear stripping.
• Excellent Torque-to-Weight Ratio: Delivers up to 1.8 kg.cm of torque while weighing only 12 grams (servo unit).
• Fast Response Speed: Achieves a rapid transit speed of 0.10 seconds per 60 degrees at 6V.
• Wide Compatibility: Operates on standard 4.8V to 6.0V power supplies, making it compatible with most microcontrollers and BECs.
• Standard 3-Pin Connector: Uses a standard JR/Futaba compatible connector with a flexible 250mm cable for easy wiring.
• Complete Accessories Included: Comes with a comprehensive set of servo horns and mounting screws for immediate installation.

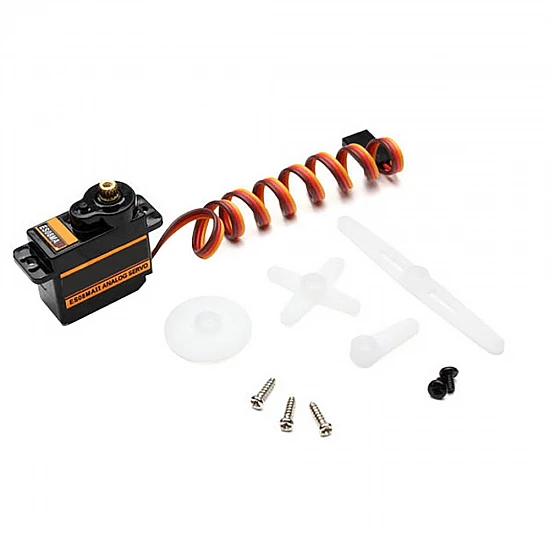

Package Includes:

1 x Emax ES08MA II Metal Gear Miniature Servo Motor

1 x Servo Horn and Mounting Screw Set
