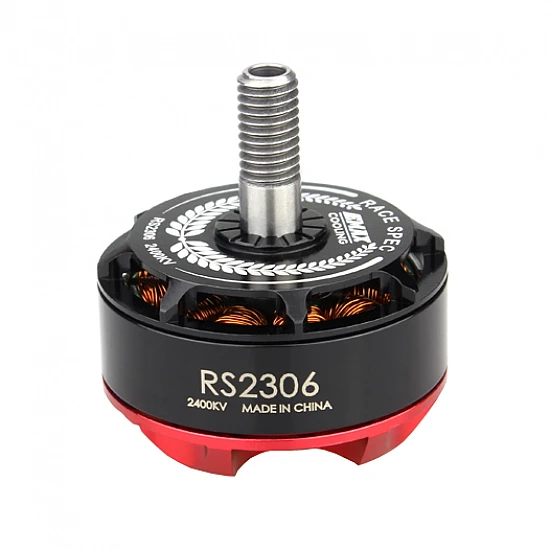

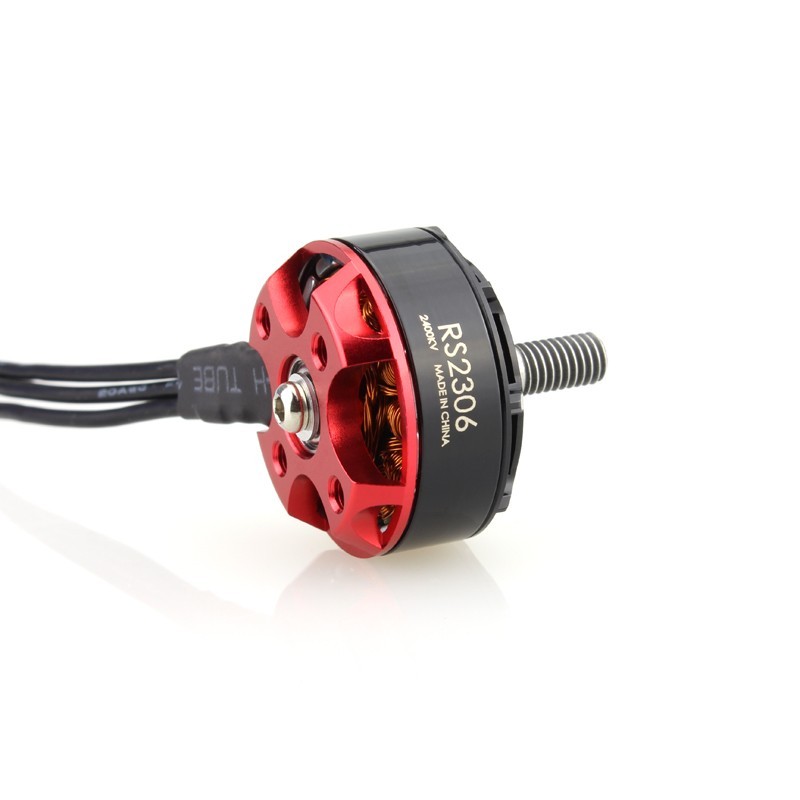

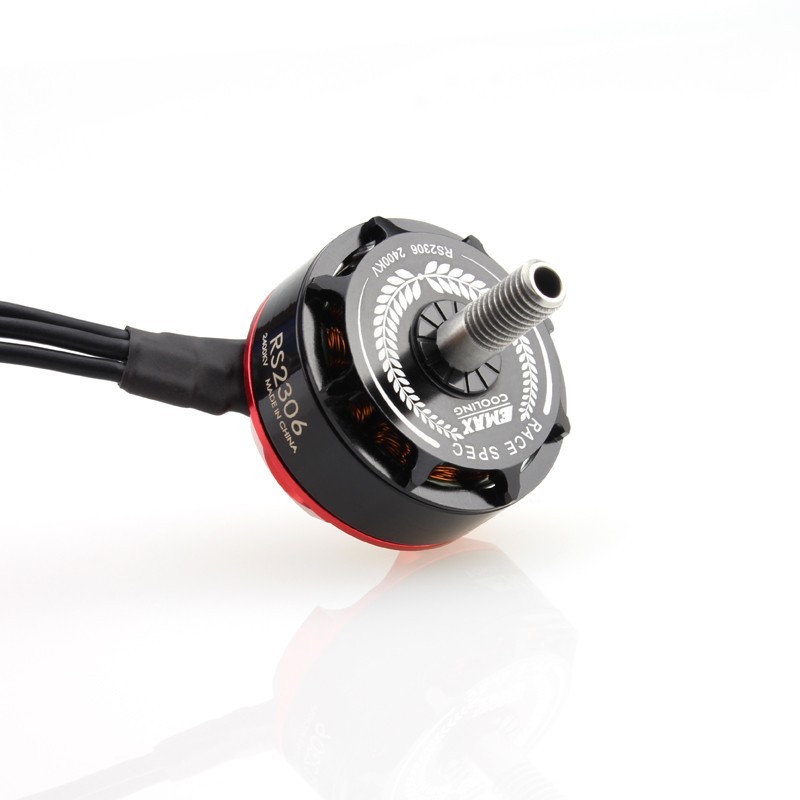

Emax 2400kv Brushless motor RS2306 - RaceSpec for FPV Drone
₹2,319
₹2,999
(inc GST)
- Stock: Out Of Stock
- With this product you will receive ₹24 FlyRobo Cashback.
- SKU: FR-02-423
These EMAX Brushless DC Motor are imported from original Emax products manufacturers. Our team has selected some of the fine innovations from EMAX and tested them for their ability in labs before supplying to customers. Boasting incredible thrust numbers, with a perfect blend of efficiency, showcases how EMAX is a leader within the FPV community and delivering products that continuously challenge. This EMAX Black RS2306 2400KV BLDC FPV Racing Motor equips larger, upgraded stator with Japanese NSK bearings to reduce eddy current loss. This results in greater power and efficiency. These motors are specially meant for your Quadcopters or other types of Multirotors like Tri, Hexa, etc. The new RS2306 ‘Black Edition’ motors from Emax can produce up to 1.5Kg of thrust.
Features:
- Framework: 12N14P
- Propeller: 5 inch
- LiPO Batteries: 3S-4S
- Shaft Diameter: 5mm
- Max.thrust: 1552 gm
- Modified Cooling Fins for best cooling.
- Curved Magnets.
- Updated Bearings to smoothen out the operation.
- Higher Thrust Output as compared to other same rated motors.
- Hollow Shaft.
- Screw Secured Bell for reliable operation.
| motor type | voltage ( v ) | propeller | current ( A ) | thrust ( G ) | power ( w) | efficiency | speed ( RPM ) |
| RS2306-2400kv | 12 | GF5050 tri-blade | 1.1 | 75 | 13.2 | 5.68 | 6250 |
| 3.1 | 177 | 37.2 | 4.76 | 9400 | |||
| 5.1 | 262 | 61.2 | 4.28 | 11160 | |||
| 7.1 | 332 | 85.2 | 3.9 | 12440 | |||
| 9.1 | 410 | 109.2 | 3.75 | 13810 | |||
| 11.7 | 472 | 133.2 | 3.54 | 14840 | |||
| 13.1 | 540 | 157.2 | 3.44 | 15900 | |||
| 15.1 | 604 | 181.2 | 3.33 | 16710 | |||
| 17.1 | 660 | 206.4 | 3.2 | 17550 | |||
| 19.1 | 719 | 229.2 | 3.14 | 18330 | |||
| 21.1 | 770 | 253.2 | 3.04 | 19080 | |||
| 23.1 | 825 | 277.2 | 2.98 | 19830 | |||
| 25.1 | 870 | 301.2 | 2.89 | 20580 | |||
| 27.1 | 925 | 325.2 | 2.84 | 21090 | |||
| 29 | 958 | 348 | 2.75 | 21470 | |||
| 30.1 | 984 | 361.2 | 2.72 | 21780 | |||
| T5045 tri-blade | 1 | 71 | 12 | 5.92 | 6320 | ||
| 3.1 | 182 | 37.2 | 4.89 | 9950 | |||
| 5.1 | 271 | 61.2 | 4.43 | 12080 | |||
| 7.1 | 357 | 85.2 | 4.19 | 13850 | |||
| 9.1 | 425 | 109.2 | 3.89 | 15170 | |||
| 11.1 | 496 | 133.2 | 3.72 | 16350 | |||
| 13.1 | 562 | 157.2 | 3.58 | 17440 | |||
| 15.1 | 629 | 181.2 | 3.47 | 18490 | |||
| 17.1 | 693 | 205.2 | 3.38 | 19330 | |||
| 19.1 | 755 | 229.2 | 3.29 | 20210 | |||
| 21.1 | 816 | 253.2 | 3.22 | 20950 | |||
| 23.1 | 865 | 277.2 | 3.12 | 21550 | |||
| 25.9 | 922 | 310.8 | 2.97 | 22380 | |||
| HQ5045 propeller | 1 | 60 | 12 | 5 | 6045 | ||
| 3.1 | 161 | 37.2 | 4.33 | 10100 | |||
| 5.1 | 245 | 61.2 | 4 | 12150 | |||
| 7.1 | 321 | 85.2 | 3.77 | 13680 | |||
| 9.1 | 388 | 109.2 | 3.55 | 15060 | |||
| 11.1 | 448 | 133.2 | 3.36 | 16350 | |||
| 13.1 | 512 | 157.2 | 3.26 | 17370 | |||
| 15.1 | 575 | 181.2 | 3.17 | 18350 | |||
| 17.1 | 630 | 205.2 | 3.07 | 19200 | |||
| 19.1 | 686 | 229.2 | 2.99 | 20010 | |||
| 21.1 | 742 | 253.2 | 2.93 | 20640 | |||
| 23.1 | 786 | 277.2 | 2.84 | 21360 | |||
| 25.2 | 828 | 302.4 | 2.74 | 22080 | |||
| 26.4 | 849 | 316.8 | 2.68 | 22430 | |||
| 6040BN tri-blade | 1.1 | 92 | 13.2 | 6.97 | 6020 | ||
| 5.1 | 309 | 61.2 | 5.05 | 10470 | |||
| 10.1 | 516 | 121.2 | 4.26 | 13410 | |||
| 15.1 | 690 | 181.2 | 3.81 | 15480 | |||
| 20.1 | 850 | 241.2 | 3.52 | 17220 | |||
| 25.1 | 996 | 301.2 | 3.31 | 18710 | |||
| 30.2 | 1148 | 362.4 | 3.17 | 19720 | |||
| 34.6 | 1263 | 415.2 | 3.04 | 20560 | |||
| 16 | GF5050 tri-blade | 1 | 98 | 16 | 6.13 | 6710 | |
| 3.1 | 214 | 49.6 | 4.31 | 10210 | |||
| 5.1 | 319 | 81.6 | 3.91 | 12240 | |||
| 7.1 | 404 | 113.6 | 3.56 | 13780 | |||
| 9.1 | 481 | 145.6 | 3.3 | 14960 | |||
| 11.1 | 550 | 177.6 | 3.1 | 15940 | |||
| 13.1 | 619 | 209.6 | 2.95 | 16950 | |||
| 15.1 | 687 | 241.6 | 2.84 | 17800 | |||
| 17.1 | 745 | 273.6 | 2.72 | 18670 | |||
| 19.2 | 811 | 307.2 | 2.64 | 19610 | |||
| 21.2 | 875 | 339.2 | 2.58 | 20400 | |||
| 22.8 | 934 | 364.8 | 2.56 | 21120 | |||
| 25.1 | 989 | 401.6 | 2.46 | 21830 | |||
| 27.1 | 1044 | 433.6 | 2.41 | 22570 | |||
| 29.3 | 1100 | 468.8 | 2.35 | 23040 | |||
| 31.1 | 1154 | 497.6 | 2.32 | 26460 | |||
| 33.1 | 1208 | 529.6 | 2.28 | 23950 | |||
| 35.1 | 1259 | 561.6 | 2.24 | 24480 | |||
| 37 | 1316 | 592 | 2.22 | 24970 | |||
| 39.2 | 1365 | 627.2 | 2.18 | 25300 | |||
| 41.2 | 1418 | 659.2 | 2.15 | 25820 | |||
| 43.1 | 1475 | 689.6 | 2.14 | 26280 | |||
| 45.2 | 1528 | 723.2 | 2.11 | 26660 | |||
| 46.4 | 1552 | 742.4 | 2.09 | 26880 | |||
| T5045 tri-blade | 1.1 | 96 | 17.6 | 5.45 | 7130 | ||
| 3.1 | 236 | 49.6 | 4.76 | 11250 | |||
| 5.1 | 332 | 81.6 | 4.07 | 13310 | |||
| 7.1 | 418 | 113.6 | 3.68 | 15110 | |||
| 9.1 | 501 | 145.6 | 3.44 | 16250 | |||
| 11.1 | 586 | 177.6 | 3.3 | 17530 | |||
| 13.1 | 656 | 209.6 | 3.13 | 18630 | |||
| 15.1 | 726 | 241.6 | 3 | 19780 | |||
| 17.2 | 802 | 275.2 | 2.91 | 20720 | |||
| 19.1 | 868 | 305.6 | 2.84 | 21740 | |||
| 21.1 | 926 | 337.6 | 2.74 | 22350 | |||
| 23.1 | 985 | 369.6 | 2.67 | 22830 | |||
| 25.2 | 1052 | 403.2 | 2.61 | 23350 | |||
| 27.1 | 1117 | 433.6 | 2.58 | 24070 | |||
| 29.1 | 1175 | 465.6 | 2.52 | 24760 | |||
| 31.1 | 1226 | 497.6 | 2.46 | 25400 | |||
| 33 | 1268 | 528 | 2.4 | 26070 | |||
| 35 | 1312 | 560 | 2.34 | 26530 | |||
| 37 | 1358 | 592 | 2.29 | 26930 | |||
| 39.1 | 1396 | 625.6 | 2.23 | 27380 | |||
| 41.2 | 1428 | 659.2 | 2.17 | 27780 | |||
| HQ5045 propeller | 1.1 | 86 | 17.6 | 4.89 | 7510 | ||
| 3.1 | 216 | 49.6 | 4.35 | 11620 | |||
| 5.1 | 319 | 81.6 | 3.91 | 14080 | |||
| 7.1 | 396 | 113.6 | 3.49 | 15810 | |||
| 9.1 | 470 | 145.6 | 3.23 | 17190 | |||
| 11.1 | 537 | 177.6 | 3.02 | 18460 | |||
| 13.1 | 605 | 209.6 | 2.89 | 19540 | |||
| 15.1 | 667 | 241.6 | 2.76 | 20540 | |||
| 17.1 | 719 | 273.6 | 2.63 | 21490 | |||
| 19.1 | 781 | 305.6 | 2.56 | 22210 | |||
| 21.1 | 839 | 337.6 | 2.49 | 23090 | |||
| 23.1 | 885 | 369.6 | 2.39 | 23810 | |||
| 25.1 | 947 | 401.6 | 2.36 | 24670 | |||
| 27.1 | 981 | 433.6 | 2.26 | 25400 | |||
| 29.1 | 1032 | 465.6 | 2.22 | 25890 | |||
| 31.1 | 1084 | 497.6 | 2.18 | 26320 | |||
| 33.2 | 1133 | 531.2 | 2.13 | 26830 | |||
| 35.1 | 1188 | 561.6 | 2.12 | 27350 | |||
| 37.2 | 1238 | 595.2 | 2.08 | 27910 | |||
| 39 | 1287 | 624 | 2.06 | 28200 | |||
| 40.4 | 1323 | 646.4 | 2.05 | 28320 | |||
| 6040BN tri-blade | 1.1 | 110 | 17.6 | 6.25 | 6570 | ||
| 5.1 | 358 | 81.6 | 4.39 | 11300 | |||
| 10.1 | 570 | 161.6 | 3.53 | 14260 | |||
| 15.1 | 781 | 241.6 | 3.23 | 16470 | |||
| 20 | 925 | 320 | 2.89 | 18200 | |||
| 25 | 1110 | 400 | 2.78 | 19510 | |||
| 30.2 | 1270 | 483.2 | 2.63 | 21000 | |||
| 35 | 1420 | 560 | 2.54 | 22000 | |||
| 40 | 1550 | 640 | 2.42 | 23100 | |||
| 45 | 1670 | 720 | 2.32 | 23900 | |||
| 50 | 1808 | 800 | 2.26 | 24780 | |||
| 52.6 | 1871 | 841.6 | 2.22 | 25160 |

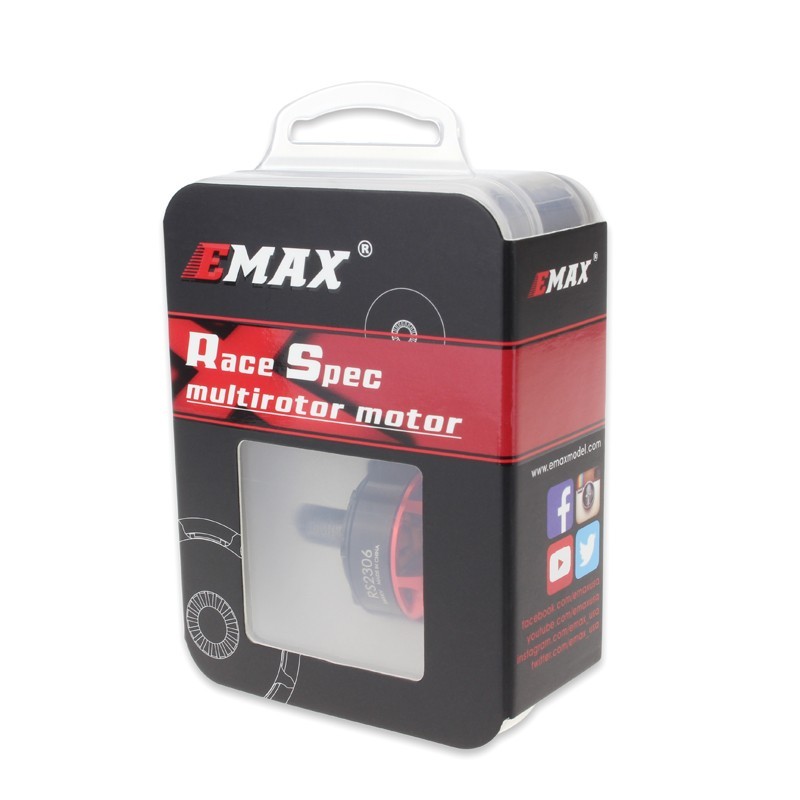

Package Content:
1 x Emax 2400kv Brushless motor RS2306 - RaceSpec for FPV Drone
