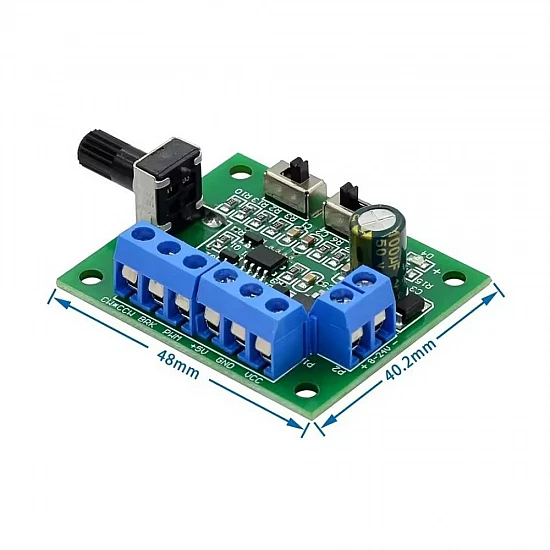

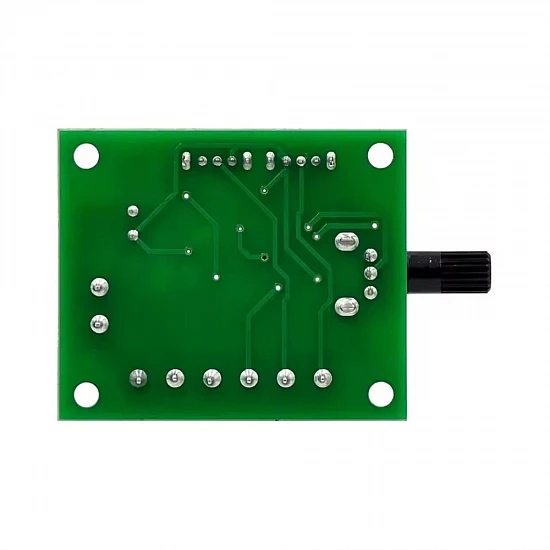

DC 8-24V BLDC Brushless Motor PWM Speed Controller Board

The DC 8-24V BLDC Brushless Motor PWM Speed Controller Board is a compact and highly efficient signal generator designed specifically for controlling brushless DC motors that feature built-in driver circuits. This module provides a seamless way to adjust motor speed, change rotation direction, and apply electronic braking without needing a complex microcontroller setup. It operates over a wide input voltage range of 8V to 24V DC, making it highly versatile for various industrial and hobbyist applications.

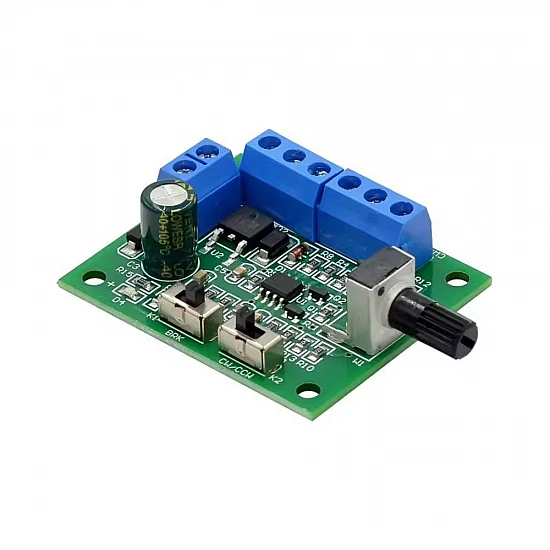

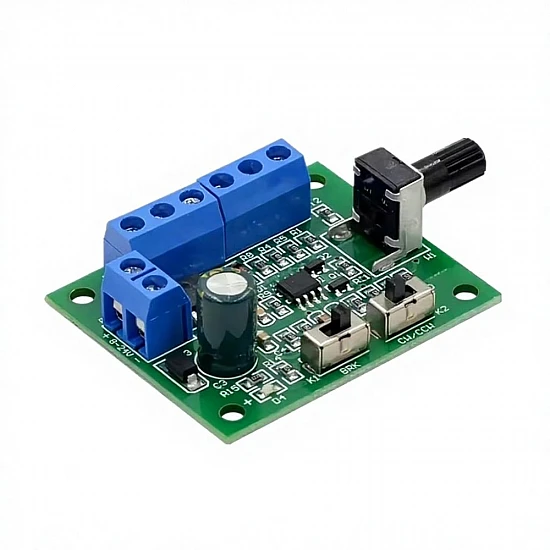

Equipped with an onboard potentiometer for smooth speed adjustment, the board also features two tactile slide switches: one for controlling the direction of rotation (CW/CCW) and another for activating the electronic brake (BRK). This controller is highly compatible with popular brushless motors (such as Nidec BLDC motors) that accept an external PWM speed control signal, making it an essential tool for DIY cooling systems, miniature pumps, and robotics projects.

Features:

• Wide Operating Voltage: Supports a broad input range from 8V to 24V DC to match your motor's power requirements.
• Onboard Speed Control: Integrated high-precision potentiometer allows for smooth, real-time speed tuning.
• Direction Control: Dedicated CW/CCW slide switch lets you reverse motor direction instantly.
• Brake Function: Onboard BRK slide switch provides quick electronic braking for precise stop control.
• Standard PWM Output: Generates a stable 5V PWM signal compatible with most integrated BLDC motor drivers.
• Robust Connectivity: Features high-quality screw terminals for secure, solderless power and motor signal connections.

Package Includes:

1 x DC 8-24V BLDC Brushless Motor PWM Speed Controller Board
