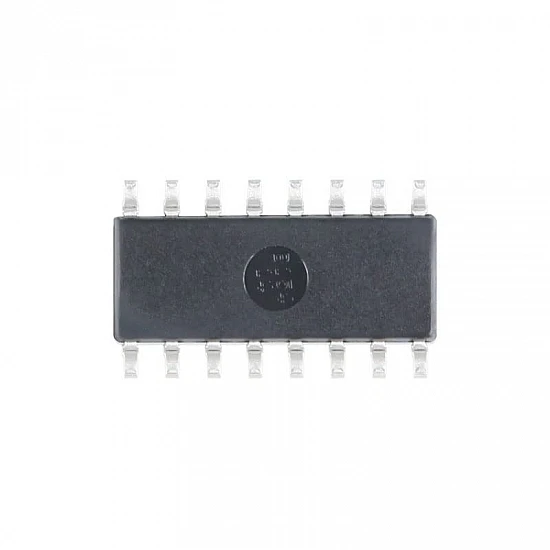

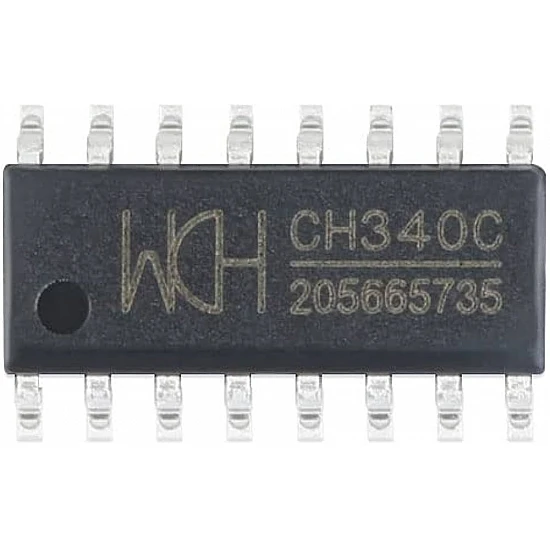

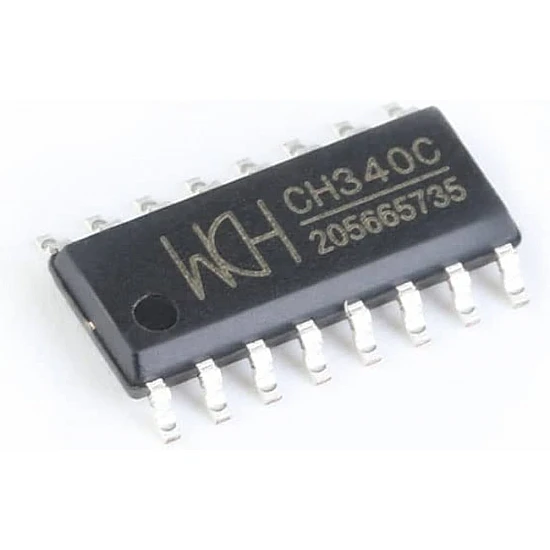

CH340C SOP16 USB to serial port IC

The CH340C is a compact SOP16 USB-to-serial port IC that provides seamless connectivity between USB and UART interfaces. It supports data transfer rates up to 2 Mbps, ensuring high-speed communication for various applications. With its built-in crystal oscillator, it eliminates the need for external components, simplifying circuit design. The IC operates over a wide voltage range (3.3V to 5V) for versatile compatibility. Its plug-and-play functionality makes it ideal for embedded systems, microcontrollers, and industrial automation. The CH340C is reliable, cost-effective, and easy to integrate into space-constrained designs.

Features:

• USB to Serial Conversion
• SOP16 package
• 3.3V to 5V
• 50bps to 2Mbps
• On-Chip Crystal Oscillator
• Built-In EEPROM Functionality
• Low Power Consumption
• USB 2.0 full-speed protocol
• Provides TXD, RXD, RTS, and CTS signals

Package Includes:

1 x CH340C SOP16 USB to serial port IC
