In the world of electronics today, wireless communication is essential. The 433MHz CC1101 Wireless RF Transceiver Module is an affordable and dependable option if you're searching for a simple way to set up wireless communication between your devices. We'll go over the fundamentals of installing and utilizing this module with you in this guide.

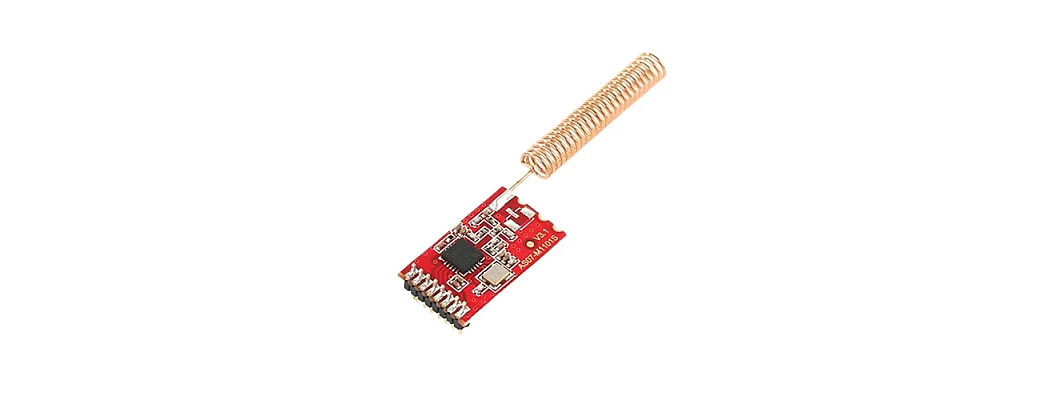

Introduction to CC1101 Transceiver Module

An inexpensive 433MHz RF transceiver module is the CC1101. Applications like wireless sensors, telemetry systems, and remote controls make extensive use of it. The module provides a straightforward method for establishing communication over a suitable distance between devices.

Wiring and Connections

To get started, you'll need to make the following connections:

  • VCC: Connect this to your power source (usually 3.3V or 5V).
  • GND: Connect to the ground of your power source.
  • MISO (Master In Slave Out): Connect to the SPI MISO pin on your microcontroller.
  • MOSI (Master Out Slave In): Connect to the SPI MOSI pin on your microcontroller.
  • SCLK (Serial Clock): Connect to the SPI SCLK pin on your microcontroller.
  • GDO0 (General Digital Output): This can be connected to an interrupt-capable pin on your microcontroller to receive data.
  • CSN (Chip Select): Connect to the SPI CS or SS (Slave Select) pin on your microcontroller.

Arduino Setup

If you're using an Arduino, you can easily interface with the CC1101 module. Make sure you have the Arduino IDE installed.

  1. Install RFM69 Library: In the Arduino IDE, go to Sketch > Include Library > Manage Libraries. Search for "RFM69" and install the "RFM69 by LowPowerLab" library, which is compatible with the CC1101 module.

  2. Write Your Code: Use the library to write your code. For a simple example, you can use the provided "HelloServer" and "HelloClient" example sketches that come with the library to establish communication between two Arduino boards. Make sure you configure the frequency (433MHz) and other settings according to your module's specifications.

  3. Upload Your Code: Upload the code to your Arduino board and monitor the serial output to verify communication.

Experiment and Expand

You can begin experimenting with different applications once you've used the 433MHz CC1101 module to establish communication between your devices. Building wireless sensor networks, remote control systems, and even home automation projects is made easy with this module.

For further information on the features and configurations of the module, don't forget to refer to the datasheet and documentation.


The 433MHz CC1101 Wireless RF Transceiver Module is a versatile and budget-friendly option for adding wireless communication to your projects. With its ease of use and reliability, it's an excellent choice for hobbyists and tinkerers.

So go ahead and experiment with this module to unlock new possibilities in your electronic projects. Have fun exploring the world of wireless communication!
