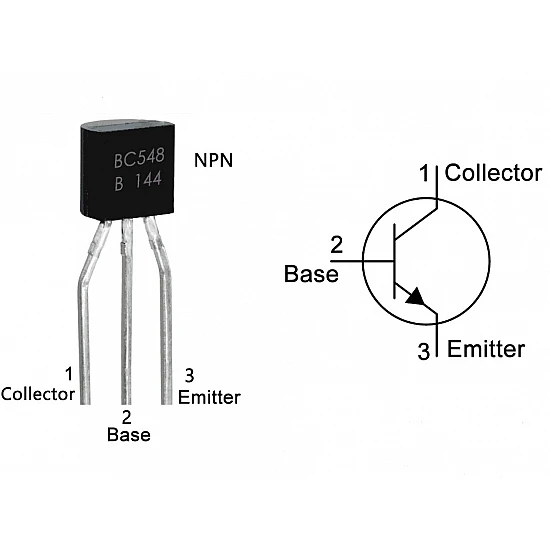

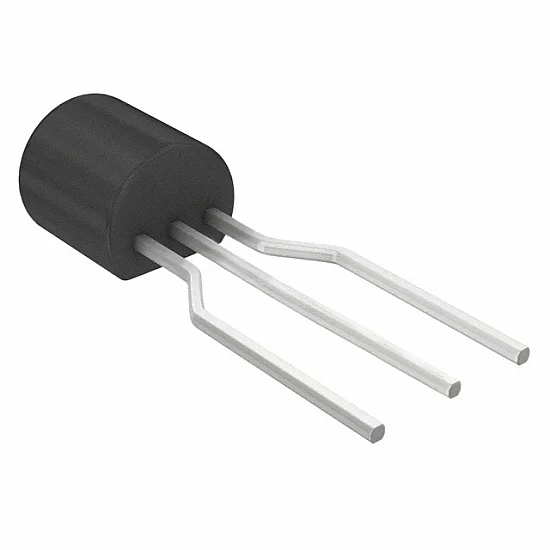

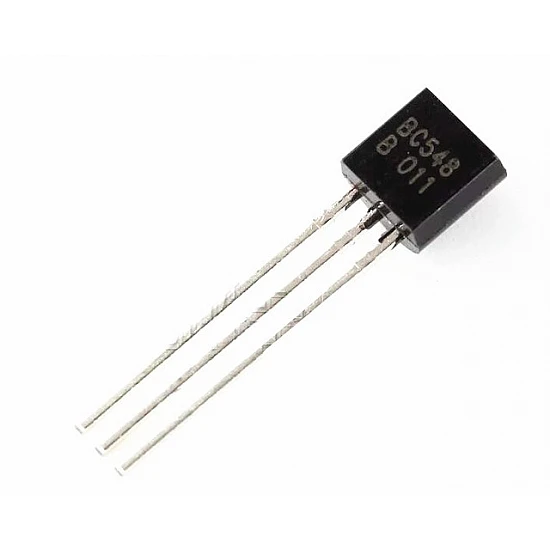

BC548-B NPN Type Direct Plug Crystal Transistor

The BC548-B is a general-purpose NPN bipolar junction transistor (BJT) designed for low-current and low-noise amplification or switching applications.It features a collector-emitter voltage of 30V and a collector current up to 100mA, making it ideal for signal processing and small load control.The transistor offers a DC current gain (hFE) range of 110 to 800, ensuring reliable amplification performance.With a transition frequency of 150MHz, it supports high-speed signal response in RF and audio circuits.The BC548-B is widely used in amplifiers, oscillators, and switching circuits due to its stability and low noise characteristics.Its direct plug crystal package ensures easy PCB mounting and efficient heat dissipation.

Features:

•  NPN Silicon Transistor
•  Collector-Emitter Voltage (Vceo): Up to 30V
• Collector Current (Ic): Maximum continuous current of 100mA
• DC Current Gain (hFE): Range between 110 to 800
• Low Noise Performance
• Direct Plug Crystal (TO-92) package

Package Includes:

1 x BC548-B NPN Type Direct Plug Crystal Transistor
