LM741 Operational amplifier IC

LM741 Operational amplifier IC - ICs - Integrated Circuits & Chips - Core Electronics
Out Of Stock

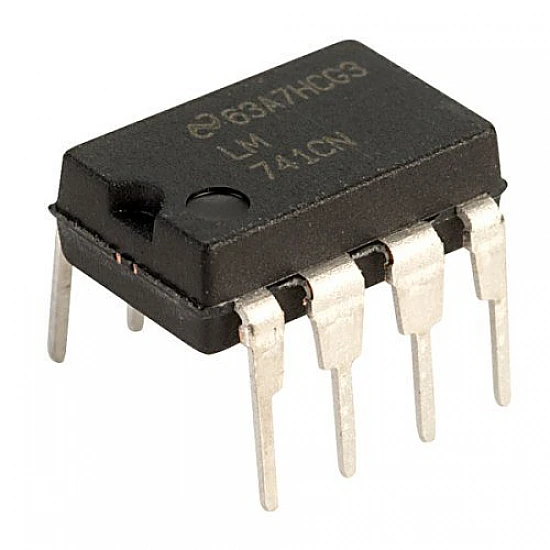

LM741 Operational amplifier IC
₹15

(inc GST)

  • Stock: Out Of Stock
  • SKU: FR-05-606
    10 or more ₹14
    50 or more ₹13

DESCRIPTION:-

This IC 741 is 8 pins Operational Amplifier. The LM741 series are general-purpose operational amplifiers which feature improved performance over industry standards like the LM709. They are direct, plug-in replacements for the 709C, LM201, MC1439, and 748 in most applications.




LM741 Pin Configuration:-

Pin Number

Pin Name

Description

1, 5

OFFSET NULL

Pin used to remove the offset voltage and balance input voltage.

2

INPUT-

Inverting signal Input

3

INPUT+

Non-Inverting signal Input

4

V-

Ground or Negative Supply Voltage

6

OUTPUT

The output of op amp

7

V+

Positive Supply Voltage

8

NC

Not connected

  • LM741 Op-Amp IC Features and Specifications:-
    • LM741 has only one op-amp inside, there are some op-amp IC’s having more than one op-amp like LM358, LM148, LM248, LM348
    • Provided with short circuit and overload protection.
    • Low power consumption.
    • Large common mode rejection ratio (CMRR) and differential voltage ranges.
    • No external frequency compensation is required.
    • Prevent from latch-up when the common-mode range is exceeded.
    • Minimum, normal and maximum Power Consumption for this IC is ±10v, ±15v and ±22v respectively.
    • Operating temperature should be -50 to 125 ˚C.
    • Supply current – 1.7 to 2.8mA.
    • Soldering pin temperature – PDIP package - 260 ˚C (for 10 seconds – prescribed)
    • TO-99 and CDIP - 300 ˚C (for 10 seconds – prescribed)
    • Available packages: TO-99, CDIP & PDIP







Brief Description:-

An LM741 operational amplifier is a DC-coupled high gain electronic voltage amplifier. It has only one op-amp inside. An operational amplifier IC is used as a comparator which compares the two signal, the inverting and non-inverting signal. The main function of this IC is to do the mathematical operation in various circuits. Op-amps have large gain and usually used as Voltage Amplifier. The LM741 can operate with a single or dual power supply voltage.



Package Includes  :-



  • 1 x  LM 741 Oerational Amplifire IC
