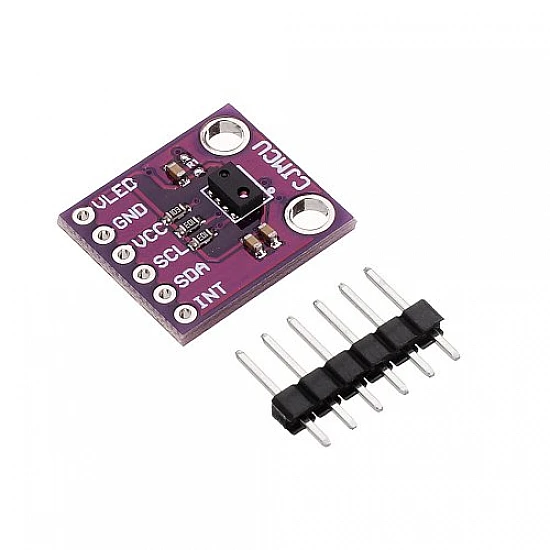

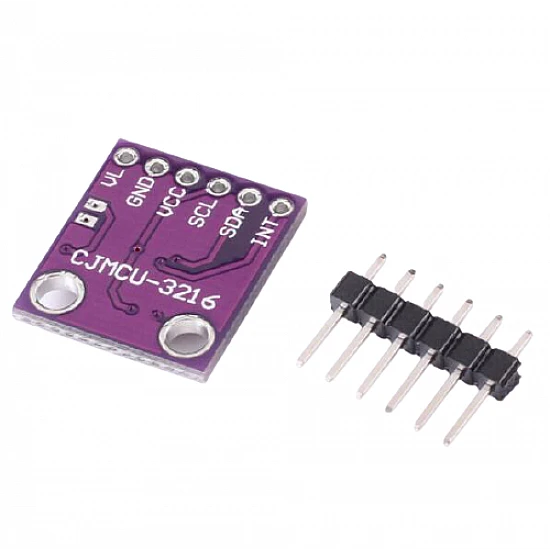

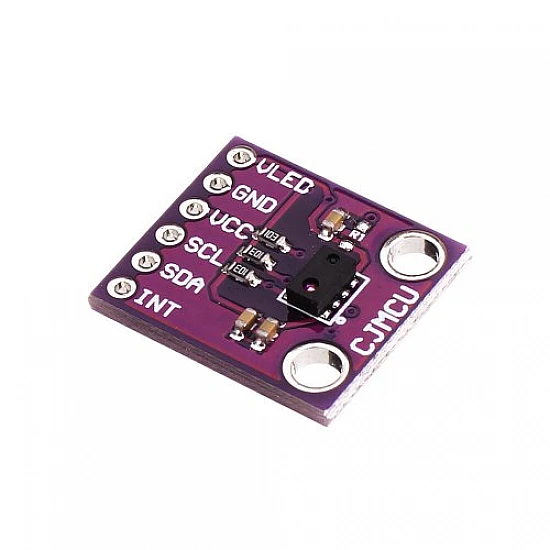

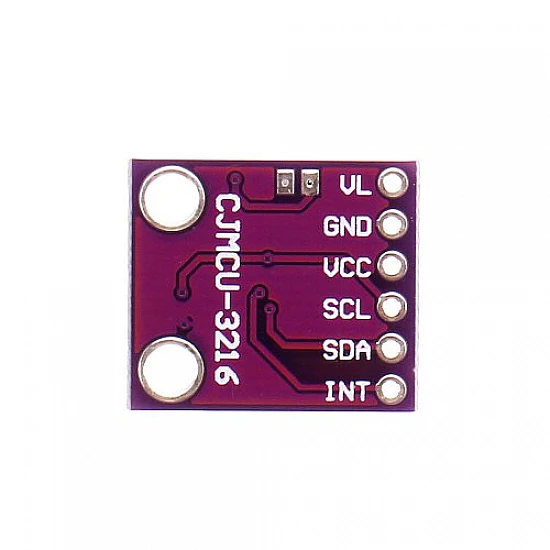

AP3216 Digital Ambient Light Proximity Sensor is based on AP3216C that is an ALS and PS module that includes an Ambient Light Sensor (ALS), a Proximity Sensor (PS). The ALS (ambient light sensor) provides measurements of ambient light intensity which match the human eye’s response to light under a variety of lighting conditions.

Features:

  • Chip: AP3216C
  • I2C interface
  • Ambient Light Photo Sensor: 16-bit effective linear output (0~65535)
  • Proximity Detector: 10-bit effective linear output (0~1023)
  • Applications: Mobile phone, PAD,  Personal navigation device, LCD/PDP TV backlight system, Digital Frame, Capacitive touch screen applications, etc.

Package Includes:

1 x AP3216 Digital Ambient Light Proximity Sensor.

Technical
Chip Model

AP3216C

Input Voltage

2.8V - 3.8V

Interface

I2C

No. of Pins

6 Pin

Operating Temperature Range

-30°C to +85°C

Length

18 mm

Height

3 mm

Width

15 mm
