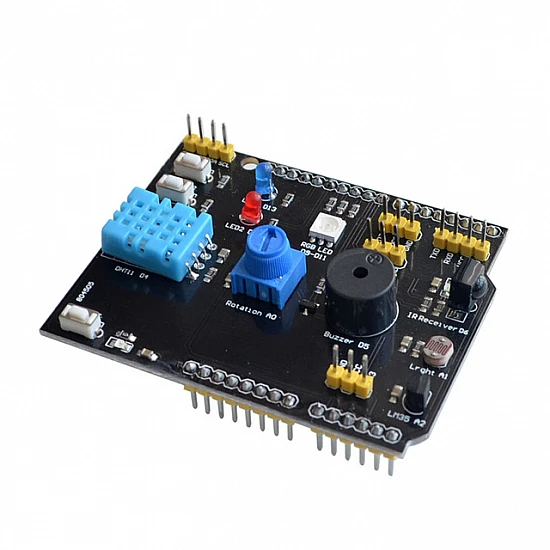

Multi-purpose Shield V1 is a learning board based on Arduino. No need for soldering and connection. Download directly the program to complete the experiment. It is multi-purpose and You can use them directly. There are extended ports on the shield to help you to complete another experiment.

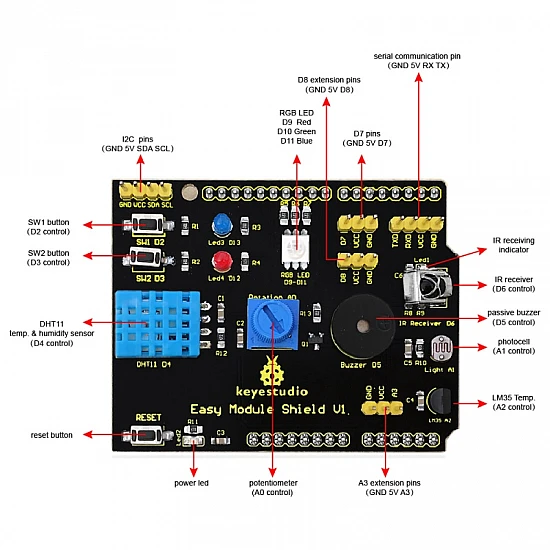

- Compatible with main controllers such as UNO R3 and MEGA2560.
- It comes with 2 LED indicators to show the program status.
- It comes with 2 switches for external interrupt experiments.
- Comes with a reset button
- It comes with a DHT11 sensor for measuring temperature and humidity.
- Comes with a potentiometer for analog input
- It comes with a passive buzzer for alarm.
- Comes with a full-color RGB LED
- Comes with a photocell to detect the brightness of the light
- Comes with LM35D temperature sensor
- Comes with an infrared receiver
- 2digital pins（D7 and D8）
- 1 analog pin（A3）
- One IIC interface
- One TTL serial pin
- 1 x Arduino 9IN1 Multifunction Arduino Shield
|Compatible With||main controllers such as UNO R3 and MEGA2560.|
|Operating Voltage||5 V|
