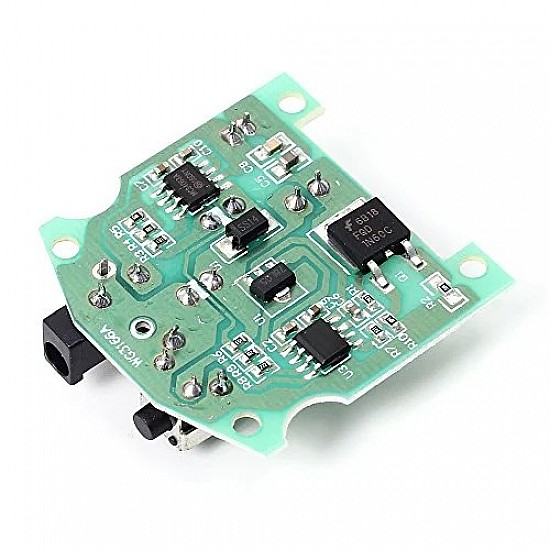

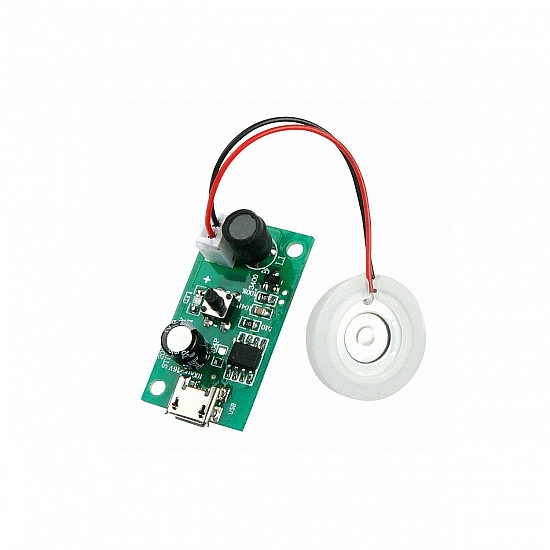

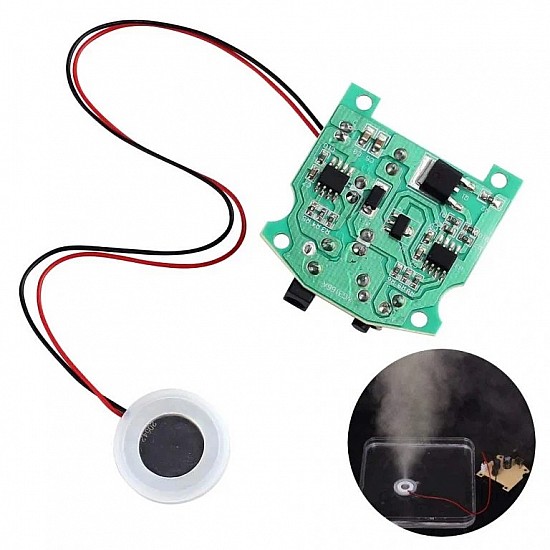

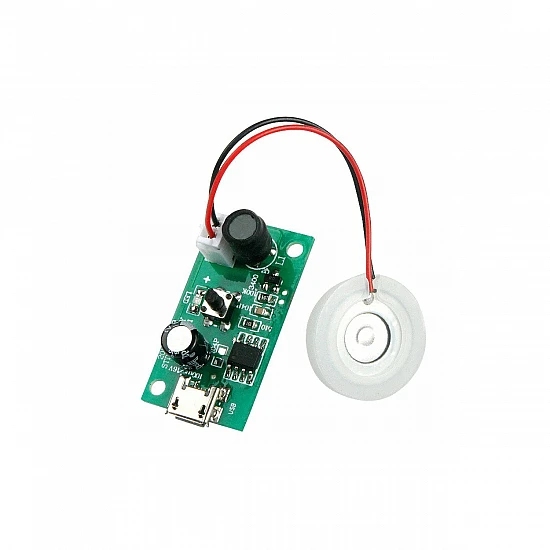

5V Ultrasonic Humidifiers Power Circuit Board

5V Ultrasonic Humidifiers Power Circuit Board
5V Ultrasonic Humidifiers Power Circuit Board
5V Ultrasonic Humidifiers Power Circuit Board
Out Of Stock
5V Ultrasonic Humidifiers Power Circuit Board
5V Ultrasonic Humidifiers Power Circuit Board
5V Ultrasonic Humidifiers Power Circuit Board

5V Ultrasonic Humidifiers Power Circuit Board
₹398

(inc GST)

  • Stock: Out Of Stock
  • SKU: FR-01-696

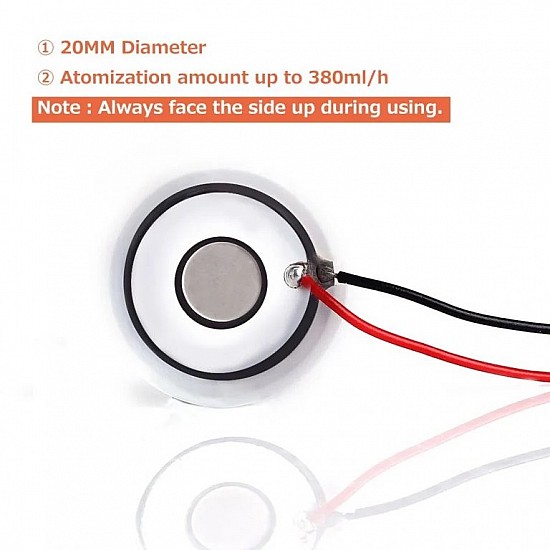

This 5V Ultrasonic Humidifiers Power Circuit Board for Moisture Film Humidification atomization machine is; suitable for the atomization plate tablet with a diameter of 20mm. Just provide the DC3-12V power supply it will turn into a mini ultrasonic atomizer.

This Ultrasonic Humidifier Piezoelectric Transmitter module works on the principle of cavitation produced by sound waves. As sound waves contain compression and rarefaction. Due to extremely rapid movement, water droplets can no longer sustain their liquid state and get converted into vapor immediately. This vibration is produced by a piezoelectric filament.

Application :
  • Medical liquid atomizing.
  • Humidifier.
  • Beauty care for facial massager.
  • Equipment.

Features:

  • Low Dielectric Loss.
  • Low noise operation.
  • High stability.
  • Small fog particles.
  • Long operation life.
  • Strong Corrosion Resistance.
  • Driving Voltage: DC 3-12V.
  • High Conversion Efficiency.
  • Low Impedance Stable Waveform.

Package Includes :

1 x  5V Ultrasonic Humidifiers Power Circuit Board

Technical
Operating Frequency

113 ± 3KHz

Operating Temperature Range

-30 to +85 °C

Operating Voltage

3 ~ 12 VDC

Oscillator Diameter

20 mm

Power

2.5W (normal use 1.5W)

Length

4.15 cm

Height

1.35 cm

Width

3.8 cm
