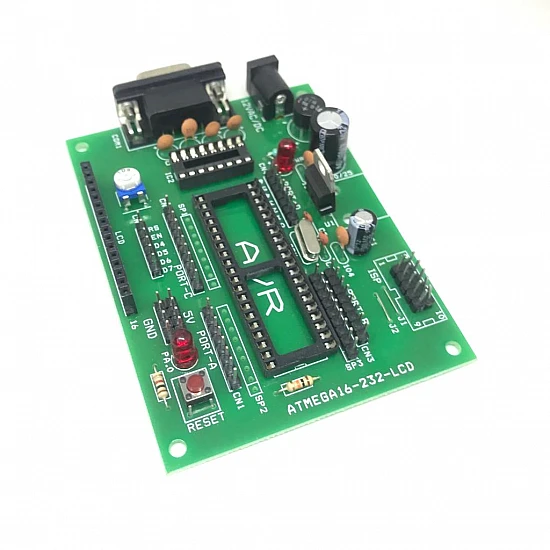

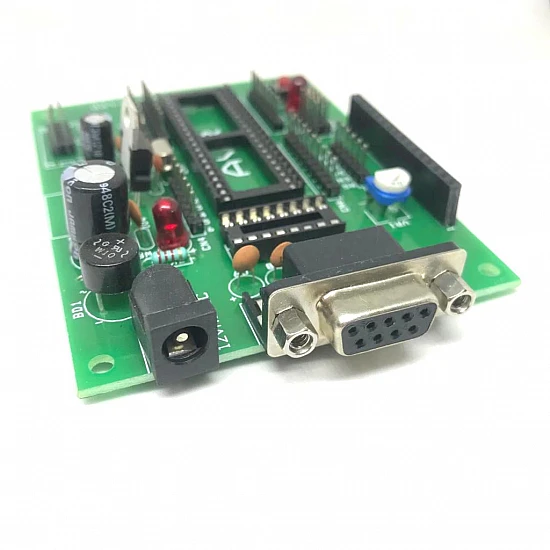

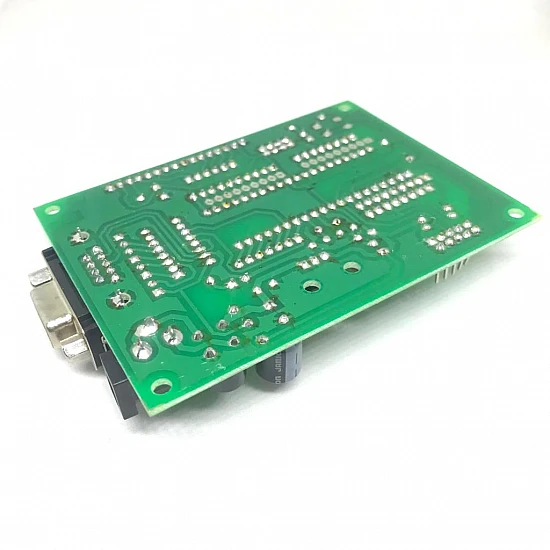

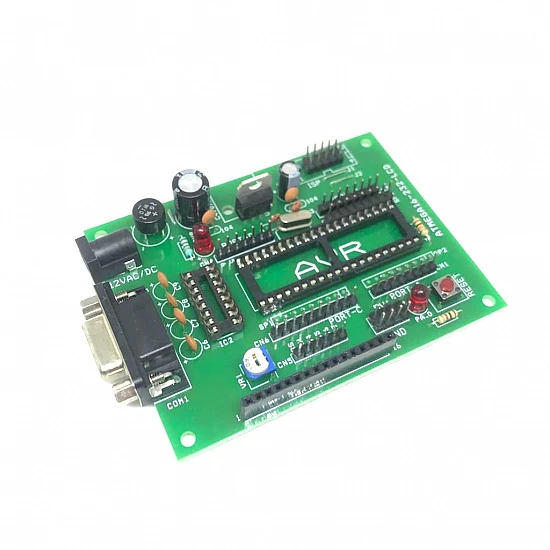

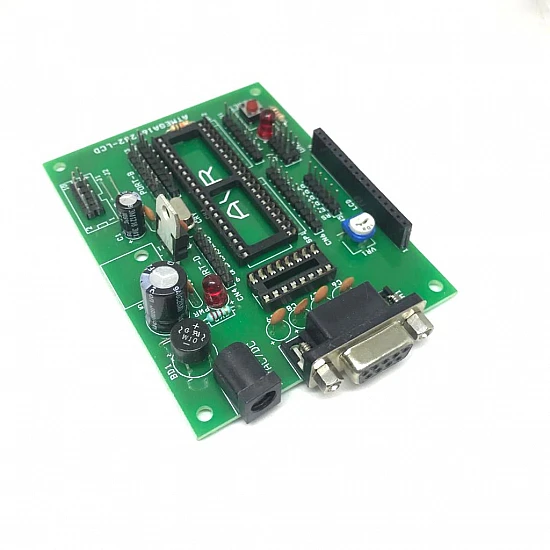

With this board, you can develop and prototype with any of Microchip's 40 pins AVR microcontrollers. The board has a User button and a status LED. The bridge rectifier allows this board to be powered with both AC and DC power supply adapters.
with this board, you can make any prototype that supports 40 pins Atmel Microcontrollers. you also connect LCD to this board and it has an RS232 serial port.
- Reset button.
- DIL40 microcontroller socket.
- Power plug-in jack(power supply AC/DC 12V).
- Quartz crystal 16 MHz
- An RS232 Serial Port.
- 1 testing LED.
- GND bus and VCC bus.
- ISP Socket for Flashing thru AVR Dude and AVR Prog.
- Extension slot on every uC pin.
1 x 40 Pin AVR Project Board For Atmel Microcontroller
40 pin Atmega microcontroller
