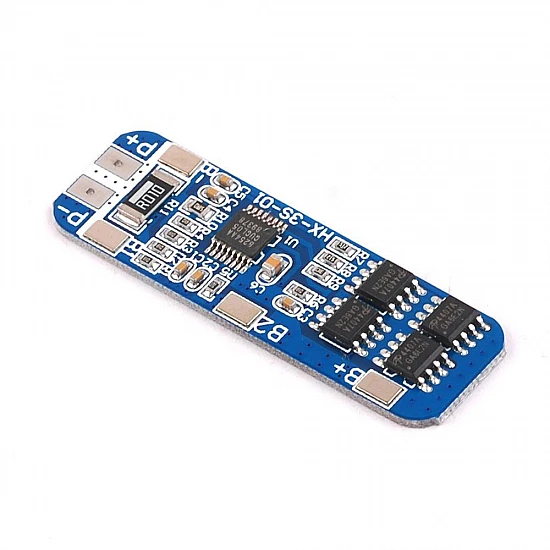

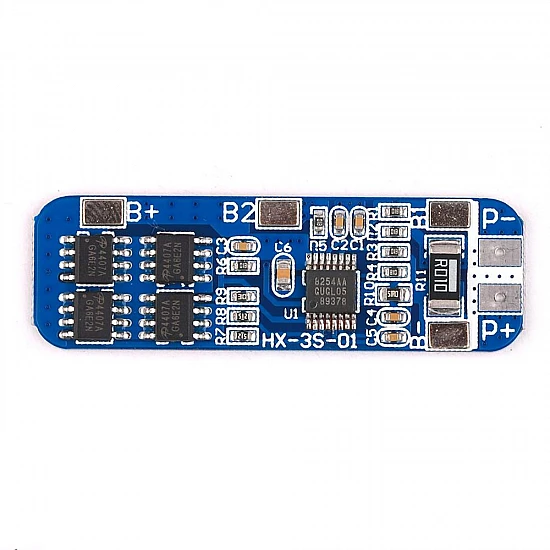

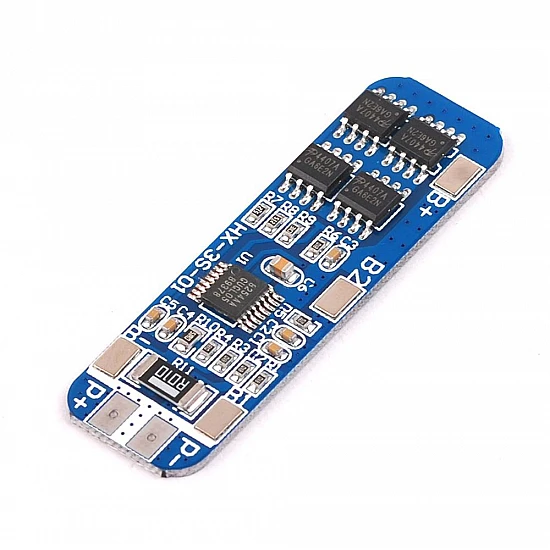

3S 10A 11.1V 18650 Lithium Battery Protection Board

3S 10A 11.1V 18650 Lithium Battery Protection Board
3S 10A 11.1V 18650 Lithium Battery Protection Board
3S 10A 11.1V 18650 Lithium Battery Protection Board
3S 10A 11.1V 18650 Lithium Battery Protection Board
-47 %
3S 10A 11.1V 18650 Lithium Battery Protection Board
3S 10A 11.1V 18650 Lithium Battery Protection Board
3S 10A 11.1V 18650 Lithium Battery Protection Board
3S 10A 11.1V 18650 Lithium Battery Protection Board
3S 10A 11.1V 18650 Lithium Battery Protection Board
₹105
₹198

(inc GST)

  • Stock: In Stock
  • ₹1 FlyRobo Cashback.
  • SKU: FR-07-440
    7 or more ₹99
    30 or more ₹95

BMS stands for the battery management system. This is a BMS with a 10A current and 11.1V voltage rating to charge 3 cells of Li-ion cells. The module comes with overcharge protection, over-discharge protection, short circuit, and over current protection features.

Features:

  • Three series of lithium battery protection boards.
  • Automatically cancel protection after protection conditions restore.
  • Overcharge protection, over-discharge protection, short circuit, and over current protection
  • Small power consumption as Quiescent current is less than 30µA

Package Includes:

1 x 3S 10A 11.1V 18650 Lithium Battery Protection Board.

Technical
Model

HX-3S-01

Battery

3 cell

Full Charge Voltage

12.6V - 13V

Internal Resistance

<100mΩ

Operating Temperature Range

-40℃ to 50℃

Over-voltage Range

4.25-4.35v±0.05v

Overcurrent Protection

Yes

Overvoltage Protection

Yes

Product Type

BMS Charger Module

Quiescent current

<30 μA

Working Current

5A-8A

Length

50 mm

Height

2 mm

Width

15 mm
