3.5 Inch TFT LCD Touch Screen Arduino UNO Shield

3.5 Inch TFT LCD Touch Screen Arduino UNO Shield
3.5 Inch TFT LCD Touch Screen Arduino UNO Shield
3.5 Inch TFT LCD Touch Screen Arduino UNO Shield
-42 %
3.5 Inch TFT LCD Touch Screen Arduino UNO Shield
3.5 Inch TFT LCD Touch Screen Arduino UNO Shield
3.5 Inch TFT LCD Touch Screen Arduino UNO Shield
3.5 Inch TFT LCD Touch Screen Arduino UNO Shield
₹877
₹1,499

(inc GST)

  • Stock: In Stock
  • ₹8 FlyRobo Cashback.
  • SKU: FR-01-878
    5 or more ₹852
    15 or more ₹839

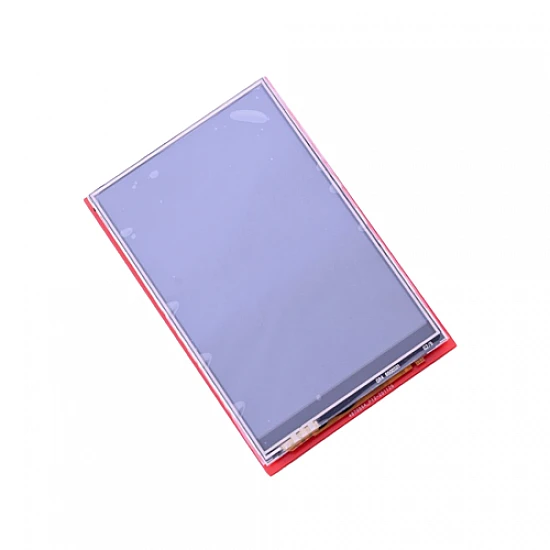

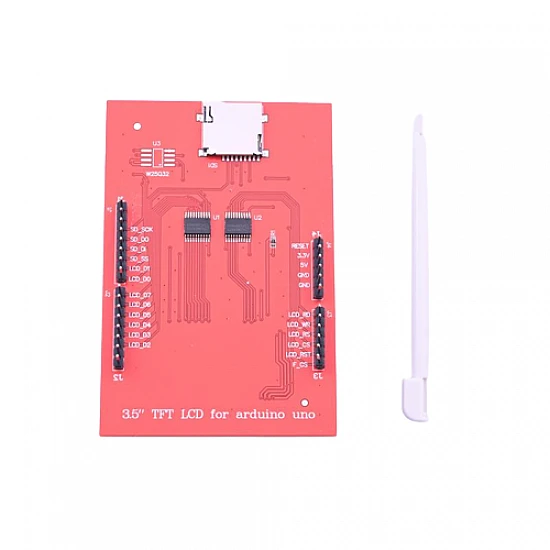

This small 3.5-inch touch screen module is designed specially for Arduino UNO. This is ideal for DIY anywhere, anytime, and does not require any separate power source or case to hold it. The screen also comes with a stylus to interact with the small screen.



Features:

  • Resistive touch screen TFT LCD, 3.5inch, 480x320 resolution
  • Standard Arduino interface, compatible with development boards like Arduino UNO, Leonardo, UNO PLUS, NUCLEO, XNUCLEO
  • Onboard stand-alone touch controller, better touching than solutions that use AD pins directly for touch control
  • PWM backlight control allows adjusting the backlight to a comfortable level
  • Micro SD slot, provides an easy way to store photos for displaying
  • Controlled via SPI, only a few Arduino pins are used
  • Comes with STM32 and Arduino examples, convenient for porting

Key Parameters:

  • LCD Type: TFT
  • LCD Interface: SPI
  • LCD Controller: ILI9486
  • Touch Screen Type: Resistive
  • Touch Screen Controller: XPT2046
  • Colors: RGB, 65K colors
  • Resolution: 480x320 (Pixel)
  • Aspect Ratio: 8:5
  • I/O Voltage: 3.3V/5V

Package Includes:

1 x 3.5 Inch TFT LCD Touch Screen Shield.

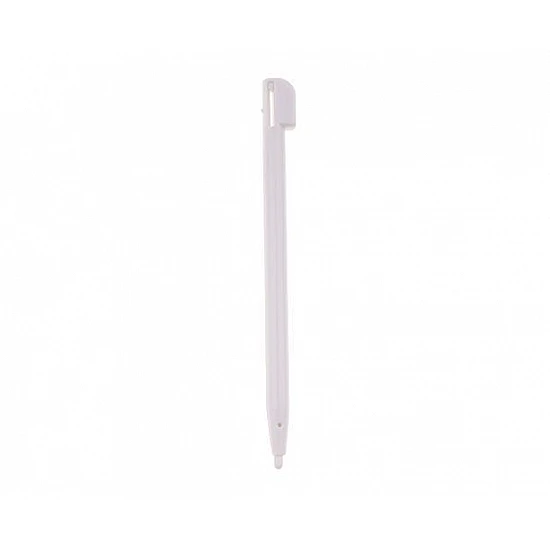

1 x Touch Pen.
