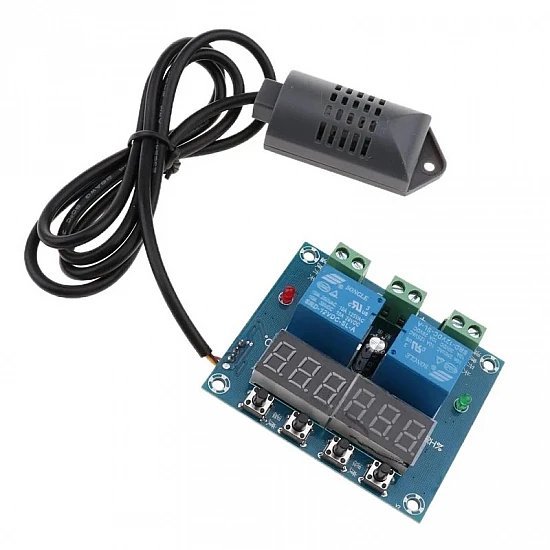

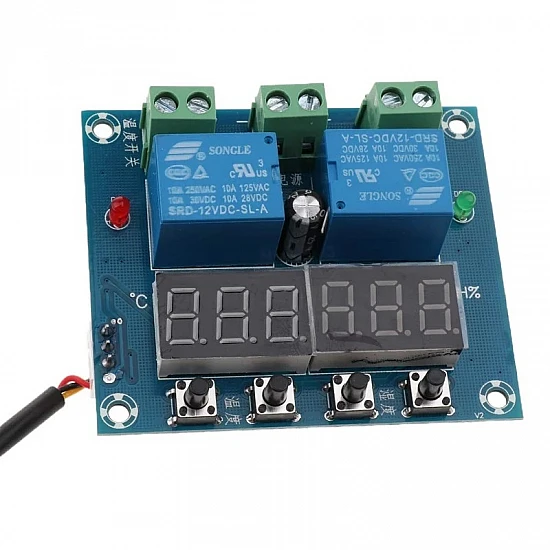

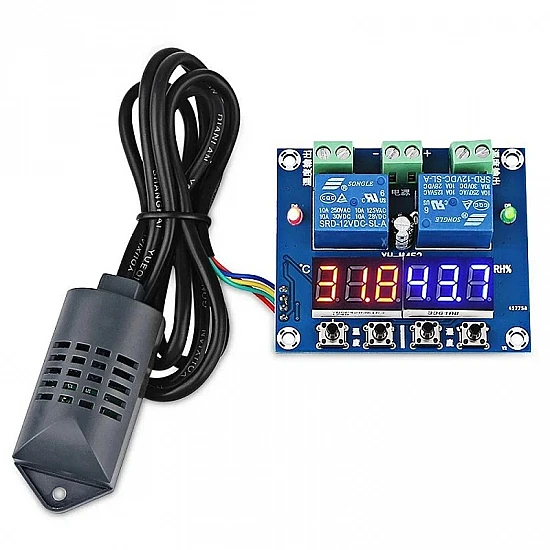

12V XH-M452 Temperature And Humidity Controller Module use an ST controller and a high-precision temperature sensor probe. It has a very High Accuracy Dual Output Automatic Constant Temperature And Humidity Control Board.
It can be embedded industrial equipment, convenient and fast. It can be used for hatch control, equipment cabinet, air conditioning system, temperature control protection, etc.
- Setting the start temperature:
- Long press the + key, start the flashing temperature, set start temperature by + / – key
- Setting the temperature + :
- Normal display mode, long-press the + key for 3 seconds, start temperature numerical flashing, press the + / – key setting values, the wrong operation after 5 seconds, automatically return to detect temperature display
- Setting the temperature – :
- Normal display mode, long press – button for 3 seconds, stop numerical flashing temperature, press the + / – key set value
- Restore the Factory Settings:
- At the same time long press temperature, and humidity + key for 3 seconds, digital display, 888, 888
- Setting Stop temperature:
- long press – button, stop flashing temperature, set stop temperature by + / – key
- Set to start humidity:
- long-press the + key, start the humidity value flashing, set by + / – key launch humidity value
- Set stop humidity:
- long press – to stop humidity value, set by + / – the key to stopping the humidity value
- Test probe：Integrated sensor
- Good performance and accuracy.
- Simple panel control,
- wide temperature range, simple design,
- elegant appearance,
- high mechanical strength.
1 x 12V DC XH-M452 Temperature and Humidity Controller Module With sensor
0% to 100%RH
up to 10A
|Temperature measuring range|
-40 ~ 120 °C
