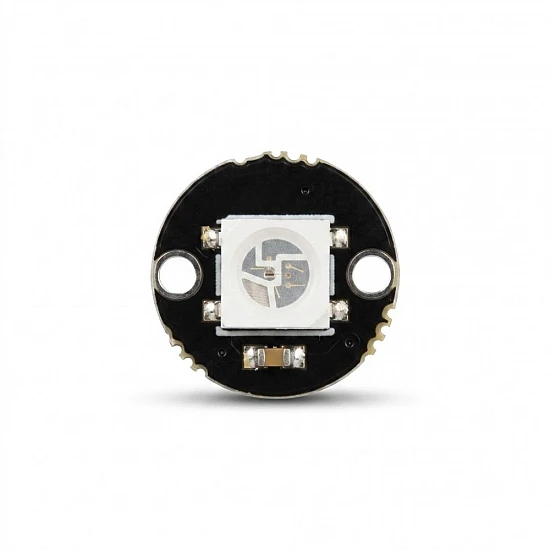

1-Bit WS2812B 5050 RGB LED Breakout Board

The 1-Bit WS2812B 5050 RGB LED Breakout Board is an ultra-compact, single-pixel addressable RGB LED module designed for makers, students, and engineers. Featuring the highly popular WS2812B intelligent control LED light source, it integrates the control circuit and RGB chip directly into a 5050 SMD package. Operating at 5V, this module allows you to control the color and brightness of the LED using just a single digital pin from your microcontroller, making it an efficient solution for adding vibrant visual indicators to space-constrained projects.

This versatile single-bit RGB module is fully compatible with popular development platforms including Arduino, ESP32, ESP8266, Raspberry Pi, and STM32. It is widely used in DIY wearable electronics, custom status indicators, IoT smart home devices, and decorative lighting setups. Thanks to its cascade-ready design, multiple boards can be daisy-chained together by connecting the Data Out (DO) pin of one module to the Data In (DI) pin of the next, allowing you to build custom LED matrices or strings with ease.

Features:

• Addressable RGB LED: Built-in WS2812B driver IC inside a high-brightness 5050 SMD LED.
• Single-Wire Control: Uses a single digital I/O pin for data transmission, saving valuable microcontroller pins.
• Vibrant Color Output: Supports 256 brightness levels per color, resulting in a full 24-bit color depth (16 million colors).

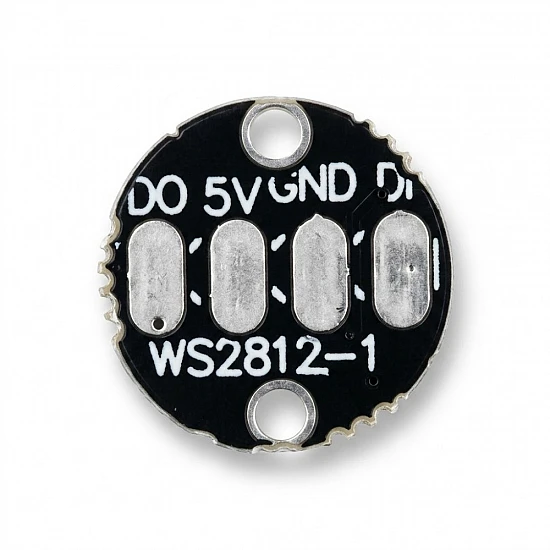

• Daisy-Chainable Design: Features dedicated Data Input (DI) and Data Output (DO) pads for cascading multiple pixels.
• Ultra-Compact Footprint: Lightweight and small circular PCB design, perfect for wearable tech and miniature prototypes.
• Wide Compatibility: Works seamlessly with standard NeoPixel libraries for Arduino, ESP32, and Raspberry Pi.

Package Includes:

1 x 1-Bit WS2812B 5050 RGB LED Breakout Board
