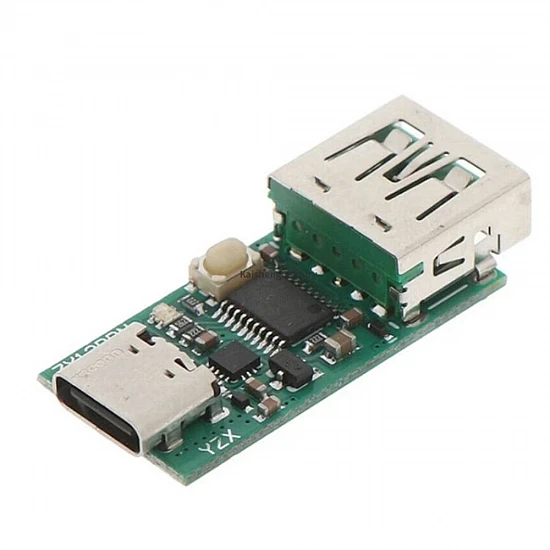

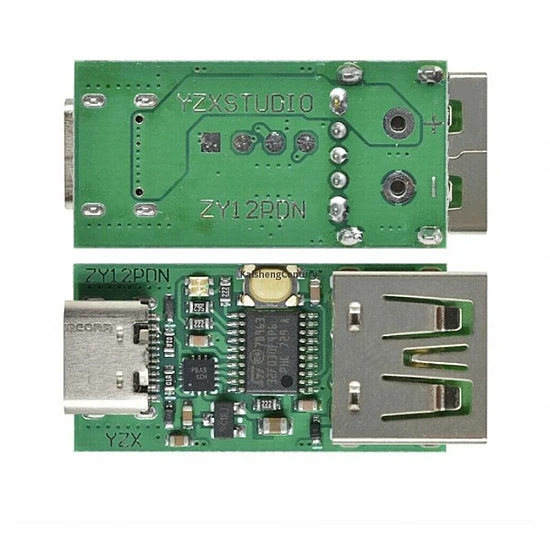

ZY12PDN USB-C PD 2.0 3.0 to DC Trigger Board with USB Port

The ZY12PDN USB-C PD 2.0 3.0 to DC Decoy Trigger Board is a highly efficient power negotiation module designed for makers, engineers, and hardware developers. This compact board allows you to trick or "decoy" a standard USB Power Delivery (PD) charger or power bank into outputting specific high-voltage DC rails (5V, 9V, 12V, 15V, or 20V) instead of the default 5V. It serves as an incredibly convenient tool to repurpose modern USB-C PD power adapters to run legacy DC-powered hardware, eliminating the need for bulky dedicated power bricks.

Equipped with a high-quality USB Type-C female input port and a robust USB Type-A female output port, this module can deliver up to 100W of power (20V at 5A) depending on your power source's capabilities. An onboard tactile switch allows you to cycle through the available voltage profiles easily, while an integrated multi-color LED provides instant visual feedback on the currently selected voltage level. It is perfect for powering laptops, wireless routers, TS100/TS101 soldering irons, IP cameras, and custom microcontroller projects directly from a portable PD power bank.

Features:

• Full PD Support: Fully compatible with USB Power Delivery 2.0 and 3.0 specifications.
• Onboard Voltage Selection: Features a tactile button to cycle through 5V, 9V, 12V, 15V, and 20V output modes.
• Multi-Color LED Indicator: Built-in LED changes color to represent the active negotiated voltage profile.
• High Power Capacity: Supports up to 100W (20V @ 5A) output for demanding applications like laptop charging.
• Dual Interface Design: Features a USB-C female input and a high-current USB-A female output for versatile connectivity.
• Ultra-Compact & Lightweight: Weighing only 4 grams, it is perfect for embedding into portable enclosures and DIY projects.

Package Includes:

1 x ZY12PDN USB-C PD 2.0 3.0 to DC Trigger Board with USB Port
