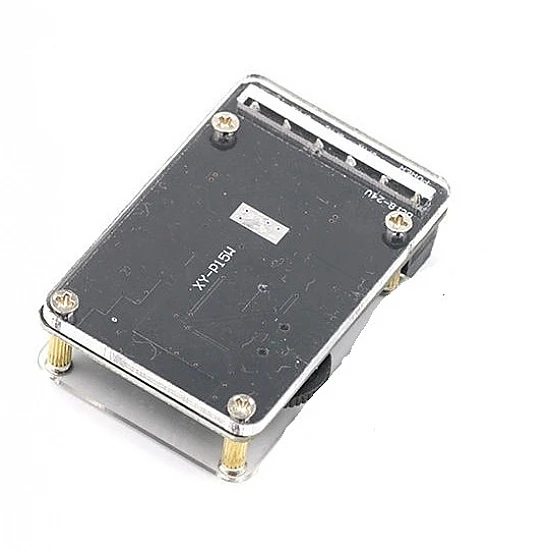

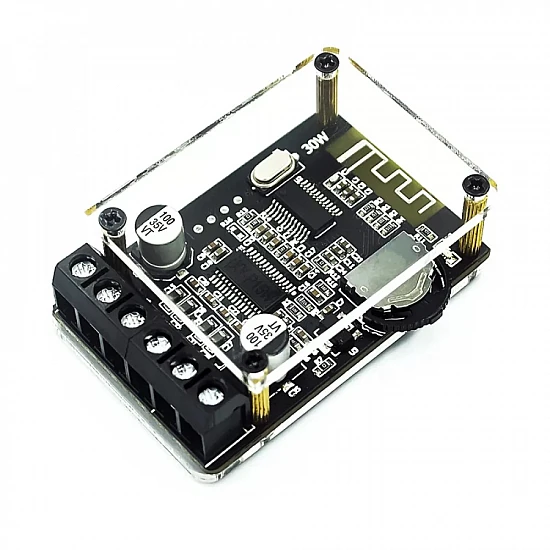

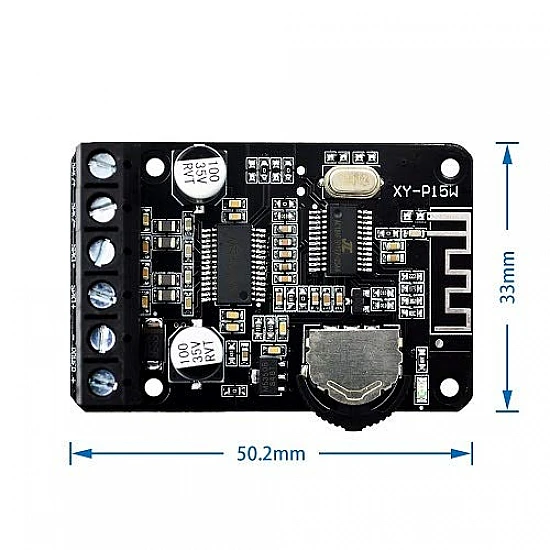

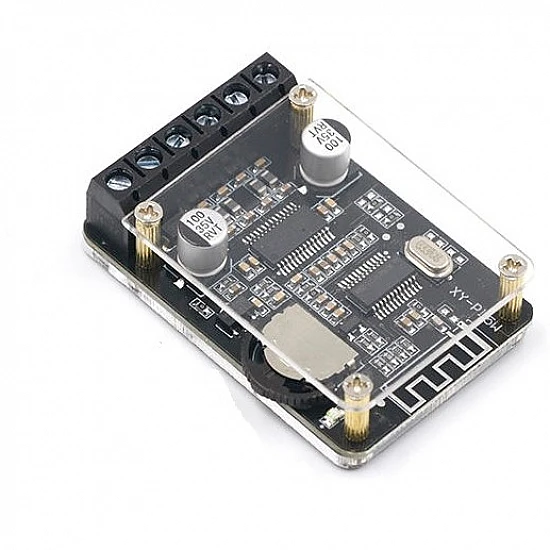

XY-P15W Stereo Bluetooth 5.0 Power Amplifier Board with Acrylic Sheet

XY-P15W Stereo Bluetooth Power Amplifier Board is a dual-channel audio signal that can directly connect to the loudspeaker as it has an inbuilt Amplifier Module. It is ideal for DIY wireless Bluetooth speakers and transponders.

Features:

• Model: XY-P15W
• It is applicable to multiple types of speakers.
• It has a knob adjustment function.
• It supports reverse connection protection and short circuit protection.
• It has self-recovery overheat protection.
• Applications: Modified speaker, Amplifier equipment, Vehicle Bluetooth device(car).

Specifications:

Output power(@1KHz):

• Output power 16W*2 at 12V 4ohm
• Output power 10W*2 at 12V 8ohm
• Output power 15W*2 at 16V 4ohm
• Output power 20W*2 at 20V 4ohm
• Output power 30W*2 at 24V 4ohm(Need add extra heat sink)

Speaker selected(30W~150W):

• 4ohm (8~12V supply)
• 8ohm (8~24V supply)
• 16ohm (8~24V supply)

Package Includes:

1 x XY-P15W Stereo Bluetooth Power Amplifier Board  with Acrylic Sheet
