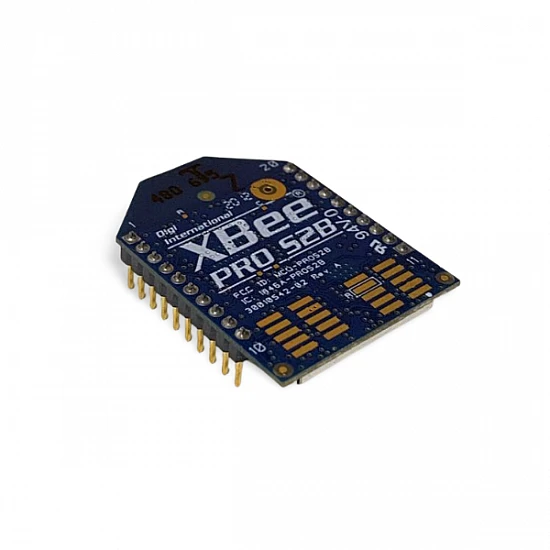

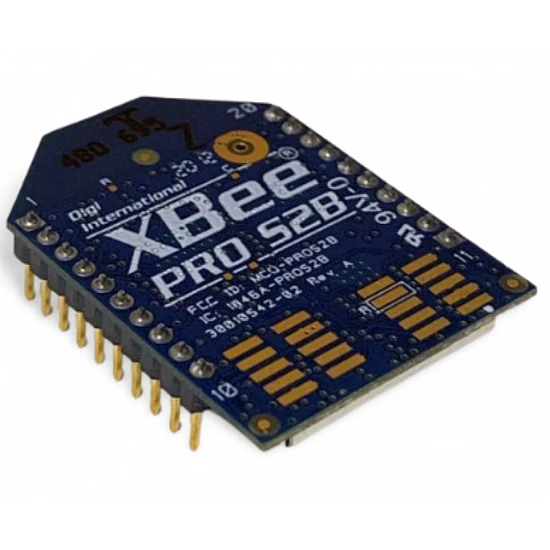

This is the XBee Pro S2B module from Digi. The new Series 2B improves upon the power output and data protocol of the Pro Series2. Series 2B modules allow you to create complex mesh networks based on the XBee ZB ZigBee mesh firmware. These modules allow a very reliable and simple communication between microcontrollers, computers, systems, really anything with a serial port! Point to point and multi-point networks are supported.

Series 2B modules use a different hardware configuration from the earlier models and while they will communicate with Series 2 XBee modules, they are not compatible with the outdated Series 2.5 Modules.

Features:

  • 3.3V @ 295mA
  • 250kbps Max data rate
  • 63mW (18dBm)
  • Fully FCC certified
  • 6 10-bit ADC input pins
  • 8 digital IO pins
  • 128-bit encryption
  • Local or over-air configuration
  • AT or API command set

Package Includes :

1 x XBee Zigbee 802.15.4 2mW S2B Module without Antenna

Technical
ADC Channels

(4) 10-bit ADC inputs
Channels

16
Communication Interface

CMOS UART, SPI
Data Rate

RF 250 Kbps, Serial up to 1 Mbps
Digital I/O Pins

15
Encryption

128-bit AES
Frequency

2.4GHz (ISM Band)
Protocol

Zigbee®
RATED INDOOR/URBAN RANGE

60 m
RATED OUTDOOR/RF LINE-OF-SIGHT RANGE

1200 m
RF Standard

802.15.4
Supply Voltage

2.1 ~ 3.6 VDC
Transmit Power

3.1mW (+5 dBm)
