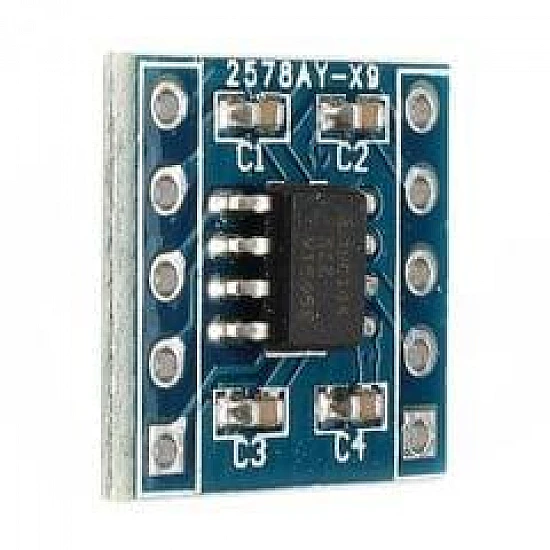

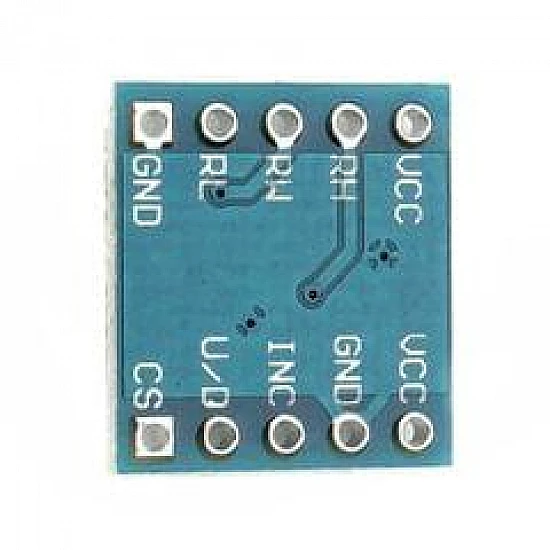

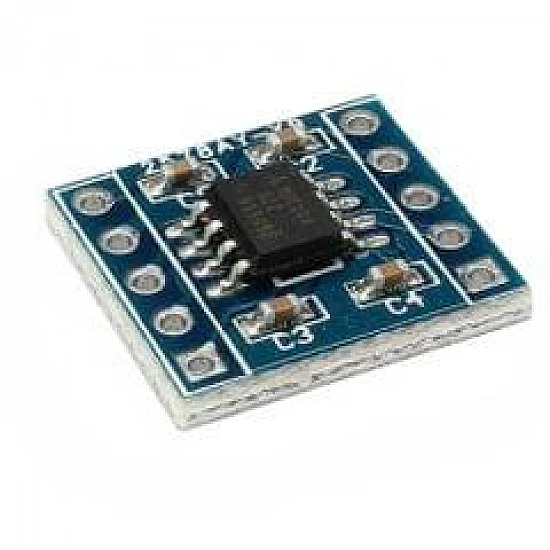

The X9C104 digital potentiometer module helps you simulate the mechanical control of a potentiometer. The integrated circuit contains 99 series-related resistors. With a microcontroller, you can control the module and select the place where the center pin of the "potentiometer" is connected, anywhere in the 100 points available (at the ends of the group or between the resistors).
The X9C104 potentiometer consists of inserting a hundred resistors with a 1K ohm value. With the pins we can select the number of resistors we want, so we can digitally vary the resistance of the potentiometer. The device dissipates a power of 10 mW and supports resistors with a maximum current of 4.4 mA.
This module has varied applications, can be used as a resistive divider, variable resistance, these are used in different schemes with operational amplifiers or other analog circuits.
- Logic supply voltage: 5 V
- Supply voltage resistors: ± 5 V
- Maximum current resistance: 4.4 m
- Power dissipation: 10 mW
- Resistance: 100 k
- Resistance accuracy: 20%
1 x X9C104S Digital Potentiometer Module.
