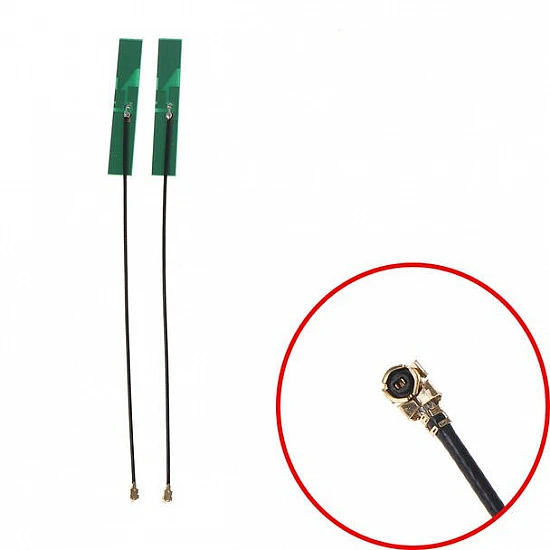

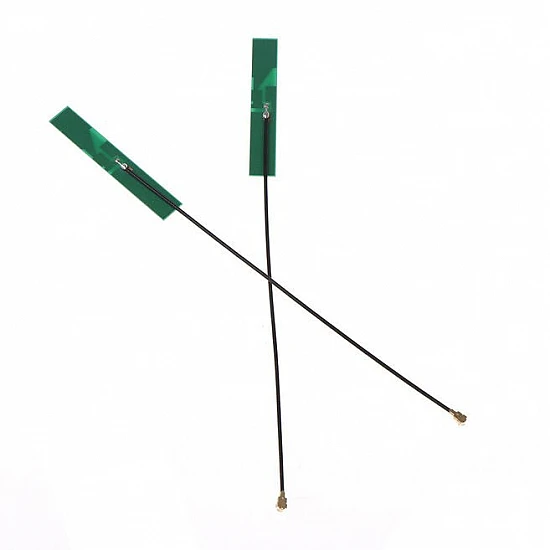

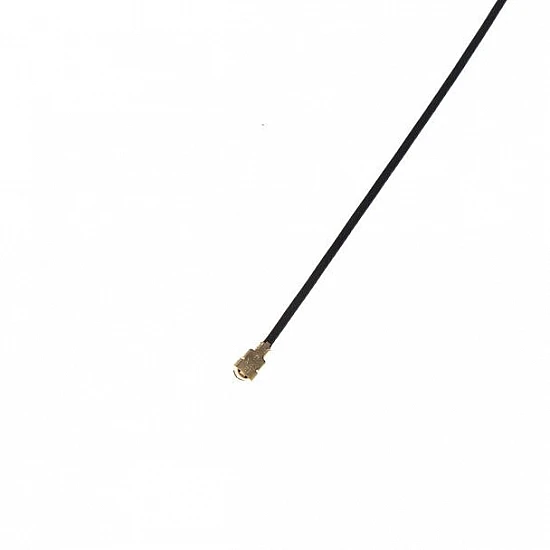

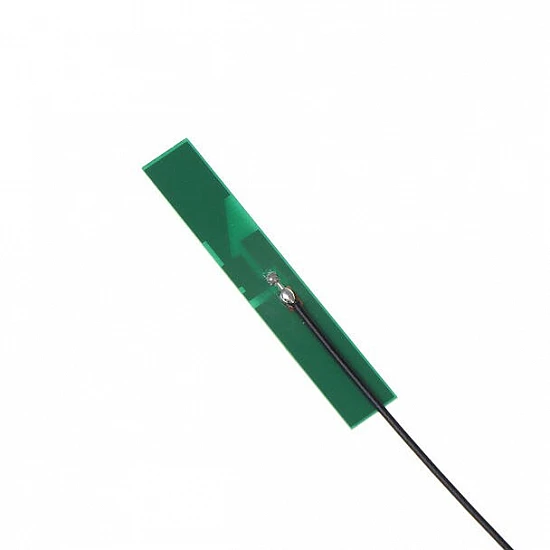

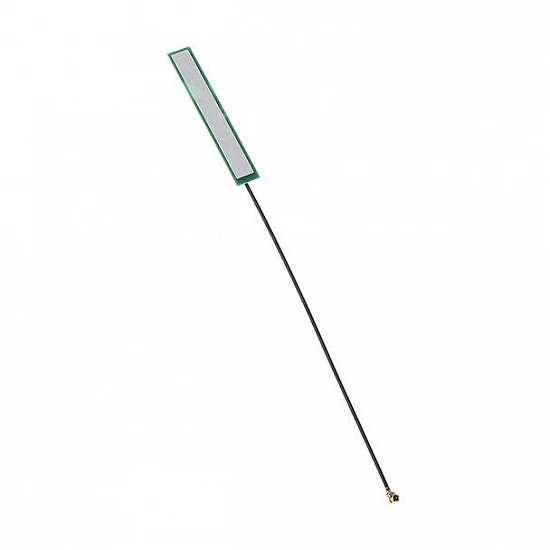

WIFI 2.4G 4dbi PCB Board Antenna

WIFI 2.4G 4dbi PCB Board Antenna
WIFI 2.4G 4dbi PCB Board Antenna
WIFI 2.4G 4dbi PCB Board Antenna
WIFI 2.4G 4dbi PCB Board Antenna
WIFI 2.4G 4dbi PCB Board Antenna
WIFI 2.4G 4dbi PCB Board Antenna
WIFI 2.4G 4dbi PCB Board Antenna
WIFI 2.4G 4dbi PCB Board Antenna
WIFI 2.4G 4dbi PCB Board Antenna
WIFI 2.4G 4dbi PCB Board Antenna

WIFI 2.4G 4dbi PCB Board Antenna
₹65

(inc GST)

  • Stock: In Stock
  • SKU: FR-01-997

This is a WIFI 2.4G 4dbi PCB Board Antenna.

Features:

  • Frequency 2400 ~ 2500 MHz
  • S.W.R. <= 2.0
  • Antenna Gain 3.0 ± 0.7dBi
  • Polarization Linear
  • Impedance 50 Ohm

Specifications:

  • The material of Radiator PCB
  • Cable Type O.D. 1.13 mm // 100 mm
  • Connector Type Mini Connector
  • Pull Test >= 1.0 Kg
  • Environmental:
  • Operation Temperature - 40 °C ~ + 65 °C
  • Storage Temperature - 40 °C ~ + 80 °C

Application:

  • IEEE 802.11 b/g/n WLAN System
  • Wireless Communication System
  • Wi-Fi / WiMAX / MIMO System
  • Laptop/Bluetooth/Zigbee Antenna

Package Includes:

1 x WIFI 2.4G 4dbi PCB Board Antenna.
