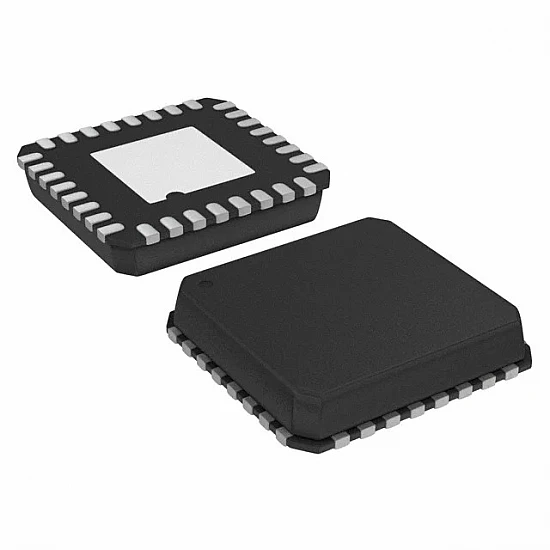

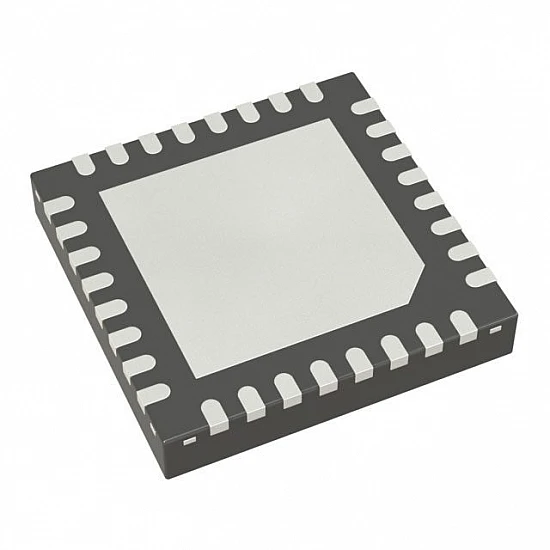

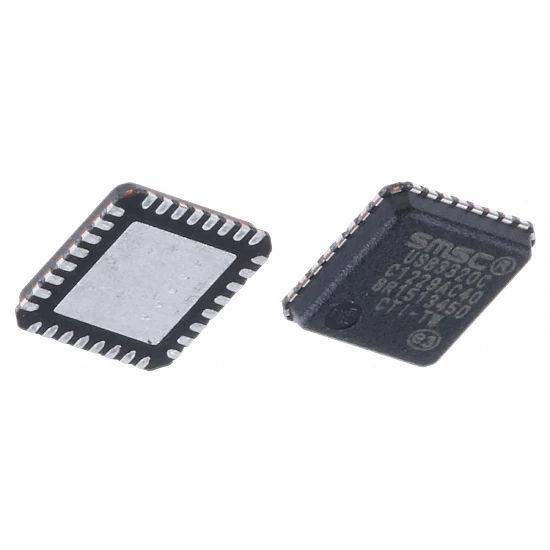

USB3320C-EZK-TR High-Speed USB 2.0 ULPI Transceiver QFN-32

The USB3320C-EZK-TR is a highly integrated, full-featured High-Speed USB 2.0 transceiver designed to provide a small-footprint PHY solution for portable consumer electronics and industrial equipment. Utilizing the industry-standard ULPI interface, it seamlessly connects USB Link layers (MCUs/FPGAs) to the USB bus while supporting data rates up to 480 Mbps. A standout feature is Microchip's flexPWR® technology, which ensures extremely low power consumption and features a dedicated sleep mode for battery preservation. The chip also integrates a high-quality USB switch, allowing a single connector to handle data, battery charging, and analog audio accessories simultaneously. With built-in ±15kV ESD protection and 30V VBUS over-voltage protection, the USB3320C provides a robust, low-eBOM solution for high-reliability networking, medical, and mobile applications.

Features:

• High-Speed USB 2.0: Supports 480Mbps HS, 12Mbps FS, and 1.5Mbps LS data rates.
• Integrated USB Switch: Enables single-port connection for data, audio, and battery charging.
• Robust System Protection: Integrated ±15kV IEC air discharge ESD protection and 30V OVP on VBUS.
• Advanced Power Management: flexPWR technology with low-current Sleep mode and 1.8V-3.3V IO support.
• Clock Flexibility: User-selectable reference frequencies (12MHz to 60MHz) via pin strapping.
• OTG 2.0 Support: Fully compliant with Host Negotiation (HNP) and Session Request (SRP) protocols.

Package Includes:

1 x USB3320C-EZK-TR High-Speed USB 2.0 ULPI Transceiver QFN-32
