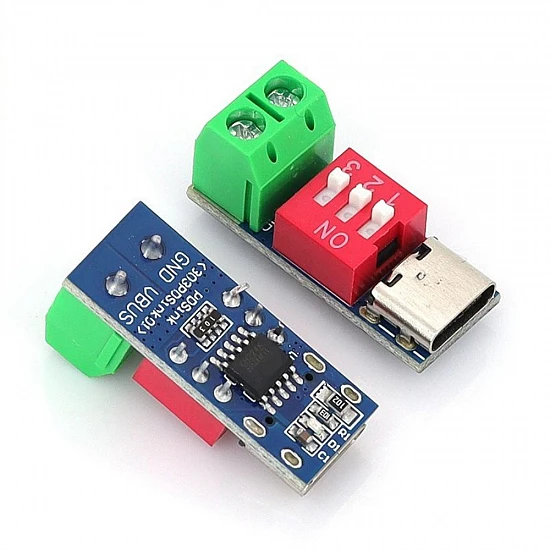

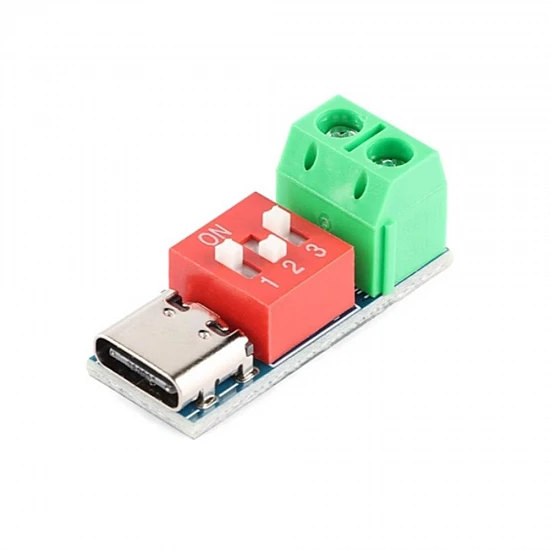

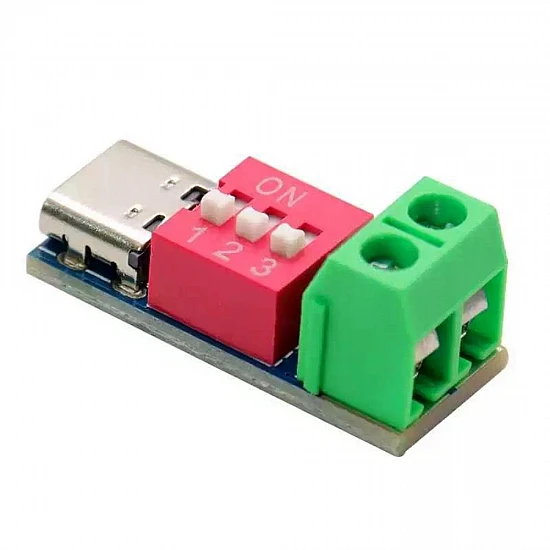

USB-C PD QC Fast Charge Decoy Trigger Board 5V-20V

The USB-C PD QC Fast Charge Decoy Trigger Board is an essential tool for makers, engineers, and hobbyists looking to harness the power of modern USB Power Delivery (PD) and Quick Charge (QC) chargers. This compact module acts as a decoy trigger, negotiating with your fast-charging power adapter or power bank to output specific voltages including 5V, 9V, 12V, 15V, or 20V. It effectively solves the challenge of powering non-USB hardware, DIY projects, and microcontrollers directly from a single high-power USB-C source.

Equipped with a user-friendly 3-position DIP switch, setting your desired output voltage is quick and hardware-defined, eliminating the need for complex programming. The board features a robust USB Type-C male connector on the input side and a heavy-duty 2-pin screw terminal on the output side, ensuring secure, low-resistance connections for high-current applications. It is highly compatible with PD 2.0/3.0 and QC 2.0/3.0 protocols, making it perfect for powering wireless routers, IP cameras, TS100 soldering irons, LED strips, and various development boards.

Features:

• Multi-Protocol Support: Fully compatible with USB Power Delivery (PD 2.0/3.0) and Quick Charge (QC 2.0/3.0) standards.
• Adjustable Voltage Output: Easily configure the output to 5V, 9V, 12V, 15V, or 20V using the onboard 3-position DIP switch.
• Convenient Interfaces: Features a standard USB Type-C male input and a secure 2-pin green screw terminal block for easy output wiring.

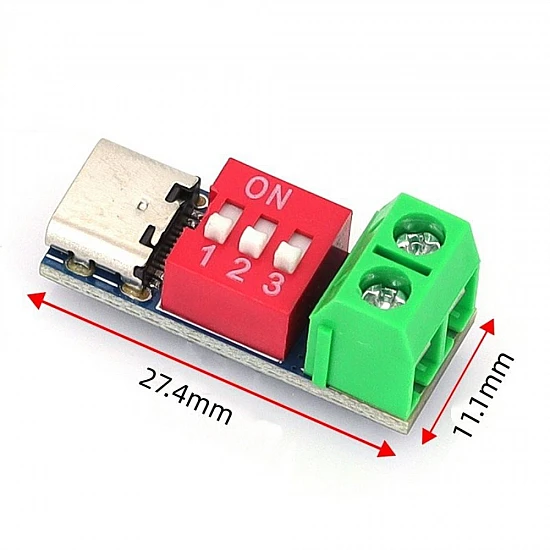

• Ultra-Compact & Lightweight: Weighing just 3.6 grams, it is ideal for space-constrained embedded projects and portable enclosures.
• High Current Capability: Supports up to 5A output current, depending on the maximum rating of your USB-C power supply.
• Reliable Performance: Built with high-quality PCB materials to ensure stable voltage negotiation and minimal power loss.

Package Includes:

1 x USB-C PD QC Fast Charge Decoy Trigger Board 5V-20V
