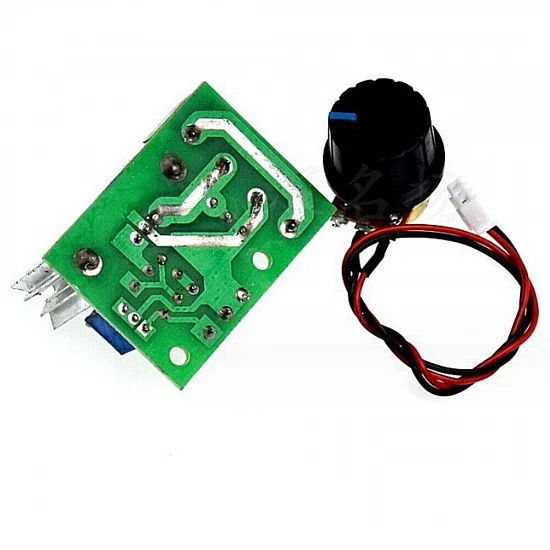

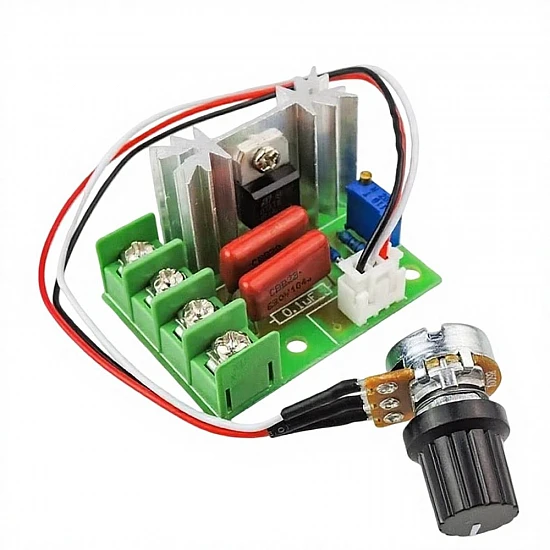

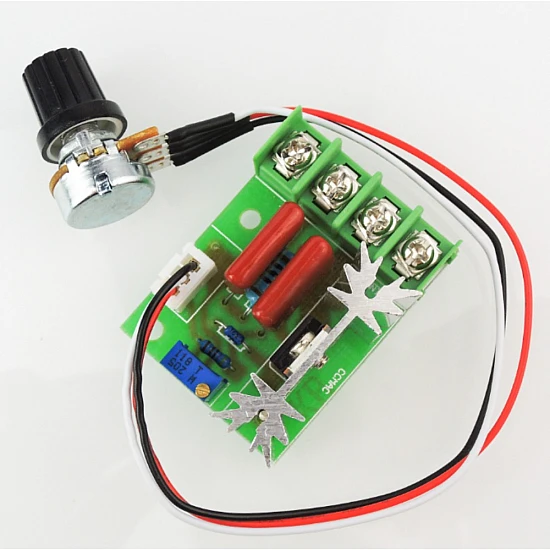

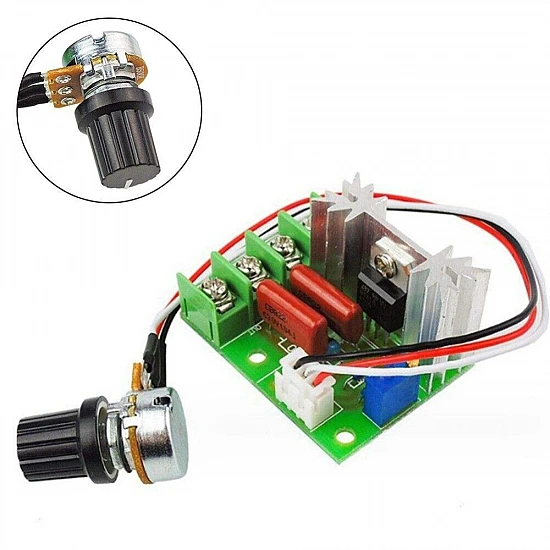

2000W SCR AC Voltage Regulator Motor Speed Controller

The 2000W SCR AC Voltage Regulator is a high-power electronic speed controller, dimmer, and temperature regulator designed for demanding AC loads. Utilizing an imported high-power bidirectional silicon-controlled rectifier (SCR), this module provides smooth and precise control over AC voltage. It is an ideal solution for makers, students, and engineers looking to regulate power to resistive loads like heating elements or control the speed of brushed AC motors.

This module features a convenient external potentiometer knob connected via a flexible cable, allowing for easy panel mounting in custom enclosures or project boxes. Equipped with high-voltage CBB capacitors, a multi-turn trimmer for fine-tuning the minimum output, and a heavy-duty aluminum heatsink, it ensures stable performance and efficient heat dissipation even under continuous operation. It is highly compatible with standard Indian 220V AC mains appliances, making it perfect for DIY home automation, industrial prototyping, and laboratory setups.

Features:

• High Power Capacity: Handles resistive loads up to 2000W, making it suitable for high-wattage appliances.
• External Potentiometer: Includes a flexible wire harness and rotary knob for convenient panel-mount installation.
• Wide Regulation Range: Smoothly adjusts output voltage from 50V to 220V AC.
• Robust Thermal Management: Integrated heavy-duty aluminum heatsink prevents overheating during high-current operations.
• Premium Components: Features high-quality CBB22 metalized film capacitors rated for high-voltage AC applications.
• Secure Connections: Equipped with robust 4-pin screw terminal blocks for safe and reliable high-voltage wiring.

Package Includes:

1 x 2000W SCR AC Voltage Regulator Module

1 x External Potentiometer with Cable and Knob
