USB 3.1 Type-C Male to Female Test PCB Board 24-Pin

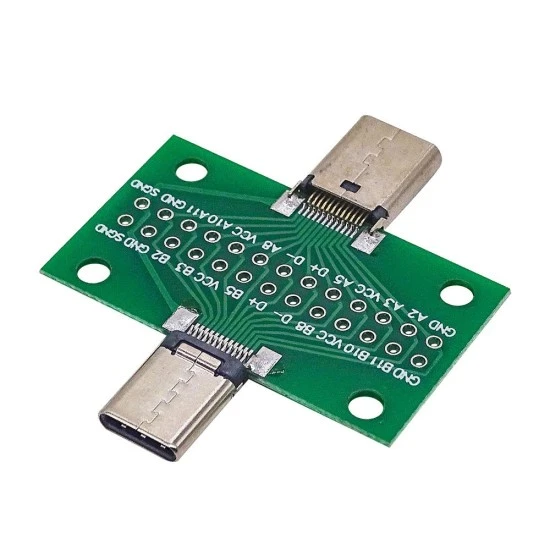

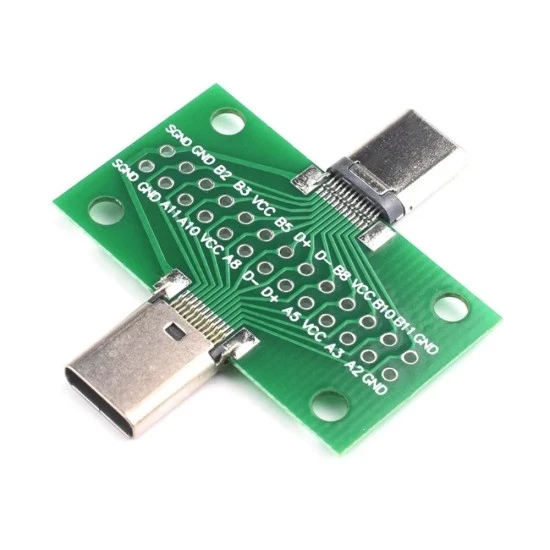

The USB 3.1 Type-C Male to Female Test Board is an indispensable diagnostic breakout adapter engineered for electronics engineers, hardware testers, and DIY makers working with modern USB-C interfaces. Featuring standard 24-pin Type-C male-to-female passthrough architecture with clearly labeled solder pads and test points (including VCC, GND, D+, D-, CC, SBU, and SuperSpeed lanes), this breakout module allows you to probe, test, debug, and monitor power delivery and high-speed data lines without stripping or damaging expensive USB cables. It provides a simple plug-and-play solution to verify continuity, inspect signal integrity, and test custom cable assemblies.

Designed with standard 2.54mm pitch breadboard-friendly holes and pre-drilled M3 mounting standoffs, this test board integrates smoothly into testing rigs, custom prototyping boards, and automated QA setups. Whether you are debugging USB Power Delivery (USB-PD) circuits, building embedded instrumentation with Arduino, ESP32, or Raspberry Pi, or measuring current draw across high-speed peripheral connections, this test adapter ensures low resistance, maximum stability, and effortless multimeter or oscilloscope probe attachment.

Features:

• Full 24-Pin Passthrough: Directly links Type-C male to female connectors with access to all standard USB 3.1 / Type-C lines.
• Clearly Labeled Pinout: Features silk-screened markings for VCC, GND, D+, D-, TX/RX differential pairs, and control lines for quick oscilloscope and multimeter probing.
• Dual Reversible Testing: Inspect reversible orientation behavior, pull-up/pull-down CC resistor configurations, and Power Delivery negotiation.
• Standard 2.54mm Pitch Pads: Enables direct soldering of standard pin headers, jumper wires, or mounting straight onto breadboards.
• Robust PCB Build: High-grade FR-4 double-sided fiberglass board with gold-flashed contact fingers for low contact resistance and wear resistance.
• Mounting Holes: Equipped with corner mounting holes for rigid fixture integration in test benches and lab environments.

Package Includes:

1 x USB 3.1 Type-C Male to Female Test Board Breakout Module
