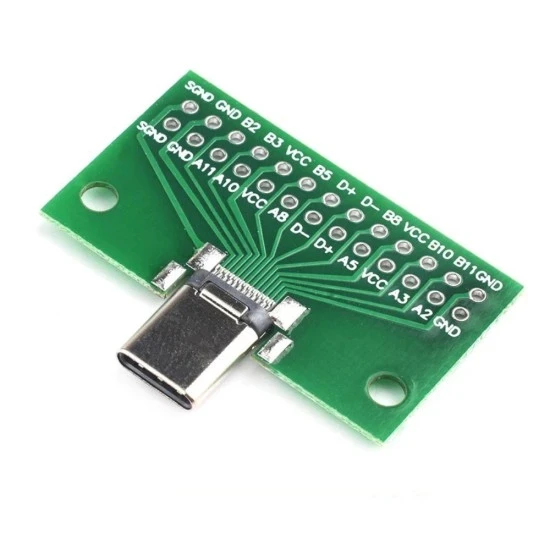

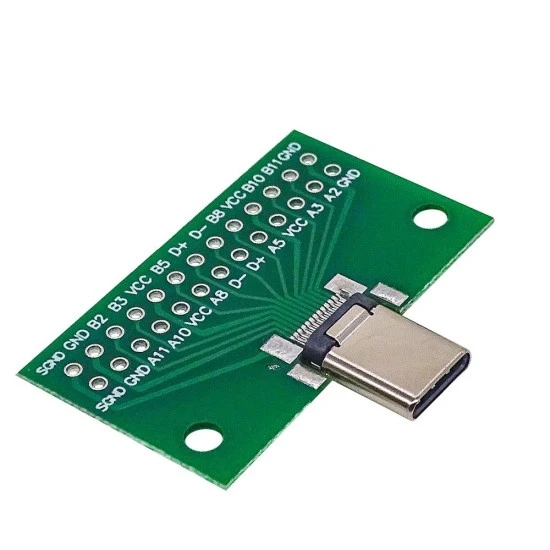

USB 3.1 Type-C Male 24-Pin Connector Breakout Test Board

The USB 3.1 Type-C Male 24-Pin Connector Breakout Test Board is a specialized testing and prototyping adapter tailored for hardware developers, technicians, and electronics enthusiasts working with high-speed USB-C hardware. This board breaks out all 24 pins of a standard USB Type-C male plug into easy-to-access through-hole test pads. It enables engineers to inspect signal integrity, analyze USB Power Delivery (USB-PD) profiles, verify CC line terminations, and troubleshoot continuity issues without dissecting factory-molded cables or surface-mount receptacles.

Built on high-durability FR-4 PCB material with clearly labeled silkscreen markings for each pin—including VCC, GND, D+, D-, TX/RX pairs, CC, and SBU lines—this breakout board simplifies testing with oscilloscopes, logic analyzers, and multimeters. It features standard 2.54mm pitch layout pads suitable for soldering pin headers or direct hook-up wire connections, making it an ideal companion for custom USB-C projects interfacing with development systems like Arduino, ESP32, STM32, and Raspberry Pi, as well as laboratory bench testing.

Features:

• Full 24-Pin Breakout: Provides direct access to every pin on the USB 3.1 Type-C male interface for comprehensive line testing.
• Clearly Silkscreened Pins: Clearly printed labels for VCC, GND, D+, D-, high-speed differential pairs, and control lines for rapid prototyping.
• Breadboard-Friendly 2.54mm Spacing: Standard header pitch supports quick soldering of male/female pins or direct probe attachment.
• Dual Mounting Holes: Integrated pre-drilled holes allow rigid mounting onto custom test fixtures or workbench panels.
• Durable Construction: Built with premium FR-4 PCB and secure surface-mount connector soldering to withstand repeated insertions.
• Versatile Application: Suitable for USB-PD trigger testing, data transfer verification, and custom cable assembly prototyping.

Package Includes:

1 x USB 3.1 Type-C Male 24-Pin Connector Breakout Test Board
