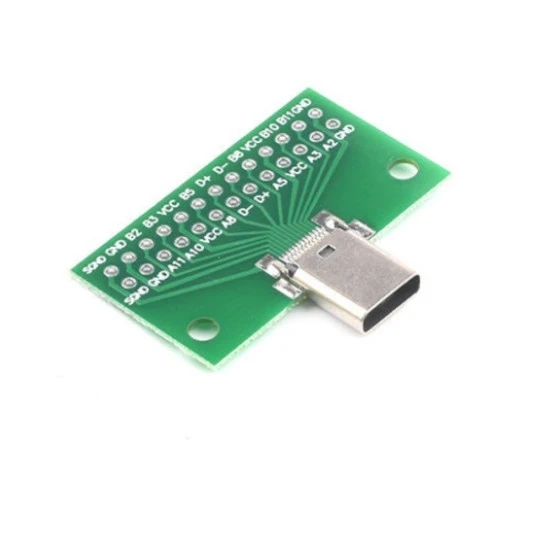

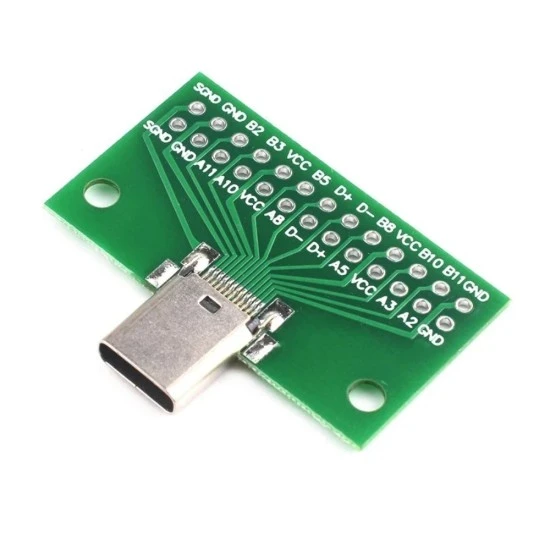

USB 3.1 Type-C Female 24-Pin Connector Breakout Test Board

The USB 3.1 Type-C Female 24-Pin Connector Breakout Test Board is an essential diagnostic and prototyping tool designed for electronics hardware engineers, technicians, and hobbyists developing Type-C compatible devices. This board exposes all 24 pins of a surface-mounted USB Type-C receptacle into clearly defined, through-hole solder test pads. It enables direct access to power, ground, high-speed differential pairs, configuration channels (CC1/CC2), and sideband use (SBU) lines without requiring microscopic probing or damaging connector housings.

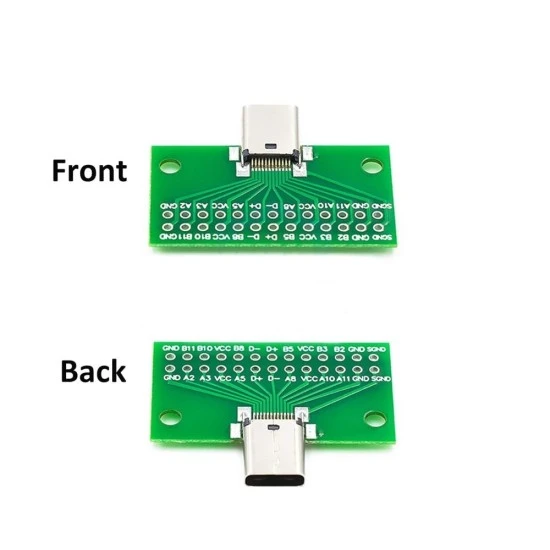

Built on robust FR-4 double-sided PCB substrate, each pin is labeled with clear silkscreen markings (such as VCC, GND, D+, D-, A-row, and B-row pins) for fast identification during oscilloscope analysis, logic debugging, and multimeter continuity checks. With standard 2.54mm pitch spacing, this breakout board easily accepts standard header pins or direct wire soldering, making it ideal for prototyping with Arduino, ESP32, STM32, and Raspberry Pi platforms, bench power measurements, and USB Power Delivery (USB-PD) validation.

Features:

• Comprehensive 24-Pin Breakout: Provides full access to all 24 signal, power, and ground connections of a USB Type-C female receptacle.
• Clearly Labeled Silkscreen: Detailed markings for VCC, GND, D+, D-, TX/RX differential lines, CC, and SBU pins for quick diagnosis.
• Standard 2.54mm Pitch: Compatible with standard header pins, jumper wires, and breadboard setups for effortless hookup.
• Secure Mounting Holes: Pre-drilled corner holes facilitate rigid fixture mounting in laboratory benches and automated testing jigs.
• Durable PCB Construction: Manufactured with high-grade FR-4 glass fiber and reinforced solder tabs for enhanced mechanical stability under repeated mating cycles.
• Wide Interfacing Capability: Suitable for verifying USB-PD negotiation, high-speed signal integrity, and custom peripheral breakout designs.

Package Includes:

1 x USB 3.1 Type-C Female 24-Pin Connector Breakout Test Board
