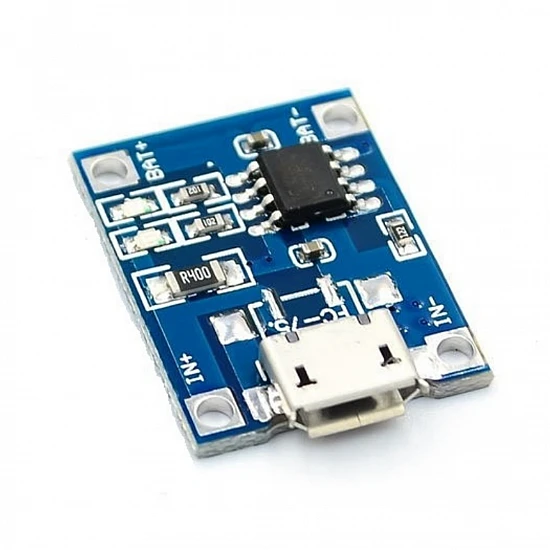

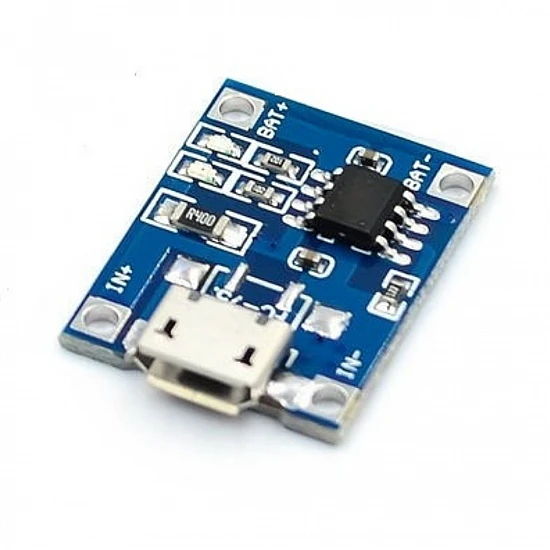

TP4056 1A Li-ion Lithium Battery Charging Module – Micro USB

TP4056 1A Li-ion Lithium Battery Charging Module – Micro USB
TP4056 1A Li-ion Lithium Battery Charging Module – Micro USB
TP4056 1A Li-ion Lithium Battery Charging Module – Micro USB
TP4056 1A Li-ion Lithium Battery Charging Module – Micro USB
TP4056 1A Li-ion Lithium Battery Charging Module – Micro USB
TP4056 1A Li-ion Lithium Battery Charging Module – Micro USB

TP4056 1A Li-ion Lithium Battery Charging Module – Micro USB
₹24

(inc GST)

  • Stock: In Stock
  • SKU: FR-07-442

The TP4056 1A Li-Ion Lithium Battery Charging Module – Micro  USB is a 3.7V lithium battery charger module that has an onboard Micro USB interface.

It can directly connect to the computer USB port for battery charging with Micro-USB onboard connector. If USB is not available you can use an external source voltage at IN+/IN- pads, great for DIY projects.

Features:

  • It is small in size and lightweight.
  • LED indicators for charging and full charging.
  • 1A (default), modify the onboard resistor to adjust the charging current.
  • Use TP4056 for simple peripheral circuits, good protection performance, and high charging accuracy.
  • The charging current can be adjusted by just changing the circuit board’s fixed resistors.
  • It can change the output to 100mA-1000mA, very conveniently.

Package Includes:

1 x TP4056 1A Li-ion Lithium Battery Charging Module – Micro USB.

Technical
Charging Method

Linear

Input Voltage

4.5V - 5.5V

Interface Type

Micro USB

Operating Temperature Range

-10°C to 85°C

Rated Power

4.2 W

Length

24 mm

Height

4 mm

Width

17 mm
