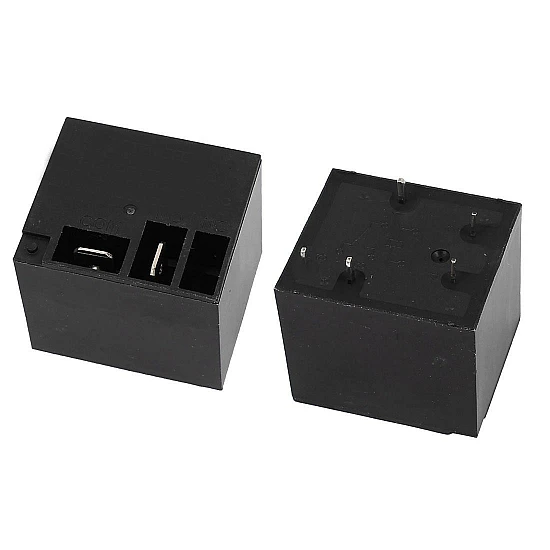

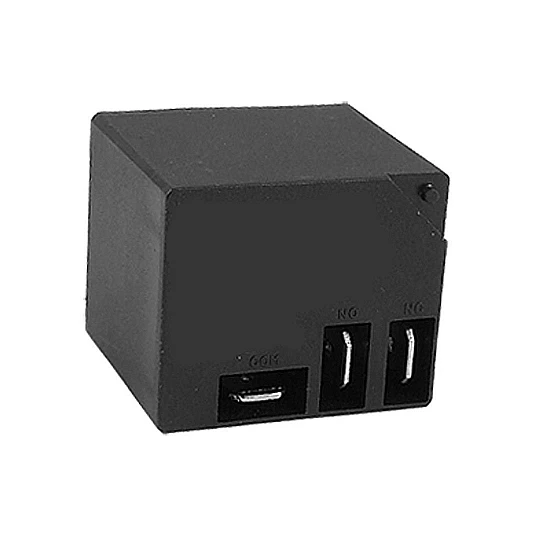

T91 12V 30A Cube Relay

T91 12V 30A Cube Relay
T91 12V 30A Cube Relay
T91 12V 30A Cube Relay
T91 12V 30A Cube Relay

T91 12V 30A Cube Relay
₹69

(inc GST)

  • Stock: In Stock
  • With this product you will receive ₹1 FlyRobo Cashback.
  • SKU: FR-05-355
Relay is an electromagnetic device that is used to isolate two circuits electrically and connect them magnetically. They are very useful devices and allow one circuit to switch to another one while they are completely separate. They are often used to interface an electronic circuit (working at a low voltage) to an electrical circuit that works at very high voltage.
These relays can be used for switching High voltage 250 Volt devices and has a current rating of up to 30 amperes. Ideal for use in your academic projects and for small device switching. Use them to switch high voltage (240AC), and/or high current devices(30A).

Features

  • low power consumption coil
  • PCB mounting
  • high quality

Applications

  • Instrumentation,
  • Medical Equipment,
  • Data loggers,
  • SMPS,
  • Vending Machines, Etc.

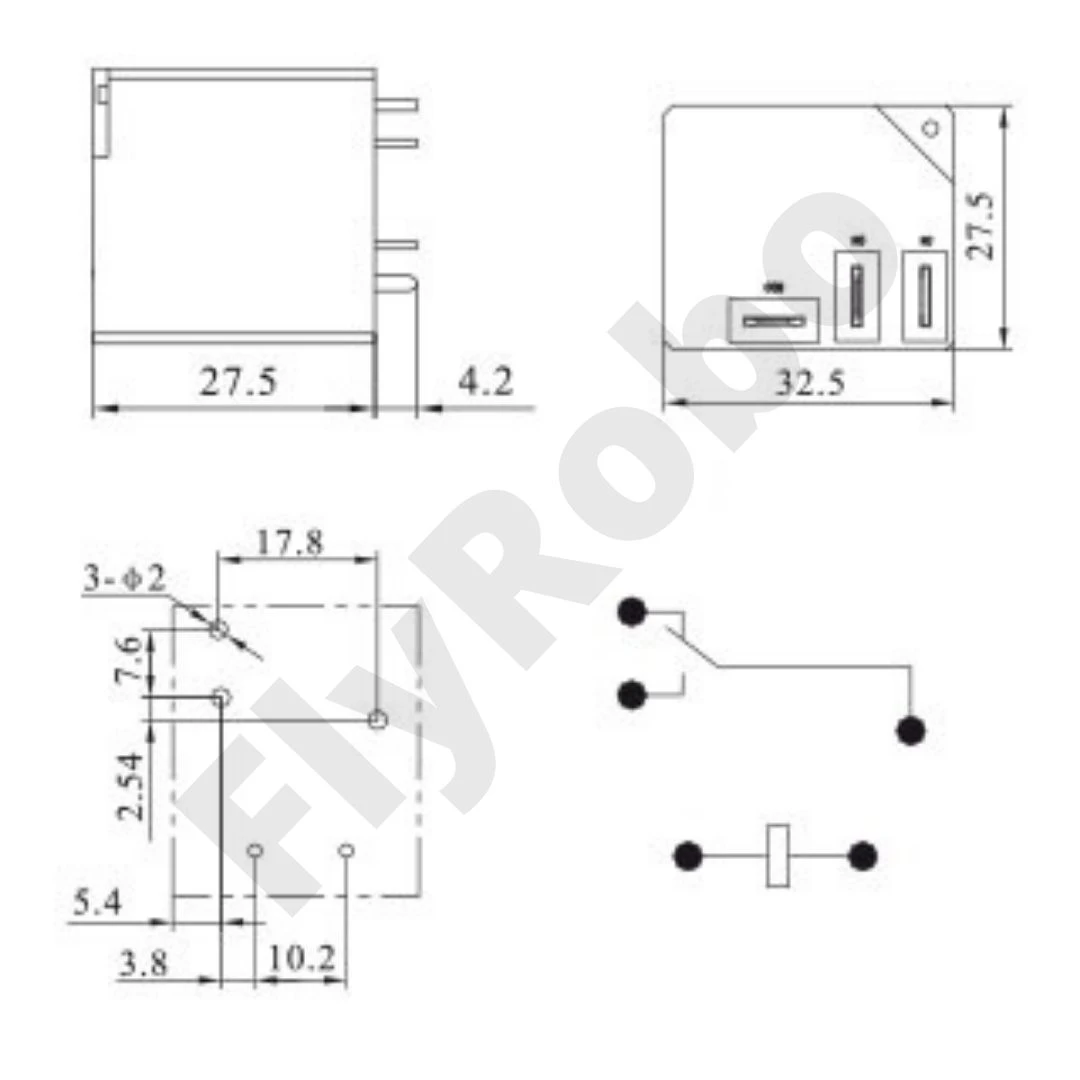

Pin OUT:


Package Includes

1 x T91 12V 30A Cube Relay

Technical
Model

T91

Coil Voltage

12V

Current

30 A

Frequency

50Hz, 60 Hz

Load

30A/20A 250VAC; 30A/20A 28VDC (rated)

No. of Pins

5

Questions1 Answers2 | Expand All
I cant find details about its pin diagram. How to connect it with arduino nano??
Hitarth
  • Dear sir,

    You will find the pinout diagram in the discription.

    If you want to use it with the Arduino then it might be not working with arduino because this relay operates with the 12v and Arduino will able to provide the maximum of 5v output. so the relay will not switch with the arduino.

    Note:  We have not tested it personally with Arduino.


    Here is the 5v relay module which will work properly with Arduino nano. Click here to view.

    https://www.flyrobo.in/5v_single_channel_relay_module



    FlyRobo[ 10/07/2021 ]
    Was this answer helpful?-2
When will delivered order?
Ajeet
  • Order will be delivered within 1-3 days in metro city, 3-5 days in other city and 4-7 days in villages or small city. This is the average time of delivery in express shipping. but can change with different locations and different situations.
    FlyRobo[ 16/07/2021 ]
    Was this answer helpful?-7
