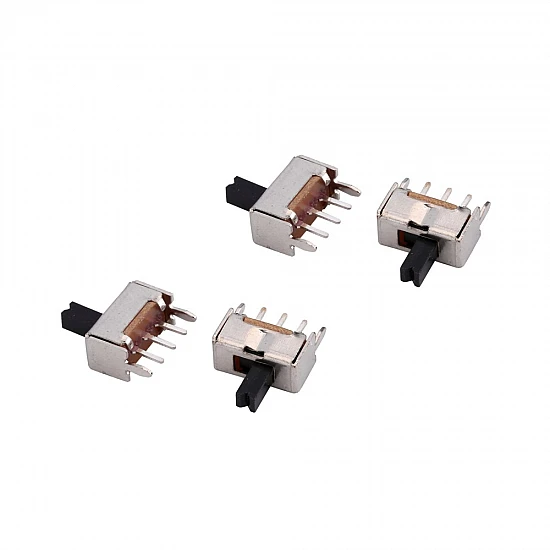

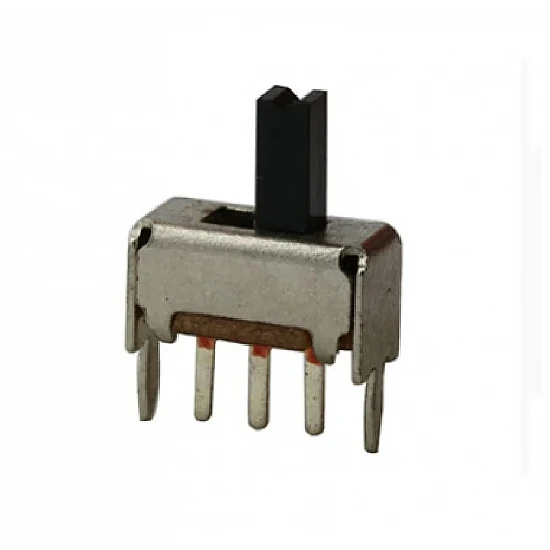

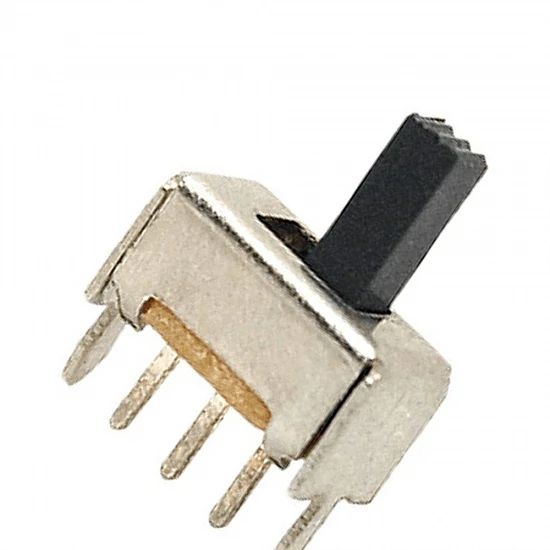

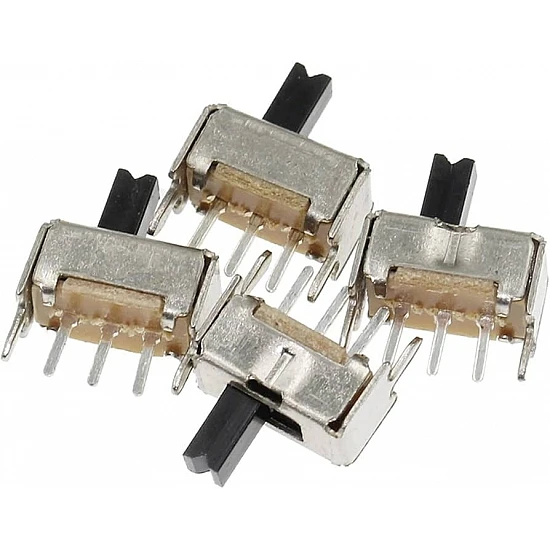

SS-12D07 1P2T 3-Pin Vertical Toggle Switch with Fixed Legs

The SS-12D07 is a high-quality, 3-pin vertical toggle switch designed for reliable performance in various electronic applications. This 1P2T (Single Pole Double Throw) switch features a 2-position sliding mechanism with a 2.0mm pitch, making it ideal for compact PCB layouts. The vertical design includes two additional fixed side legs for enhanced mechanical stability and durability once soldered. With a 4mm high V-shaped handle, it provides a tactile and easy-to-operate interface for power switching or signal selection in consumer electronics, DIY projects, and industrial prototypes. Engineered for longevity, this switch ensures consistent contact resistance and smooth actuation for all your switching needs.

Features:

• Robust Mechanical Stability: Features two fixed legs to provide extra support and prevent mounting fatigue on the PCB.
• Compact 1P2T Design: Single pole double throw configuration allows for versatile circuit switching in a small footprint.
• Standard 2.0mm Pitch: Compatible with standard prototyping boards and high-density PCB designs.
• Ergonomic V-Handle: The 4mm vertical handle ensures easy manual operation and clear tactile feedback.
• High Durability: Constructed with high-quality materials to ensure a long operational life across numerous cycles.

Package Includes:

1 x SS-12D07 2-Position Toggle Switch (V Handle)
