RC Aeroplane Kit ( Motor + ESC + Propeller + Servo + TX-RX)

RC Aeroplane Kit ( Motor + ESC + Propeller  + Servo + TX-RX)
RC Aeroplane Kit ( Motor + ESC + Propeller  + Servo + TX-RX)
RC Aeroplane Kit ( Motor + ESC + Propeller  + Servo + TX-RX)
RC Aeroplane Kit ( Motor + ESC + Propeller  + Servo + TX-RX)
RC Aeroplane Kit ( Motor + ESC + Propeller  + Servo + TX-RX)
RC Aeroplane Kit ( Motor + ESC + Propeller  + Servo + TX-RX)
-20 %
RC Aeroplane Kit ( Motor + ESC + Propeller  + Servo + TX-RX)
RC Aeroplane Kit ( Motor + ESC + Propeller  + Servo + TX-RX)
RC Aeroplane Kit ( Motor + ESC + Propeller  + Servo + TX-RX)
RC Aeroplane Kit ( Motor + ESC + Propeller  + Servo + TX-RX)
RC Aeroplane Kit ( Motor + ESC + Propeller  + Servo + TX-RX)
RC Aeroplane Kit ( Motor + ESC + Propeller  + Servo + TX-RX)

RC Aeroplane Kit ( Motor + ESC + Propeller + Servo + TX-RX)
₹4,399
₹5,499

(inc GST)

  • Stock: In Stock
  • With this product you will receive ₹43 FlyRobo Cashback.
  • SKU: FRC-02-680
7 Day Return
Replacement/Refund on this product
Free shipping
Get free shipping above ₹ 999
COD Available
Pay Cash at the time of Delivery
Support
Get After-sale Technical Support

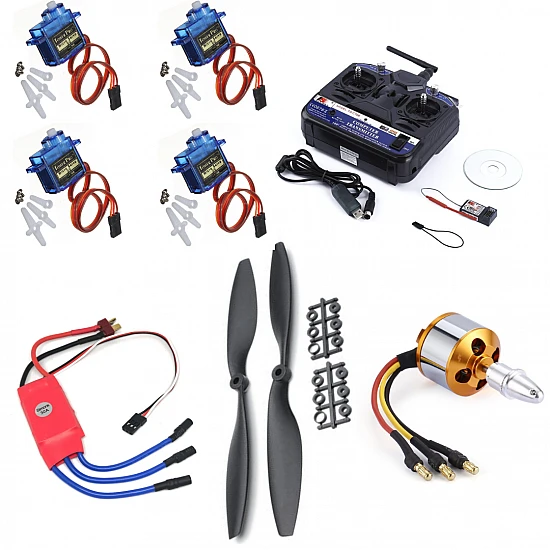

This RC Aeroplane Kit includes almost all parts for the basic RC Aeroplane with 6ch RX TX. It includes everything to make and fly your own RC Aeroplane. This Kit Provides a FlySky CT6B 6CH Transmitter with FS-R6B Receiver, 1000kv Brushless motor, 30A Simonk ESC, TowerPro SG90 Servo Motor, and a 1045 Propeller pair(CW+CCW).

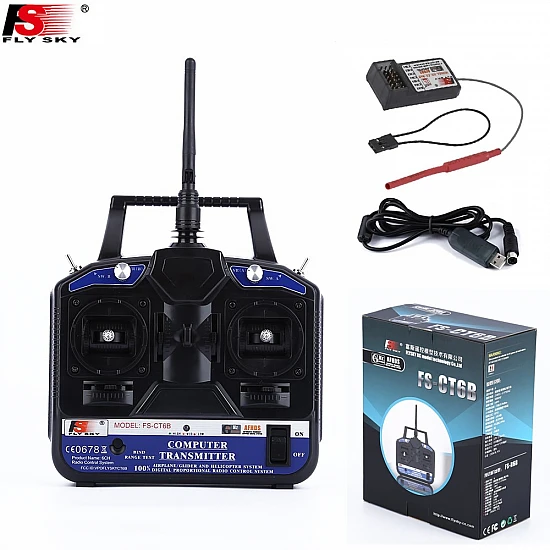

FlySky CT6B 6CH Transmitter with FS-R6B Receiver 2.4Ghz is the popular 6 Channel Radio CT6B manufactured by FlySky. CT6B FLYSKY 2.4GHZ 6CH TRANSMITTER is an entry-level 2.4 GHz radio system offering the reliability of 2.4 GHz signal technology and a receiver with 6 channels.

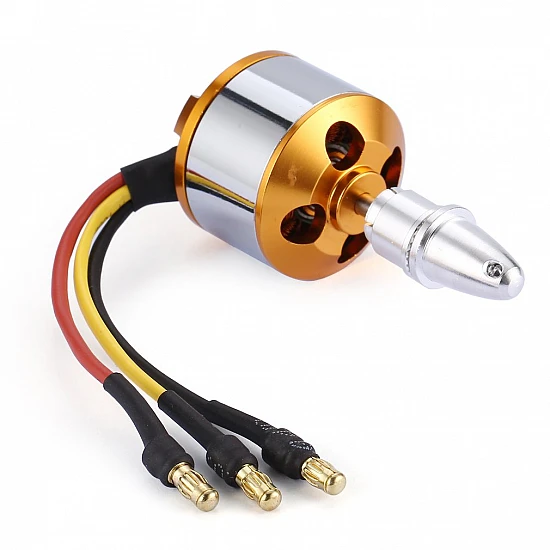

1000KV Brushless DC Motor is a brushless motor specifically made for RC planes, quadcopters, and multi-rotors. It is a 1000kV motor. It provides high performance, superpower, and brilliant efficiency.

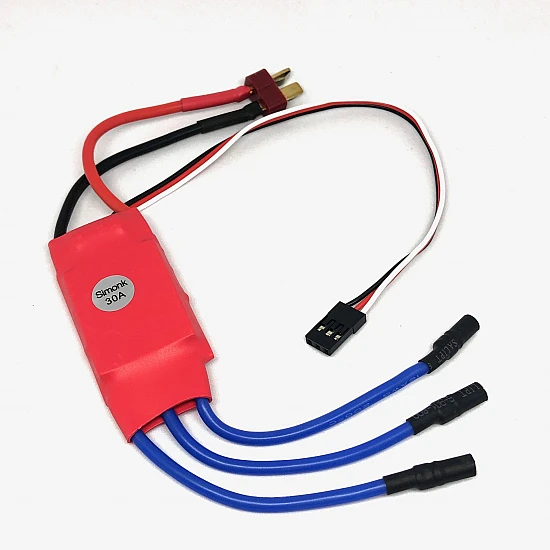

30A Simonk ESC Electronic Speed Controller can drive motors that consume up to 30A current. It can be used to control our brushless motors with a 2S-3S LiPo. The onboard BEC provides regulated 5V(2A max draw) to power the flight controller and other onboard modules.

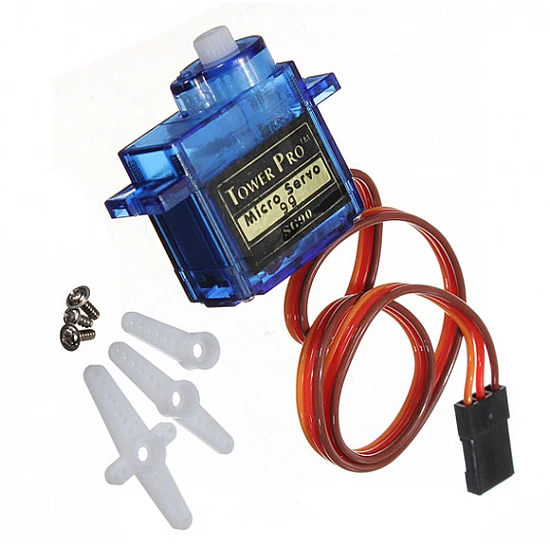

TowerPro SG90 Servo Motor is lightweight, high-quality, and lightning-fast. The servo is designed to work with almost all radio control systems. It is with excellent performance and high torque of 1.5 kg-cm gives you the freedom to use it for a variety of projects.

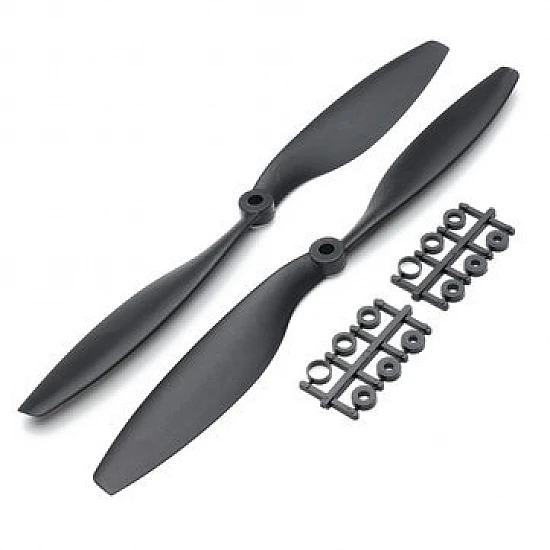

The 10x4.5 inch Propeller Pair (CW+CCW) is a set of counter-rotating RC aircraft propellers perfect for use in twin and multiple motor RC airplanes or coaxial RC helicopters.  The length is 10 inches and the pitch is 4.5 inches per revolution.

Package Includes:

1 x FLYSKY CT6B 6CH Remote Transmitter with Receiver

1 x A2212 1000KV Brushless Motor For RC Airplane / Quadcopter

1 x 30A Brushless ESC

1 x 1045 Propeller 10in 10x4.5 For Drone



4 x Tower Pro 9G Micro Servo Motor

Oximeter
Dimension

27.8x27 mm

ESC
BEC

2 A

Batteries

2-3 cells Li-Poly, OR 5-12 cells Ni-MH Ni-MH / Ni-Cd battery

Constant Current

30A (Max 40A less than 10 seconds)

Input Voltage

5.6V - 16.8V

Motor
Batteries

2-3 cell Li-Poly

Current Capacity

12A/60s

Max Efficiency

80%

Max Efficiency Current

4-10A (>75%)

Model

A2212

No Load Current

0.5A @10V

Shaft Diameter

3.17mm

Propeller
Length

10 inch

Pitch

4.5 inch

Servo Motor
Dimensions (LxWxH)

2.2 x 1.15 x 2.7 cm

Model

TOWER PRO 9G MICRO SERVO MOTOR

Operating Voltage

4.8 - 6 V

Transmitter And Receiver
Channels

6

Frequency Range

2.40 ~ 2.48 GHz

Model

FlySky FS-CT6B 6CH Radio Set System with RX FS-R6B receiver

Questions1 Answers4 | Expand All
When will delivered order?
Ajeet
  • Order will be delivered within 1-3 days in metro city, 3-5 days in other city and 4-7 days in villages or small city. This is the average time of delivery in express shipping. but can change with different locations and different situations.
    FlyRobo[ 16/07/2021 ]
    Was this answer helpful?51
Manual to make RC aeroplane
Is this an RC Aeroplane kit? Does this product have an instructions on how to assemble the kit and make an RC Aeroplane?
Kiruba
  • We have not written a manual but here is the video of making RC drone using APM 2.8 flight controller.

    Note: APM 2.8 is not compulsory to make an RC plane you can make it without an APM 2.8 flight controller but if you want to make it with APM 2.8 then you can purchase it from here. https://www.flyrobo.in/ardupilot_apm_2.8_flight_control_board_drone

    Here is the video.

    FlyRobo[ 27/01/2022 ]
    Was this answer helpful?0
is This kit have lipo battery?
M.guru
  • No, This kit does not include Battery.
    FlyRobo[ 14/10/2021 ]
    Was this answer helpful?0
How long is the flying distance sir? H
Kay
  • The flying distance of the drone depends on the control range of the transmitter and receiver.

    With this kit, you will get Flysky CT6B transmitter with a receiver, and approx control range is about 500 meters.

    Note: Range of flysky CT6B is not declared by Flysky official. it is based on the customer review on the internet.

    FlyRobo[ 13/09/2021 ]
    Was this answer helpful?-2
