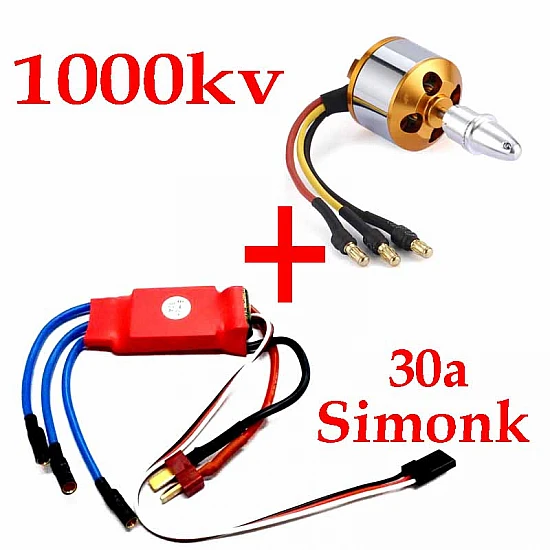

1000kv A2212 Brushless Motor with Simonk 30A ESC For RC Airplane / Quadcopter / Multirotor

Motor:

Specifications:

  • Model NO.:  A2212
  • Dimension: 27.8*27mm
  • Shaft diameter: 3.17mm
  • Max Efficiency: 80%
  • Max Efficiency Current: 4-10A (>75%)
  • Current Capacity: 12A/60s
  • No Load Current @ 10V: 0.5A
  • No. Of Cells: 2-3 Li-Poly
  • Weight: 65g
  • KV: 1000
  • Suitable for the propeller size: 1045, 1047,1060, 9050

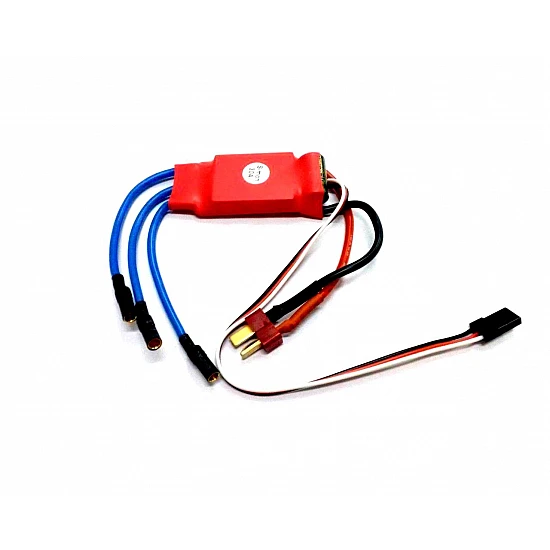

    ESC:

    Description:

    Item Name:30A SimonK Procedure Brushless ESC

    Input Voltage: (2-3S Lixx red)

    Drive Current: 30A (Max: 40A/10S)

    Size 50x23x8

    BEC:5V/3A

    Weight: 25g


    Features:

    1).This hardware, with the SimonK firmware, gives you the perfect solution for multirotor use;

    2).Highest efficiency 100% N-FET design;

    3).Highest accuracy with Crystal Oscillator (Temperature won't affect the PWM operating range like other cheap ESC's);

    4).No low voltage cut off, because any cutoff in a multirotor = crash;

    5).No over temp cutoff, because any cutoff in a multirotor = crash;

    6).Super high refresh rate, no buffering of the input signal, resulting in more than 490Hz response rate;

    7).16KHz motor frequency, giving fastest response of the motor, and quietest operation as well (no 8KHz squeal);

    8).Super simple, foolproof operation! Nothing to program other than the throttle range;

    9).It is suitable for rc helicopter and four axis plane.



    Pakacge Included:

    1 x  Simonk 30A Brushless ESC (with bullet connectors)
